Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LT 19A LT 19A, JLT19H48C, 954130078, 2002-09 > ENGINE
Back to

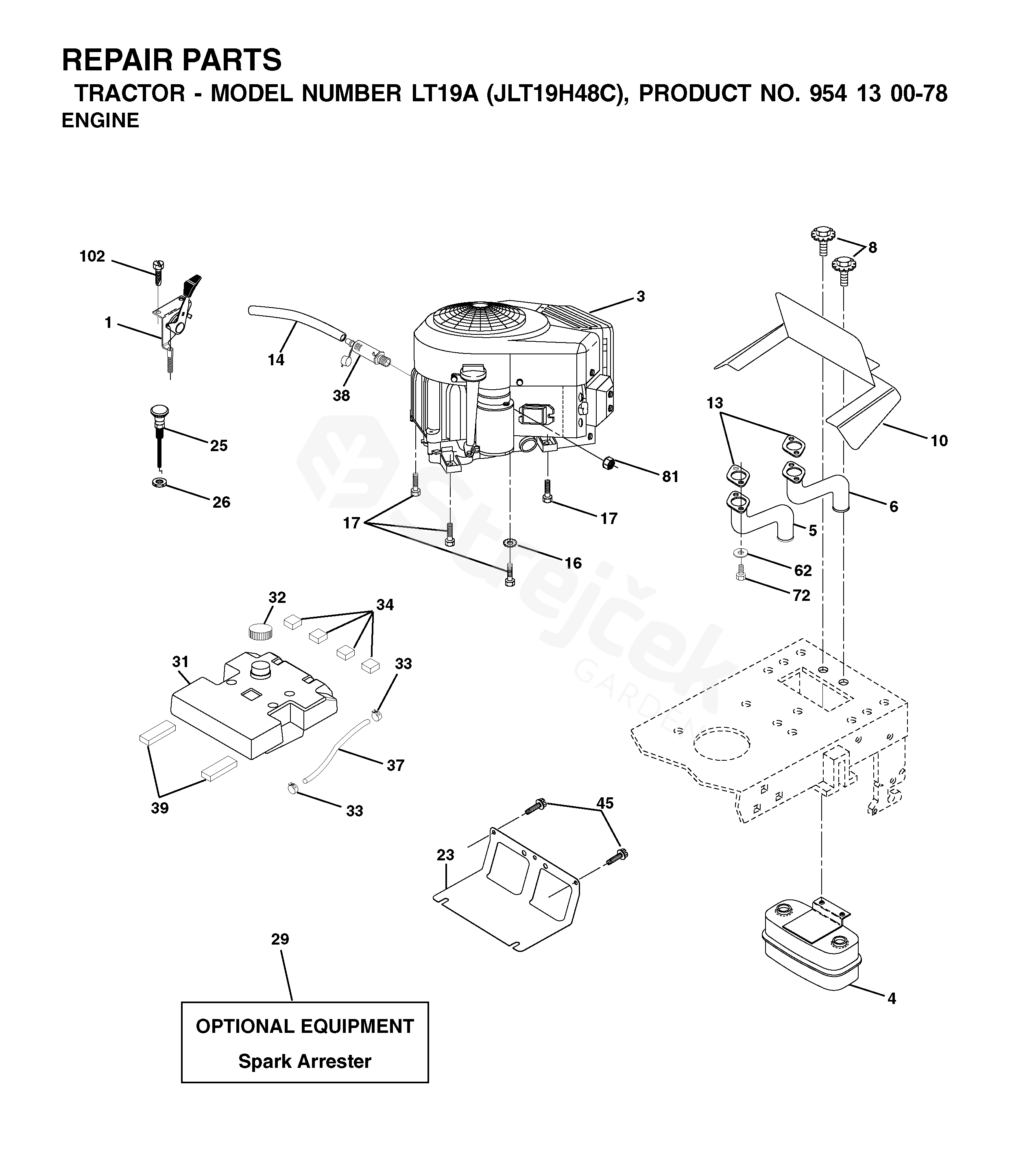

ENGINE
LT 19A LT 19A, JLT19H48C, 954130078, 2002-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LT 19A, JLT19H48C, 954130078, 2002-09
1 THROTTLE TRIGGER 532178385
4 MUFFLER 532149723
5 TUBE 532159955
6 TUBE 532160589
8 BOLT 532171877
10 SHIELD 532162797
13 GASKET 532165391
14 TRUBKA 532148456
16 PODLOŽKA 811050600
17 SCREW 817490624
23 HEAT SHIELD 532169837
25 CHOKE CONTROL 532178639
26 NUT 873920600
29 SPARK ARRESTER KIT 532137180
31 TANK 532157103
32 FUEL CAP 532140527
33 HADICOVÁ SVĚRKA 532123487
34 SPACER 532106082
37 FULE LINE 532142158
38 PLUG 532181654
39 PAD 532109227
45 SCREW 817000612
62 PODLOŽKA 810040500
72 BOLT 871070512
81 MATICE 873510400
102 SCREW 532171875
