Spare parts > Jonsered > TRIMMERS/EDGERS > GC2123 GC2123, 2010-03 > HANDLE & CONTROLS
Back to

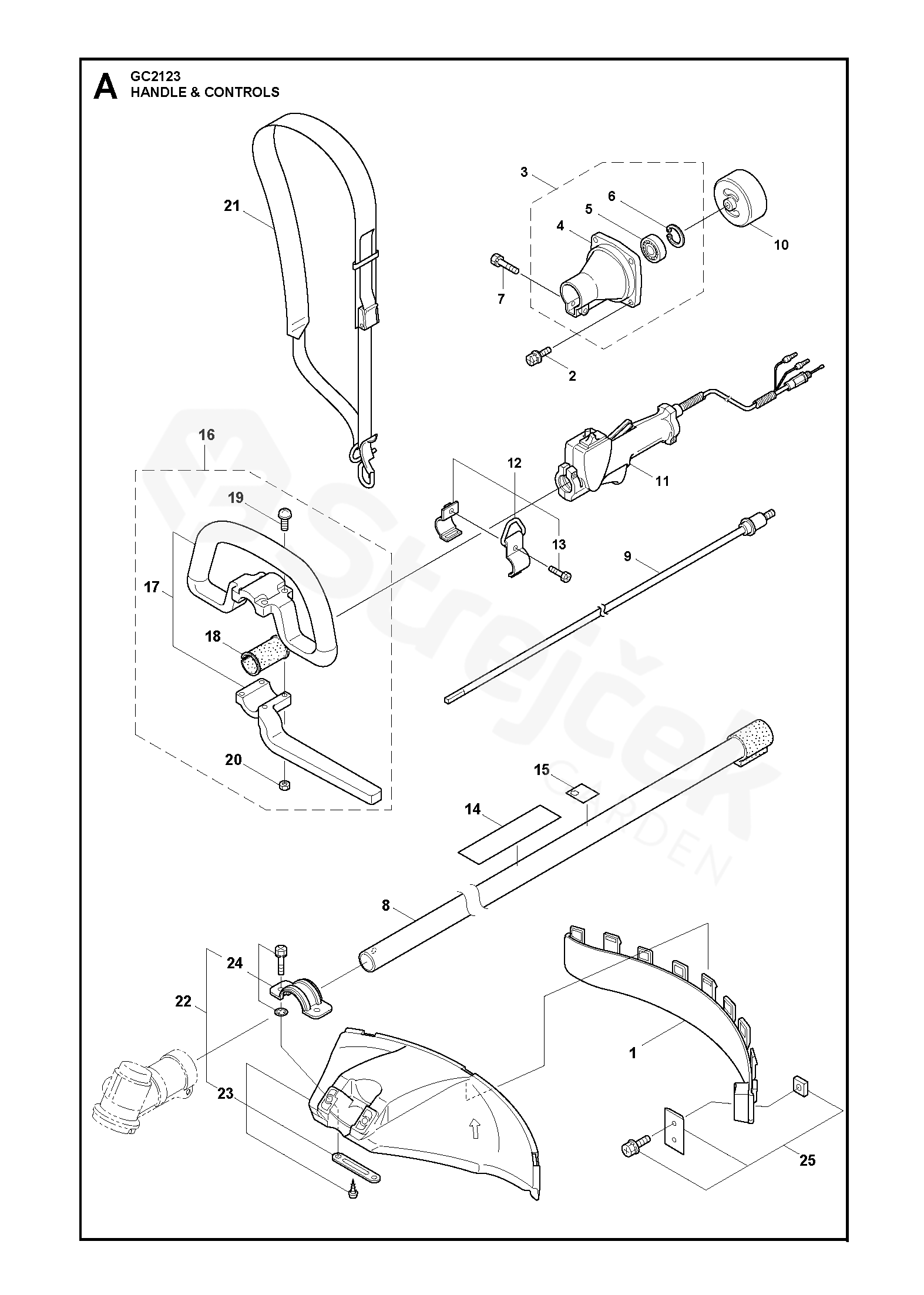

HANDLE & CONTROLS
GC2123 GC2123, 2010-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GC2123, 2010-03
1 COVER 575841401
2 BOLT 523098101
3 CLUTCH CASE ASSY 575362901
4 CLUTCH CASE 575363001
5 BEARING 575363101
6 SNAP RING 575363201
7 BOLT 575363301
8 DRIVESHAFT TUBE 575363601
9 DRIVESHAFT ASSY 575363501
10 CLUTCH DRUM 575363401
11 THROTTLE TRIGGER 575363701
12 HANGING BRACKET ASSY 575363801
13 BOLT 575363901
14 LABEL WARNING 544330801
15 LABEL 575364801
16 LOOP HANDLE ASSY 575364001
17 LOOP HANDLE 575364101
18 PACKING 575364201
19 SCREW 575364301
20 NUT 575364401
21 HARNESS 537216201
22 SAFETY COVER ASSY 575364501
23 SAFETY GUARD 575364701
24 BRACKET 575364601
25 KNIFE ASSY 574236601
