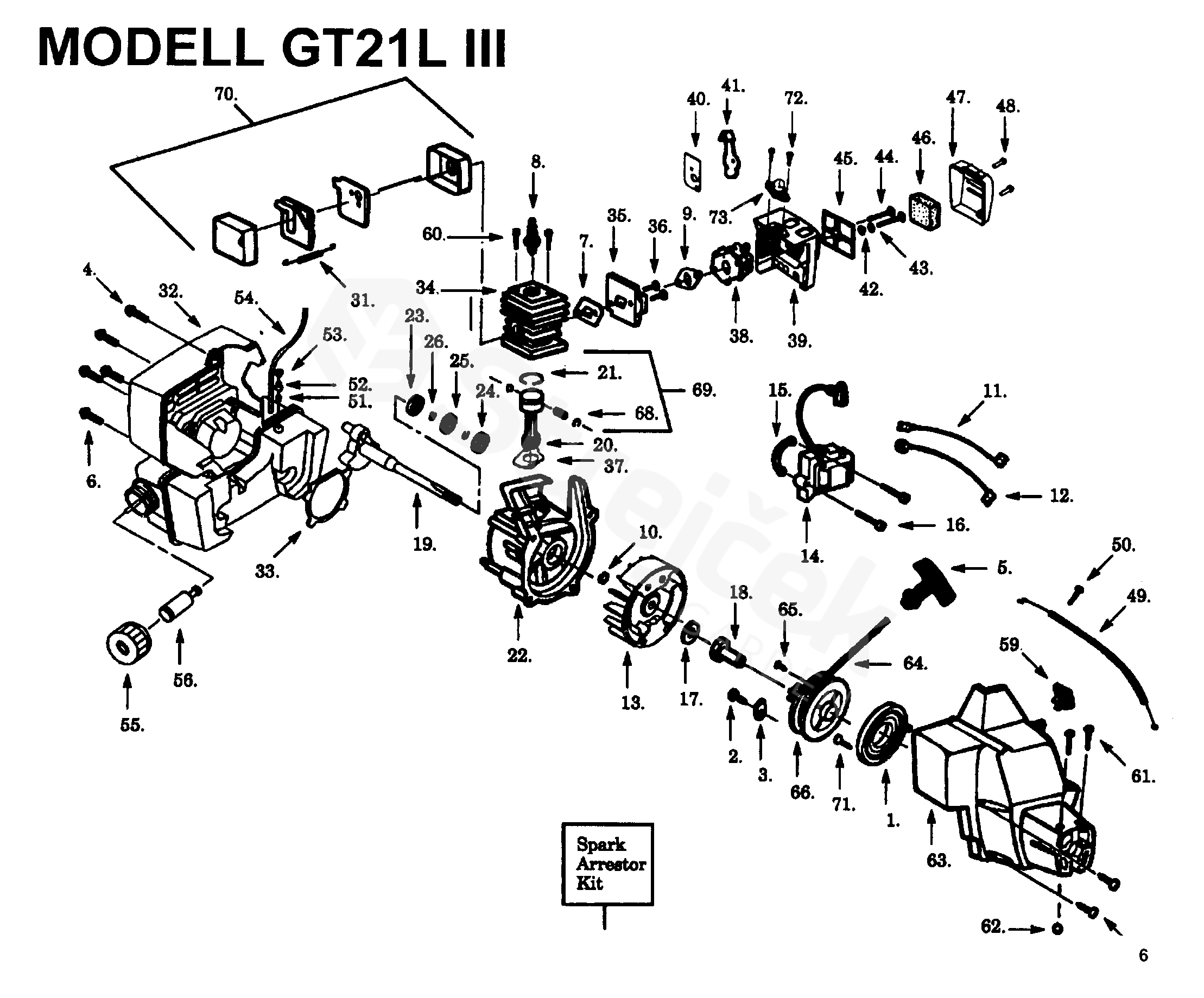

GT21 L GT21 L III, 1994-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For GT21 L III, 1994-01

1	RECOIL SPRING	530029395
2	SCREW	530015775
3	RETAINER	530027523
4	SCREW	530015934
5	STARTER HANDLE	530027569
6	SCREW	530015810
7	GASKET	530019185
8	SPARK PLUG	503235008
9	GASKET	530019183
10	CLIP	530015941
11	CABLE	530014663
12	CABLE	530014662
13	FLYWHEEL	530039149
14	IGNITION MODULE	530039163
15	HOLDER	530036145
16	SCREW	530015954
17	PODLOŽKA Washer	530015828
18	COUPLING	530027953
19	CRANKSHAFT	530014532
20	CONNECTING ROD ASSY	530014397
21	PISTON RING	530036404
22	CRANKCASE	530014861
23	BEARING	530032125
24	BEARING	530032124
25	SEALING	530019179
26	CLIP	530015945
31	SPRING	530029930
32	TANK	530047090
33	GASKET	530019181
34	CYLINDER	530069373
35	ADAPTER	530036517
36	SCREW	530016014
37	GASKET	530019186
38	CARBURETTOR	530035347
39	AIR BOX	530037966
40	PLATE	530037326
41	CHOKE FLAP	530037325
42	SPRING	530015254
43	SPACER	530015852
44	SCREW	530015849
45	FILTER	530037413
46	AIR FILTER	530037331
47	COVER	530037292
48	SCREW	530015966
49	CABLE	530036744
50	SCREW	530015814
51	CHECK VALVE	530026119
52	FILTER	530029717
53	HOLDER	530029696
54	HOSE	530069247
55	TANK CAP	530036874
56	FILTER	530014362
59	SWITCH	530029239
60	SCREW	530015953
61	SCREW	530016072
62	NUT	530015768
63	FAN HOUSING	530014813
64	STARTER ROPE	530069232
65	SCREW CPL	530015823
66	STARTER PULLEY	530069400
67	SPARK ARRESTOR	530069380
68	CIRCLIP	530015162
69	PISTON	530069402
70	MUFFLER	530069389
71	SCREW	530015882
72	SCREW	530015780
73	BULB	530037972
