Spare parts
>
Jonsered
>
TRIMMERS/EDGERS
>
GT21 L GT21 L II, 1993-01
>
ENGINE
Back to
GT21 L
GT21 L II, 1993-01
ENGINE
GT21 L
GT21 L II, 1993-01

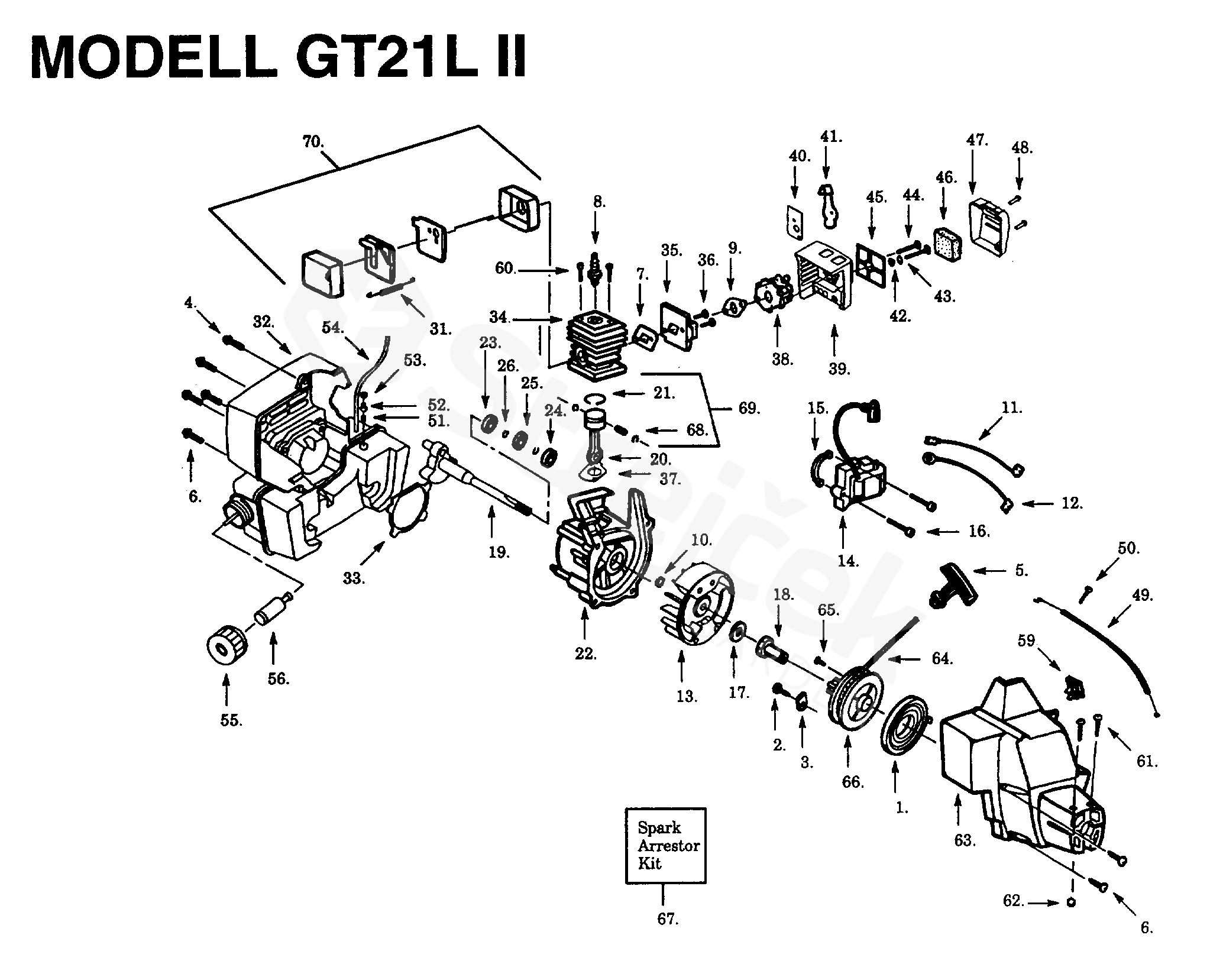

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GT21 L II, 1993-01
1
RECOIL SPRING
530029395
2
SCREW
530015775
3
RETAINER
530027523
4
SCREW
530015934
5
STARTER HANDLE
530027569
6
SCREW
530015810
7
GASKET
530019185
8
SPARK PLUG
503235008
9
GASKET
530019183
10
CLIP
530015941
11
CABLE
530014663
12
CABLE
530014662
13
FLYWHEEL
530039149
14
IGNITION MODULE
530039163
15
HOLDER
530036145
16
SCREW
530015954
17
PODLOŽKA Washer
530015828
18
COUPLING
530027953
19
CRANKSHAFT
530014532
20
CONNECTING ROD ASSY
530014397
21
PISTON RING
530036404
22
CRANKCASE
530014861
23
BEARING
530032125
24
BEARING
530032124
25
SEALING
530019179
26
CLIP
530015945
31
SPRING
530029930
32
TANK
530037487
33
GASKET
530019181
34
CYLINDER
530069373
35
ADAPTER
530036517
36
SCREW
530016014
37
GASKET
530019186
38
CARBURETTOR
530035308
39
AIR BOX
530037311
40
PLATE
530037326
41
CHOKE FLAP
530037325
42
SPRING
530015254
43
SPACER
530015852
44
SCREW
530015849
45
FILTER
530037413
46
AIR FILTER
530037331
47
COVER
530037292
48
SCREW
530015966
49
CABLE
530036744
50
SCREW
530015814
51
CHECK VALVE
530026119
52
FILTER
530029717
53
HOLDER
530029696
54
HOSE
530069247
55
TANK CAP
530036874
56
FILTER
530014362
59
SWITCH
530029239
60
SCREW
530015953
61
SCREW
530015767
62
NUT
530015768
63
FAN HOUSING
530014813
64
STARTER ROPE
530069232
65
SCREW CPL
530015823
66
STARTER PULLEY
530069400
67
SPARK ARRESTOR
530069380
68
CIRCLIP
530015162
69
PISTON
530069402
70
MUFFLER
530069389
