Spare parts > Jonsered > TRIMMERS/EDGERS > GT21 L GT21 L, 1996-02 > ENGINE
Back to

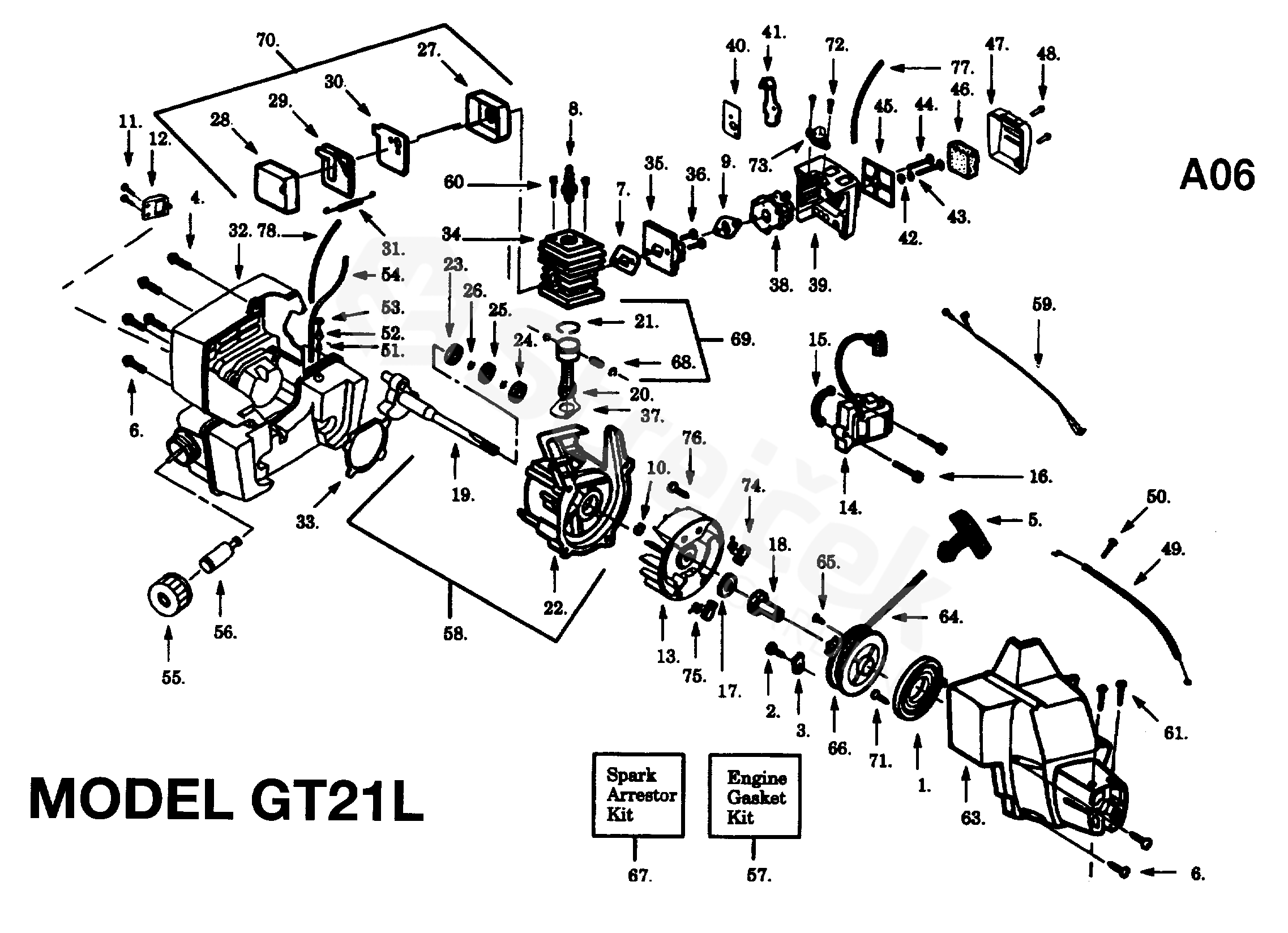

ENGINE
GT21 L GT21 L, 1996-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GT21 L, 1996-02
1 RECOIL SPRING 530029395
2 SCREW 530015775
3 RETAINER 530027523
4 SCREW 530015934
5 STARTER HANDLE 530027569
6 SCREW 530015810
7 GASKET 530019233
8 SPARK PLUG 530030075
9 GASKET 530019194
10 CLIP 530015945
11 SCREW 530015675
12 MUFFLER GUARD 530037045
13 FLYWHEEL 530039149
14 IGNITION MODULE 530039163
15 HOLDER 530036145
16 SCREW 530015954
17 PODLOŽKA Washer 530015828
18 COUPLING 530027953
19 CRANKSHAFT 530014532
20 CONNECTING ROD 530069615
21 PISTON RING 530036404
22 CRANKCASE 530014861
23 BEARING 530032125
24 BEARING 530032124
25 SEALING 530019179
26 CLIP 530015941
27 MUFFLER, BODY 530036578
28 MUFFLER,COVER 530036577
29 PARTITION 530038602
30 PARTITION 530036579
31 SPRING 530029930
32 TANK 530047090
33 GASKET 530019181
34 CYLINDER 530069619
35 ADAPTER 530069769
36 SCREW 530016014
37 GASKET 530019223
38 CARBURETTOR 530069647
39 AIR BOX 530037966
40 PLATE 530037326
41 CHOKE FLAP 530038102
42 SPRING 530015254
43 SPACER 530015852
44 SCREW 530015887
45 FILTER 530037413
46 AIR FILTER 530037331
47 COVER 530037292
48 SCREW 530015966
49 CABLE 530036744
50 SCREW 530015843
51 CHECK VALVE 530026119
52 FILTER 530029717
53 HOLDER 530029696
54 HOSE 530069247
55 TANK 530014347
56 FILTER 530014362
57 GASKET 530069625
58 CRANKCASE 530014729
59 CABLE 530047278
60 SCREW 530015953
61 SCREW 530016072
62 NUT 530015768
63 HOUSING 530047491
64 STARTER ROPE 530069232
65 SCREW 530016080
66 STARTER PULLEY 530069400
67 SPARK ARRESTOR 530069380
68 CIRCLIP 530015162
69 PISTON 530069621
70 MUFFLER 530069660
71 SCREW 530015882
72 SCREW 530016090
73 PRIMER 530038874
74 SPRING 530047570
75 PAWL 530029939
76 SCREW 530015882
77 KIT 530069216
78 HOSE 530069571
