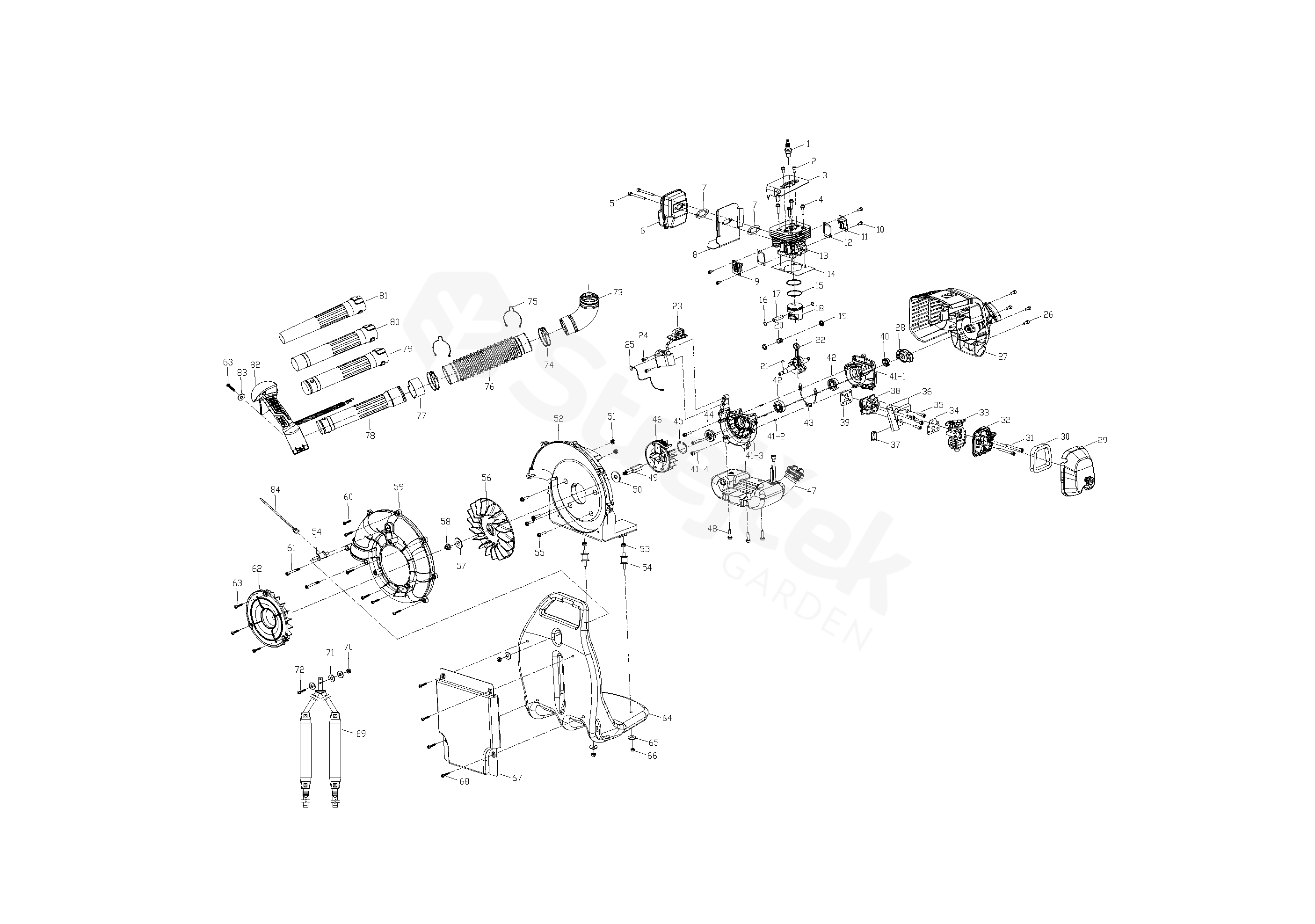

BP 290 BP 290, 966483101, 2009-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BP 290, 966483101, 2009-12

1	SPARK PLUG	576536901
2	SCREW	575306601
3	PLATE	576537001
4	SCREW	575306901
5	SCREW	575307001
6	MUFFLER ASSY	576537101
7	GASKET	576537201
8	PLATE	576537301
9	COVER	576537401
10	SCREW	575307301
11	COVER	576537501
12	GASKET	576537601
13	CYLINDER	576537701
14	GASKET	576537801
15	PISTON RING	576537901
16	CIRCLIP	575308101
17	PISTON PIN	576538001
18	PISTON	576538101
19	STUB SHAFT	575308201
20	NEEDLE BEARING	575308401
21	KEY	574727901
22	CRANKSHAFT ASSY	575308601
23	IGNITION COIL	576538201
24	SCREW	574724801
25	CABLE	575313401
26	SCREW	575308901
27	STARTER ASSY	576538301
28	DRIVER ASSY	575311601
29	FILTER COVER	576538401
30	AIR FILTER	575309501
31	SCREW	575309601
32	PLATE	576538501
33	CARBURETTOR	576538601
34	GASKET	576538701
35	SCREW	575311001
36	PLATE	576538801
37	GROMMET	575311301
38	MANIFOLD	576539101
39	GASKET	575311501
40	SEAL	574222101
41	CRANKCASE ASSY	576539201
42	BEARING	574726601
43	GASKET	575311901
44	SEALING	575312101
45	CIRCLIP	575312001
46	FLYWHEEL	576539301
47	FUEL TANK ASSY	575312301
48	SCREW	575313301
49	CONNECTION ROD	576539401
50	WASHER	576539501
51	NUT	576539601
52	HOUSING	576539701
53	NUT	576539801
54	ANTIVIBRATION ELEMENT	576539901
55	SCREW	576540001
56	IMPELLER	576540101
57	LOCKWASHER	576540201
58	NUT	576540301
59	HOUSING	576540401
60	SCREW	576540501
61	SCREW	576540601
62	COVER	576540701
63	SCREW	574223901
64	FRAME	576540801
65	WASHER	576540901
66	NUT	576541001
67	CUSHION	576541101
68	RIVET	576541201
69	HARNESS	576541301
70	NUT	576541401
71	WASHER	576541501
72	SCREW	576541601
73	PIPE BEND	576541701
74	TUBE	576541801
75	LOCK CLAMP	576541901
76	TUBE	576542001
77	RING	576542101
78	TUBE	576542201
79	TUBE	576542301
80	TUBE	576542401
81	TUBE	576542501
82	THROTTLE HANDLE ASSY	576542601
83	WASHER	576542701
84	STRAP	576542801
