Spare parts > McCULLOCH > Leaf Blowers > GBV325 GBV325, 967167101, 2017-04 > HOUSING
Back to

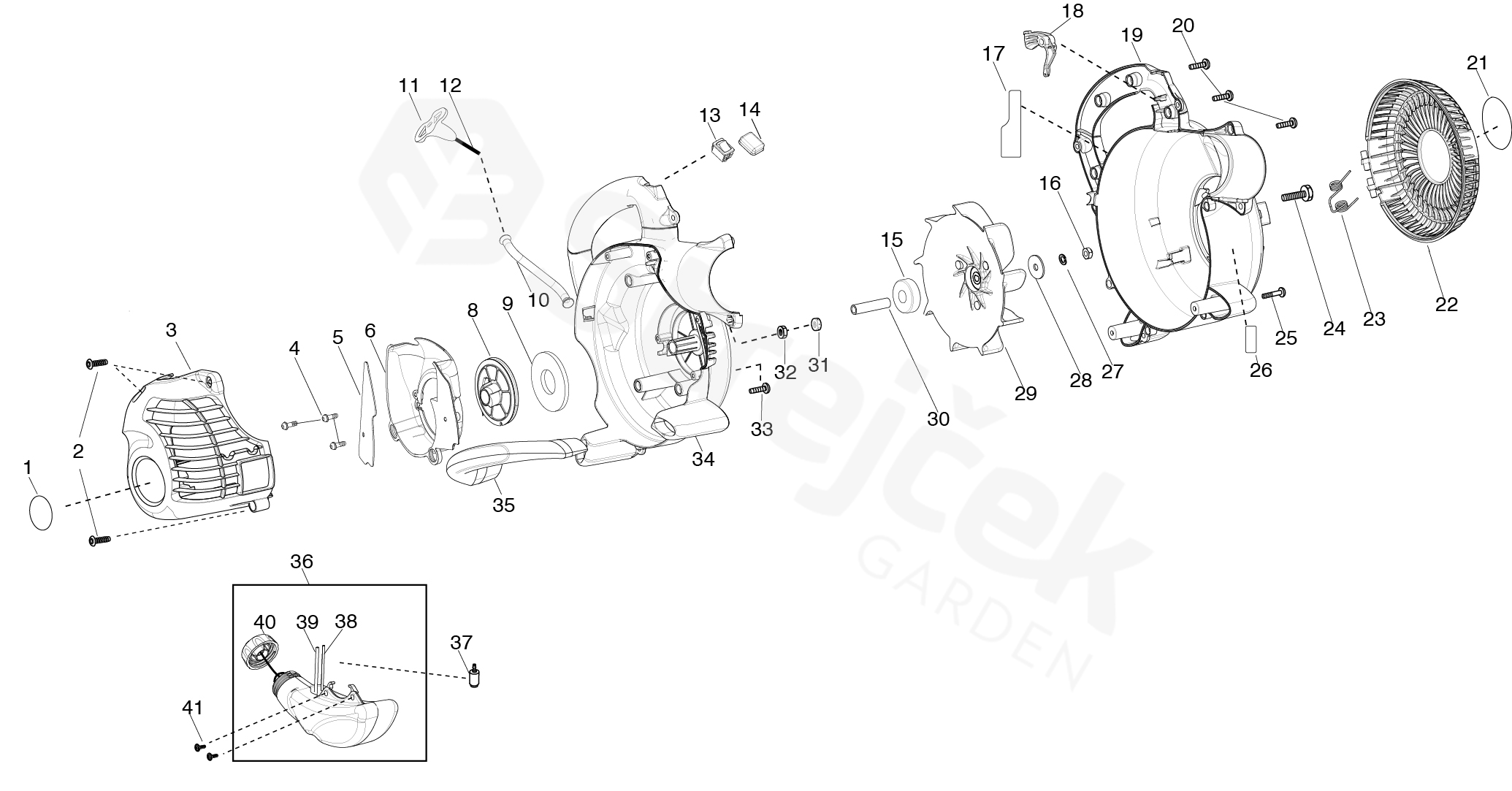

HOUSING
GBV325 GBV325, 967167101, 2017-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GBV325, 967167101, 2017-04
2 SCREW 530015814
4 SCREW 530015880
5 SHIELD 545134001
6 BAFFLE 545099101
8 SERVICE KIT Kit - Starter Pulley
STARTER PULLEY 		589505501
9 SPRING 545054901
11 HANDLE 530054834
12 KIT ROPE 545081833
13 KIT SWITCH MOMENTARY 545081830
15 BEARING 545099001
16 NUT 530626605
18 TRIGGER THROTTLE BLACK 545113804
20 SCREW 530015814
22 DOOR 545100801
23 SPRING VAC DOOR 545115601
24 SCREW 545003502
25 SCREW 530015940
27 WASHER 530092322
28 WASHER 545109901
29 HUB ASSY 580780901
30 SPACER 576810101
31 LOCK NUT 530015515
32 MATICE Nut - Blower tube 530015197
33 SCREW 530016386
35 HANDLE 545101201
36 FUEL TANK ASSY 578943312
37 ASSEMBLY 577167201
38 HOSE 530069247
39 KIT
LINE TANK/PURGE 		530069216
41 SCREW FUEL TANK RETAINER 530016445
