Spare parts
>
McCULLOCH
>
BRUSHCUTTERS/CLEARING SAWS
>
TM 281 TM 281, 952715467, 2009-04
>
SHAFT & HANDLE
Back to
TM 281
TM 281, 952715467, 2009-04

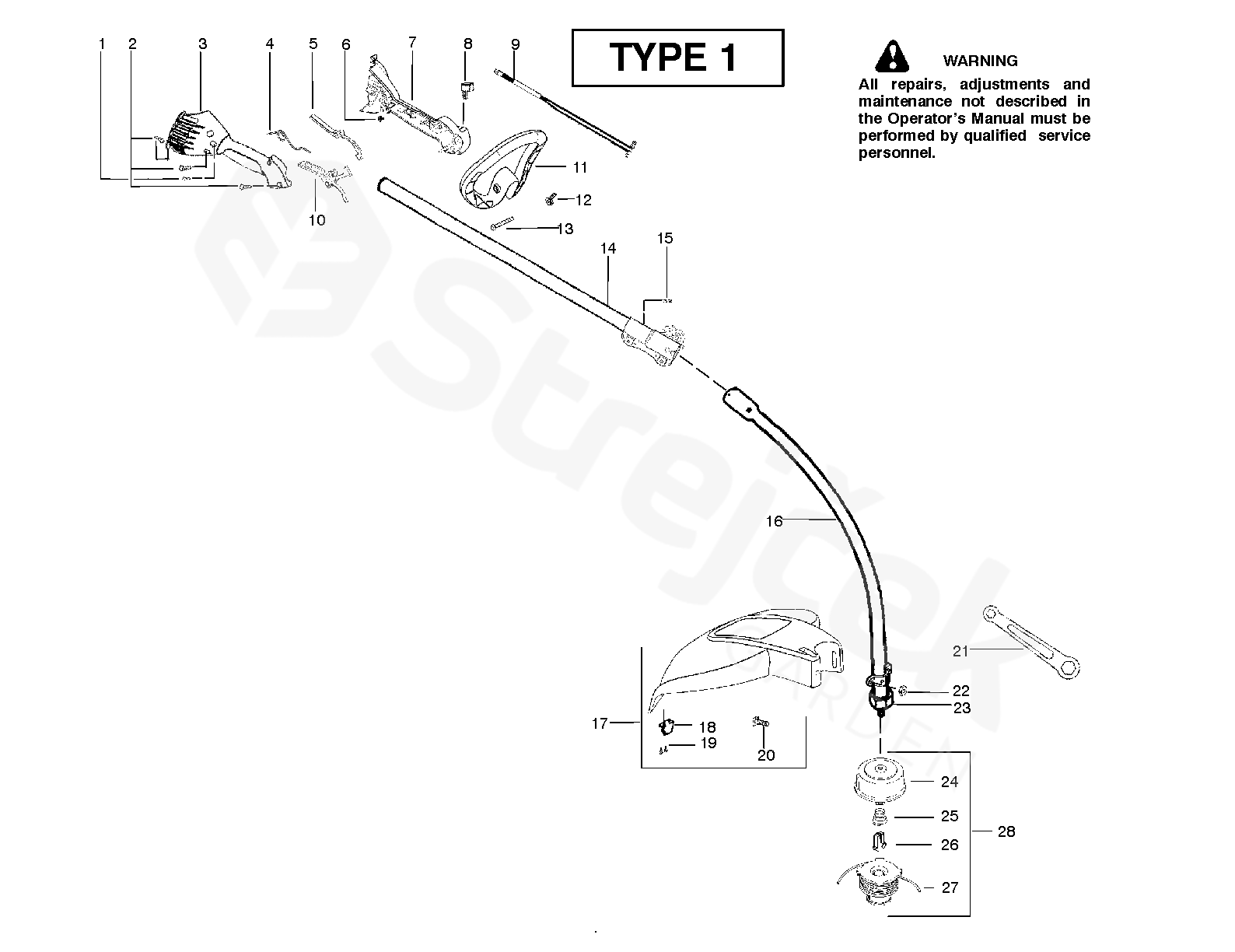

SHAFT & HANDLE
TM 281
TM 281, 952715467, 2009-04
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TM 281, 952715467, 2009-04
1
SCREW
530015805
2
SCREW
530015886
3
HSG.--THROTTLE (RIGHT)
545018902
4
SPRING
530016473
5
LOCKOUT--THROTTLE
545017601
6
SCREW
530016326
7
HSG.--THROTTLE (LEFT)
545018702
8
SWITCH
530069572
9
ASSEMBLY
530058843
10
ASSEMBLY
545017701
11
HANDLE
530058754
12
KŘÍDLOVÁ MATICE
530016152
13
BOLT
530015786
14
01 KIT--UPPER SHAFT ASS
545024801
15
SCREW
530016344
16
KIT
530071929
17
KIT
530071949
18
HADIČKA
530052286
19
SCREW
530015814
20
SCREW
530015820
21
WRENCH
530056401
22
MATICE Nut - Blower tube
530015197
23
DUSTCUP
530057559
24
HUB
530095776
25
SPRING
530053241
26
RETAINER
530401957
27
SPOOL
530095845
28
TRIMMER HEAD
530095846
