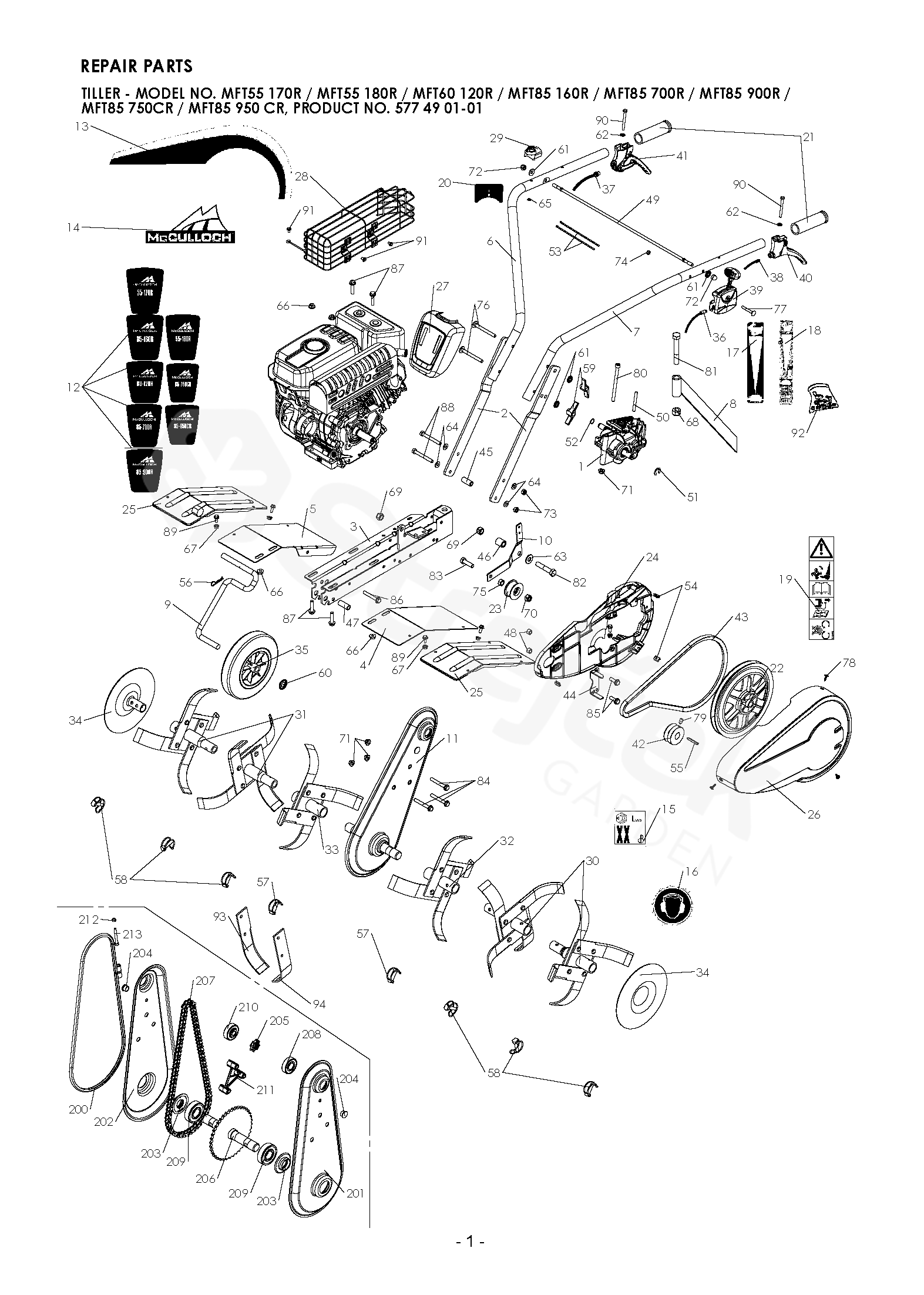

Spare parts - Partlist - MFT85 750CR MFT85 750CR, 967045701, 2016-05 - PRODUCT COMPLETE

Everything for your machines

MFT85 750CR MFT85 750CR, 967045701, 2016-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MFT85 750CR, 967045701, 2016-05

1	GEARBOX	588421201
2	HANDLEBAR	577487501
3	FRAME	577487401
4	GUARD	577487901
5	GUARD	577487801
6	HANDLEBAR	577487701
7	HANDLEBAR	577487601
8	TAIL-SKID	531008206
9	WHEEL	577448001
10	LEVER	519653407
11	TRANSMISSION	575358701
12	STICKER	582590901
13	STICKER	577489401
14	STICKER	577489301
15	LABEL	501962501
16	STICKER	577463301
17	DECAL	519646680
18	DECAL	531008251
19	DECAL	531008540
20	LABEL	501963701
21	GRIP	544311401
22	PULLEY	519653060
23	PULLEY	519653457
24	COVER PLATE	577524801
25	GUARD	577488501
26	BELT COVER	577488701
27	BRACKET	577489001
28	GRILL	531009418
29	STOP SWITCH	531008558
30	TINE	531008214
31	TINE	531008215
32	BLADE	531008211
33	BLADE	531008213
34	COVER	519653362
35	WHEEL	577447801
36	THROTTLE CABLE	577525001
37	CABLE	577463701
38	CABLE	588421301
39	THROTTLE LEVER	577453001
40	GEARSHIFT LEVER	501005201
41	LEVER	577463601
42	PULLEY	544243901
43	BELT	575360201
44	BELT GUIDE	531008577
45	SPACER	575360901
46	SPACER	575360501
47	SPACER	575361001
48	SPACER	531008216
49	HANDLEBAR	577452401
50	SHAFT	519653067
51	RETAINER RING	580314201
52	RETAINING RING	519653466
53	COLLAR	544311101
54	CLIP	519653425
55	KEY	519653021
56	PIN RETAINING SCREW	519651220
57	CLIP	577453601
58	CLIP	577453501
59	WING NUT	531008462
60	WASHER	577463101
61	WASHER	544314901
62	WASHER	531009403
63	WASHER	519653453
64	WASHER	544208101
65	WASHER	531008539
66	NUT	519653430
67	NUT	519653432
68	NUT	531008578
69	ECROU DE FREIN	752255051
70	NUT	519653458
71	NUT	586721001
72	CAP NUT	577489101
73	NUT	544207901
74	HEXAGON LOCKING NUT	732261601
75	NUT	519653456
76	SCREW	575361301
77	SCREW	577453801
78	SCREW	519653426
79	SCREW	728692300
80	SCREW	577525301
81	BOLT	531008220
82	SCREW	575361801
83	SCREW	519653455
84	BOLT	573943101
85	SCREW	519653412
86	SCREW	575361601
87	SCREW	544207301
88	SCREW	575361701
89	SCREW	519653435
90	SCREW	519653113
91	SCREW	585365401
92	BAG	577463201
93	BLADE	519653447
94	BLADE	519653448
200	FLANGE	577490401
201	HOUSING	519653042
202	HOUSING	519653041
203	RING	531008576
204	PLUG	519653391
205	PINION	519653057
206	ŘETĚZKA	519653007
207	CHAIN	575362301
208	BALL	505544001
209	BEARING	519653053
210	RING	531008546
211	SPACER	585365501
212	HEXAGON LOCKING NUT	732261601
213	SCREW	501963801
