Spare parts > McCULLOCH > Cultivators > MRT6 MRT6, 96091002106, 2013-10 > MAINFRAME, LEFT SIDE
Back to

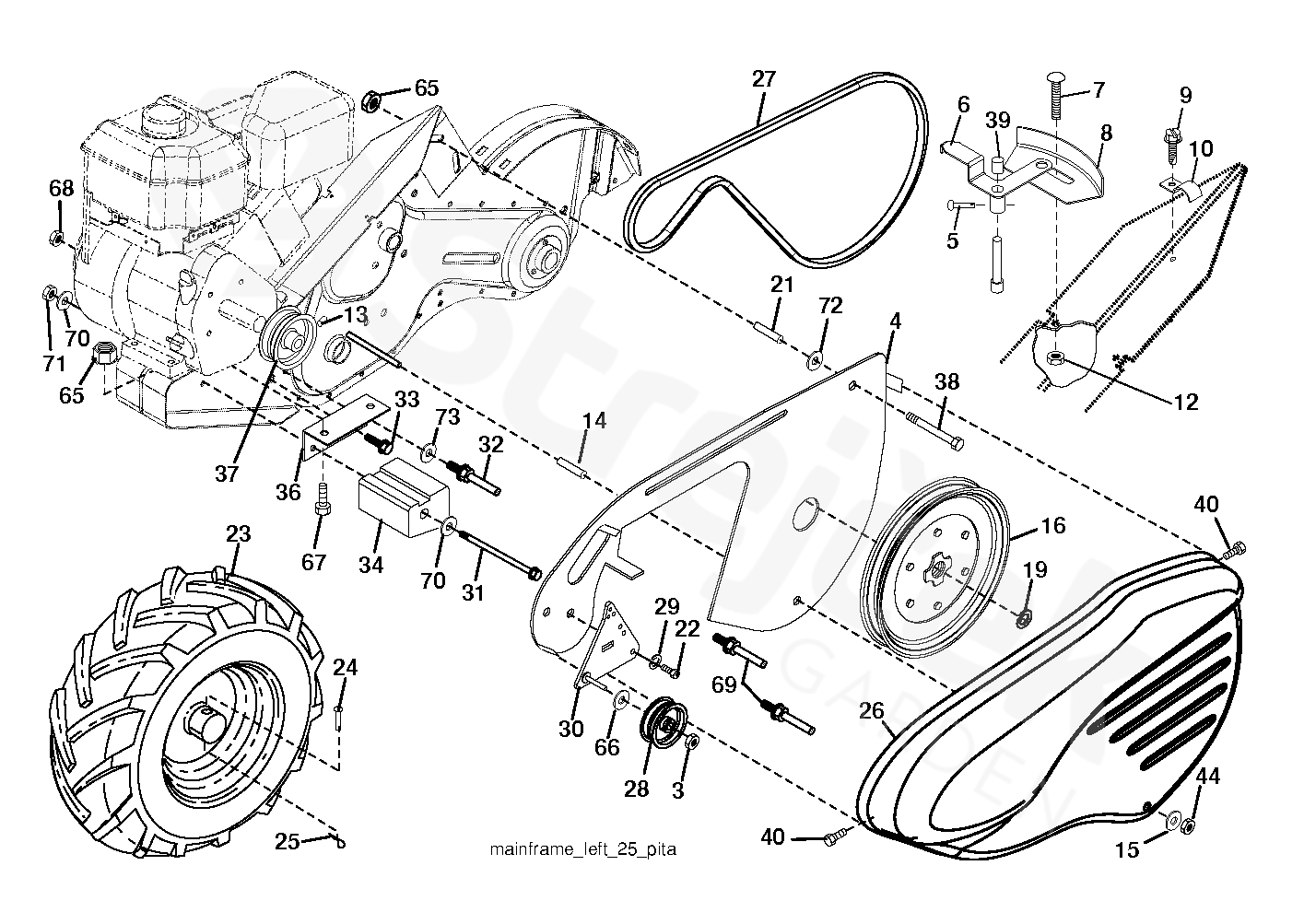

MAINFRAME, LEFT SIDE
MRT6 MRT6, 96091002106, 2013-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MRT6, 96091002106, 2013-10
3 MATICE 873930600
4 SHIELD 581871701
5 PIN RETAINING SCREW 532164329
6 LEVER 532110111
7 BOLT 872110404
8 INDICATOR PANEL 581845001
9 SCREW 532086777
10 CLIP 532446045
12 MATICE 873510400
13 SCREW 823230506
14 ROZPĚRKA 532156117
15 PODLOŽKA 819111116
16 PULLEY 532145102
19 CLIP 812000028
21 ROZPĚRKA 532131691
22 BOLT 874770508
23 WHEEL 583877402
24 RIVET 532126875
25 RETAINING RING 532124788
26 HOUSING 532407286
27 BELT 532132801
28 PULLEY 532104679
29 RETAINING RING 812000032
30 BRACKET 584289201
31 SCREW 581747201
32 HRÍDEL 532102141
33 BOLT 874760616
34 WEIGHT 581010601
36 BRACKET 581864801
37 PULLEY 532130812
38 BOLT 874760544
39 CAP 532140062
40 SCREW 532170488
44 BRACKET 873800500
65 MATICE 873970500
66 PODLOŽKA 819131316
67 BOLT 874760524
68 MATICE 873510600
69 HLÍDAČ 532164173
70 PODLOŽKA 819132012
71 MATICE 873680600
72 ROZPĚRKA 532174029
73 PODLOŽKA 819131312
