Spare parts > McCULLOCH > Hedge Trimmers > MAC MDAHT 25 GHT MAC MDAHT 25 GHT, 952715737, 2009-04 > CLUTCH & OIL PUMP
Back to

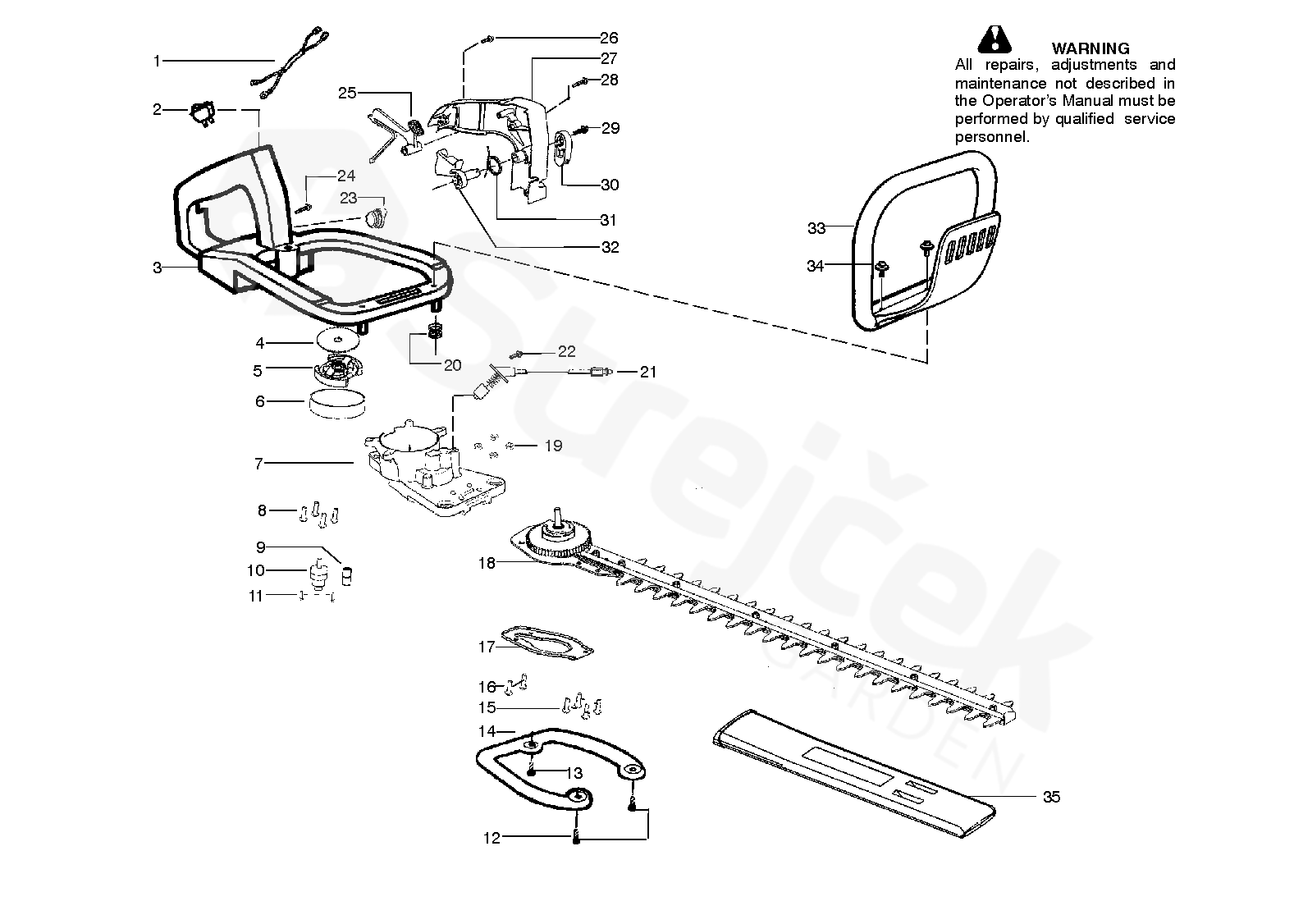

CLUTCH & OIL PUMP
MAC MDAHT 25 GHT MAC MDAHT 25 GHT, 952715737, 2009-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MAC MDAHT 25 GHT, 952715737, 2009-04
1 CABLE ASSY 545172901
2 SWITCH 530029954
3 HANDLE 530071656
4 PODLOŽKA 530015611
5 CLUTCH ASSY 530071803
6 ASSEMBLY 530150583
7 GEARBOX ASSY 545081707
8 SCREW 530015886
9 BEARING 530016013
10 PISTON 530096258
11 SCREW 530015805
12 SCREW 530015934
13 SCREW 530015849
14 PLATE 530036046
15 SCREW 530016472
16 SCREW 530015940
17 PLATE 530029916
18 BLADE 545081839
19 NUT 545009101
20 ANTIVIBRATION ELEMENT 530029946
21 CABLE 530057819
22 SCREW 530015934
23 HUB CAP 530014871
24 SCREW 530016406
25 THROTTLE LOCK 530059104
26 SCREW 530015934
27 KIT 545008001
28 SCREW 530015940
29 SCREW 530015775
30 CATCH 530057818
31 SPRING 530036123
32 THROTTLE TRIGGER 530053884
33 HANDLE 530094992
34 SCREW 530015955
35 SCABBARD 530031193
