Spare parts > McCULLOCH > Hedge Trimmers > SuperLite 4528 SuperLite 4528, 966693301 > HANDLE
Back to

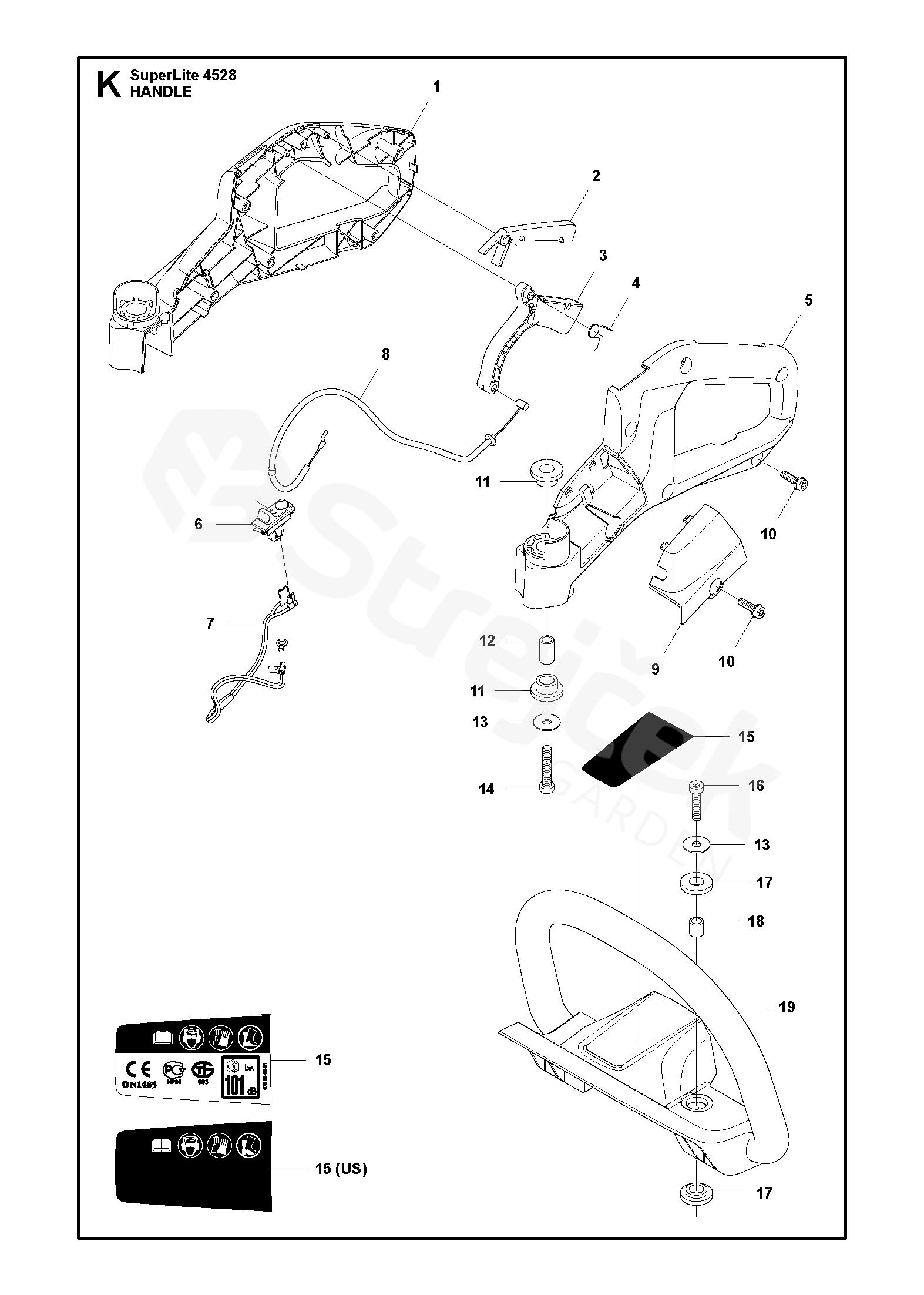

HANDLE
SuperLite 4528 SuperLite 4528, 966693301
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SuperLite 4528, 966693301
1 REAR HANDLE 576547402
2 THROTTLE LOCKOUT 504089703
3 THROTTLE CONTROL 504089403
4 SPRING 504089601
5 REAR HANDLE 576547302
6 SWITCH 537419001
7 SHORT CIRCUIT CABLE 574488802
8 THROTTLE CABLE ASSY 575572101
9 LID 576768802
10 SCREW ITXSCFT 573925801
11 ANTIVIBRATION ELEMENT 525633501
12 SLEEVE 525633701
13 WASHER 734181455
14 SCREW ITXSCM 544218405
15 LABEL 587130002
16 SCREW ITXSCM 544218403
17 ANTIVIBRATION ELEMENT 525633601
18 SLEEVE 525633801
19 FRONT HANDLE 576643201
