McCULLOCH
>
CHAIN SAWS
>
CS330 CS330, 967178201, 2012-09
>

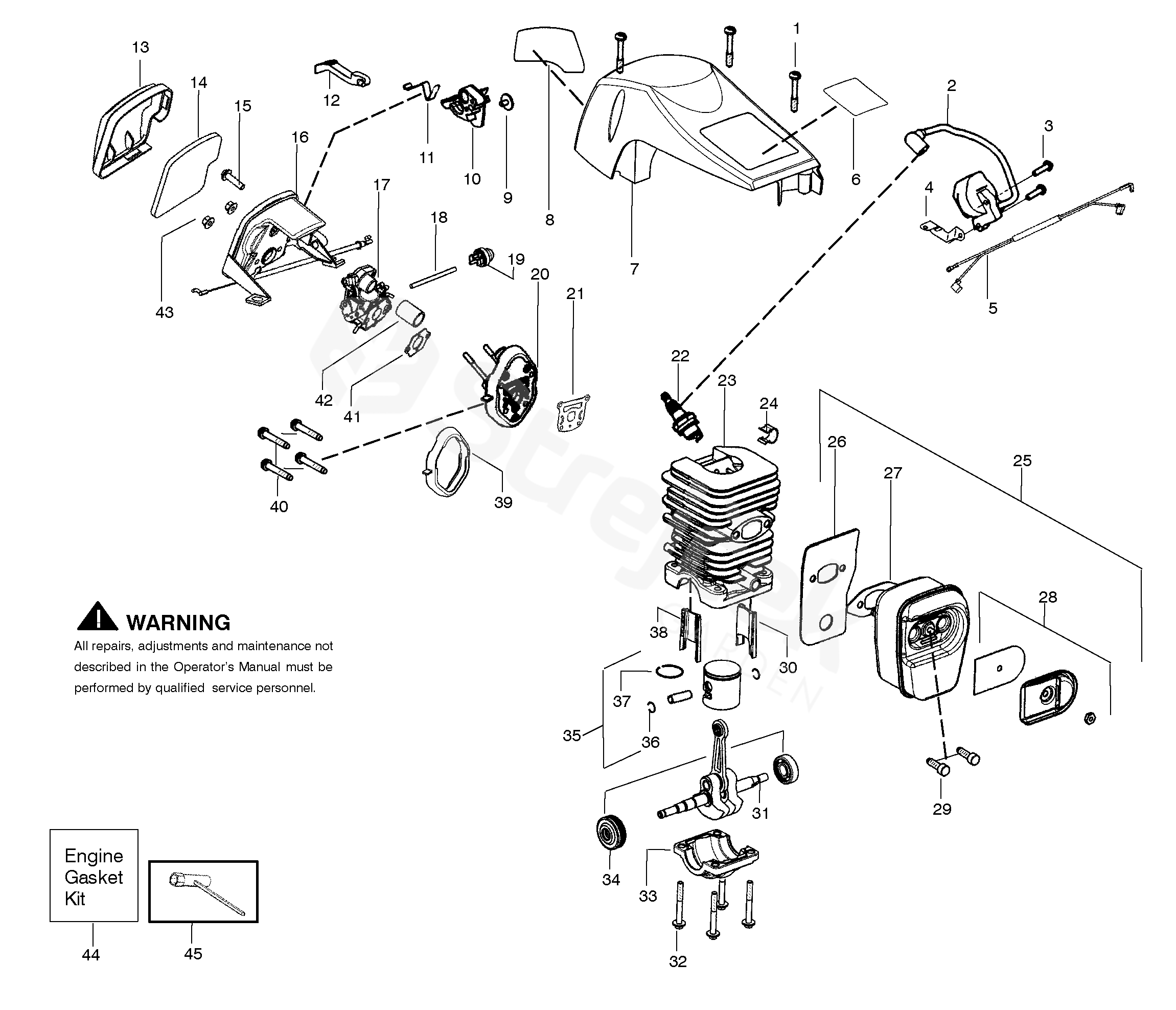

ENGINE
Back to
CS330
CS330, 967178201, 2012-09
ENGINE
CS330
CS330, 967178201, 2012-09
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CS330, 967178201, 2012-09
1
SCREW
530016153
2
IGNITION MODULE
545115801
3
SCREW
530016432
4
PLATE
530058661
5
ASSEMBLY
530057943
6
DECAL
577923702
7
CYLINDER SHIELD EURO BLACK
545045801
8
DECAL
580783801
9
SCREW
530016080
10
LEVER
530057891
11
SPRING
530057908
12
CHOKE CONTROL
530059399
13
AIR FILTER COVER
530059001
14
AIR FILTER
530057869
15
SCREW
530016425
16
FILTER HOLDER
545046901
17
CARBURETTOR
545070601
18
FUEL HOSE
580727101
19
PURGE
530047721
20
KIT
"INCL 21, 39, 42"
530071889
21
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
"REF KIT 20, 44"
000000000
22
SPARK PLUG
952030150
23
KIT
530071885
24
CLIP
530058660
25
MUFFLER
545081801
26
MUFFLER
530057942
27
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
"REF KIT 25, 44"
000000000
28
SPARK ARRESTER
545081701
29
BOLT
530016338
30
INSERT
545015301
31
CRANKSHAFT ASSY
545112901
32
BOLT
530016417
33
CRANKCASE
530057941
34
BEARING
530056363
35
PISTON ASSY "INCL #36, 37"
"INCL 36, 37"
530071882
36
LOCKING RING
530015697
37
PISTON RING
530038729
38
INSERT
545015401
39
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
"REF KIT 20, 44"
000000000
40
SCREW
530016426
41
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
REF KIT 44
000000000
42
TUBE
530057926
43
MATICE
530016101
44
KIT
"INCL 21, 27, 39, 41"
530071894
45
KLÍČ
530031135
