Spare parts > McCULLOCH > CHAIN SAWS > MAC 538 E 14 MAC 538 E 14, PREFIX 03, 953900219, 2007-09 > ENGINE
Back to
ENGINE

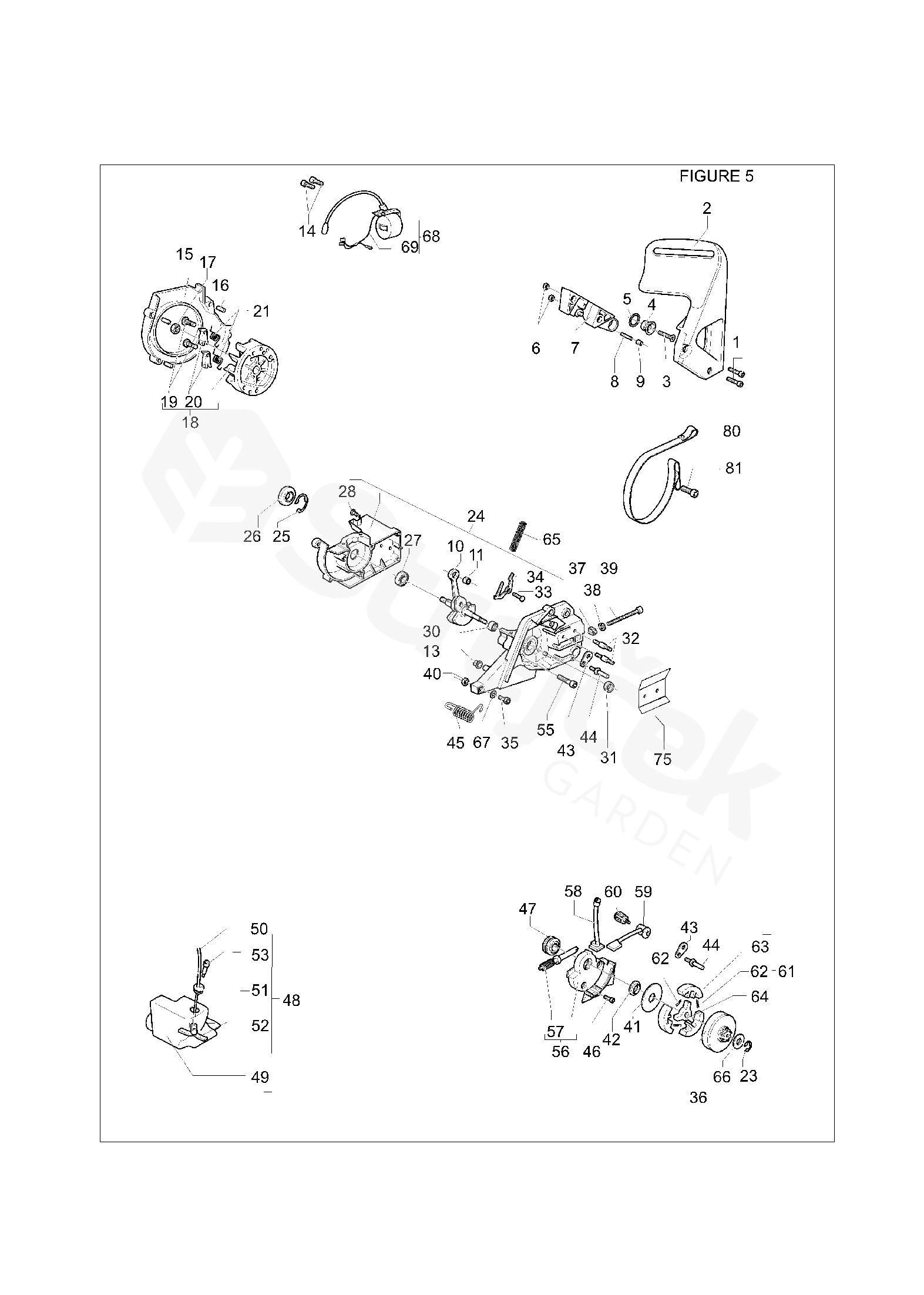

MAC 538 E 14 MAC 538 E 14, PREFIX 03, 953900219, 2007-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MAC 538 E 14, PREFIX 03, 953900219, 2007-09
1 SCREW 538235806
2 BRAKE LEVER 538241907
3 SCREW 538241905
4 SLEEVE 538241904
5 WASHER 538241906
6 NUT 538235642
7 LEVER 538241902
8 PIN RETAINING SCREW 538242017
9 SLEEVE 538241903
10 CRANKSHAFT 538241871
11 NEEDLE BEARING 538235742
13 SUPPORT 538235672
14 SCREW 538235806
15 AIR CONDUCTOR 538247290
16 SPACER 538240358
17 NUT 538235218
18 FLYWHEEL 538242621
19 RIVET 538235516
20 PAWL 538235517
21 SPRING 538235518
23 RING 538229137
24 CRANKCASE 538248496
25 RETAINER RING 538235899
26 SEALING 538241879
27 BEARING 538235900
28 SCREW 538241077
30 NEEDLE BEARING 538241253
31 SEAL 538228872
32 BOLT 538241881
33 RIVET 538235075
34 LEVER 538094006
35 SCREW 538235806
36 CLUTCH DRUM 538240260
37 TENSIONER 538241908
38 RETAINER RING 538235367
39 SCREW 538241909
40 NUT 538235642
41 WASHER 538241346
42 SPACER WASHER 538242006
43 PLATE 538240309
44 CHAIN 538240363
45 SPRING 538240286
46 SCREW 538235802
47 PISTON 538241882
48 TANK UNIT 538240920
49 TANK UNIT 538240300
50 HOSE 538229789
51 GROMMET 538235675
52 FILTER 538240452
53 VENT FILTER 538227582
55 SCREW 538236997
56 OIL PUMP ASSY 538241883
57 KIT 538241885
58 OUTLET 538241895
59 HOSE 538241896
60 OIL FILTER 538225062
61 CLUTCH KIT 538242004
62 SPRING 538240926
63 CLUTCH LINING 538227359
64 HUB 538242005
65 SPRING 538235076
66 WASHER 538235287
67 WASHER 538227259
68 IGNITION COIL ASSY 538243029
69 CABLE ASSY 538243040
75 PLATE 538241914
80 BRAKE BAND 538235073
81 SCREW 538235812
