Spare parts > McCULLOCH > CHAIN SAWS > CS450 CS450, 966631713, 966631715, 966631718 from 2011-07 - > KARBURÁTOR & VZDUCHOVÝ FILTR
Back to

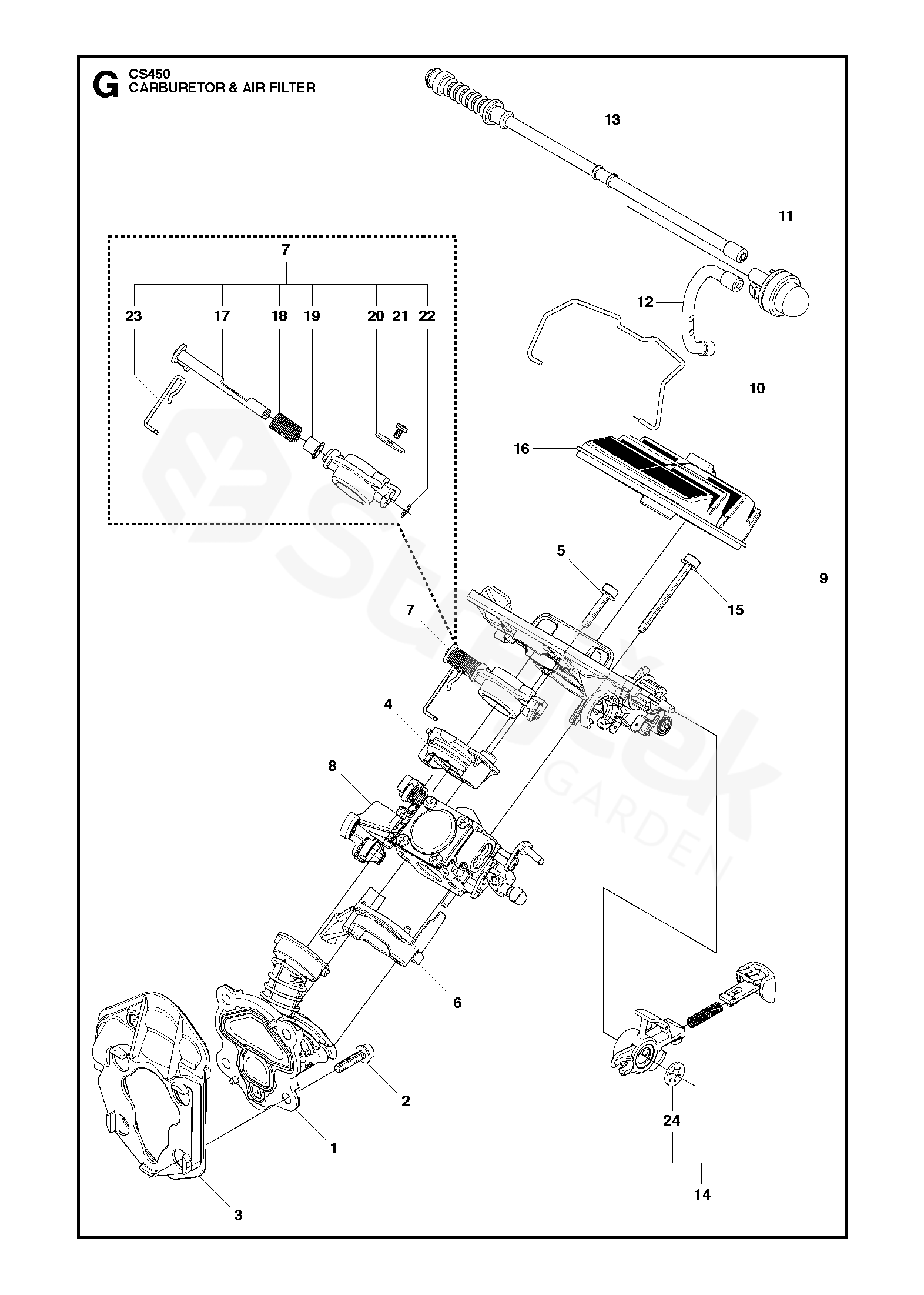

KARBURÁTOR & VZDUCHOVÝ FILTR
CS450 CS450, 966631713, 966631715, 966631718 from 2011-07 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS450, 966631713, 966631715, 966631718 from 2011-07 -
1 PIPE ASSY 544082301
2 SCREW IHSCFM 503200216
3 INTERMEDATE WALL 544083802
4 FLANGE 544084001
5 SCREW IHSCFT 503210725
6 FLANGE 544084101
7 PLYN 544148201
8 CARBURETTOR 506450401
9 DRŽÁK FILTRU 504003401
10 SHACKLE 544231401
11 PURGE 503936601
12 HADICE 544401901
13 RETURN HOSE 544129701
14 OVLADAČ 544359904
15 SCREW IHSCFT 503210750
16 AIR FILTER 544080803
17 HŘÍDE, MONTÁŽNÍ SESTAVA 502081001
18 PRUŽINA 502081101
19 COLLAR 502080801
20 VALVE 502081201
21 SCREW 503481801
22 CLIP 537385201
23 ROD 502080901
24 PODLOŽKA 735583000
