McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
6056 SM 6056 SM, 96111000902, 2007-03
>
PRODUCT COMPLETE
Back to
6056 SM
6056 SM, 96111000902, 2007-03
PRODUCT COMPLETE
6056 SM
6056 SM, 96111000902, 2007-03

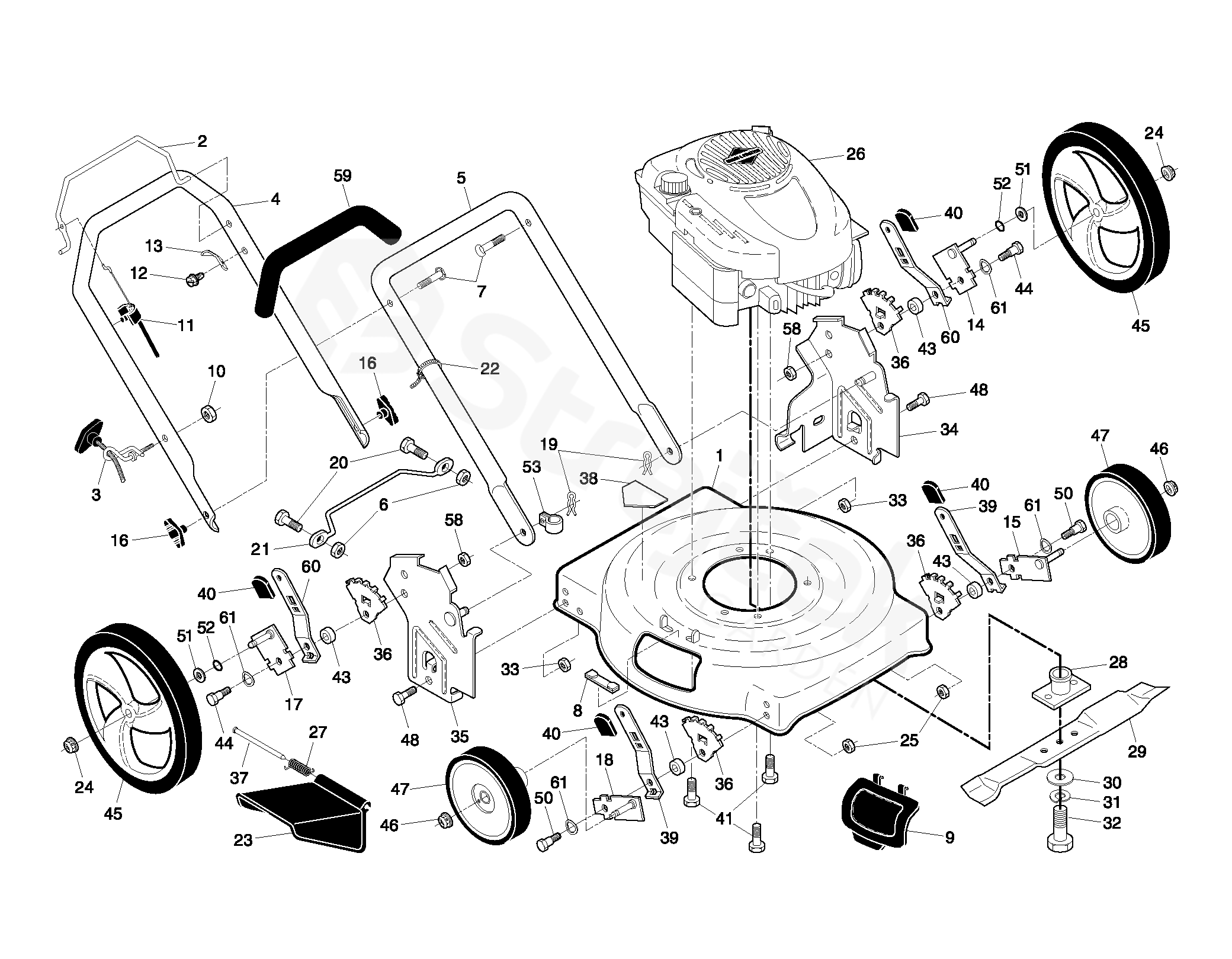

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
6056 SM, 96111000902, 2007-03
1
LAWN MOWER HOUSING
532185263
2
ROD
532161748
3
GUIDE
532194788
4
HANDLE
532173693
5
HANDLE
532174291
6
NUT
532069180
7
HANDLE BOLT
532191574
8
CLIP
532161622
9
PLATE, MULCHER
532160830
10
MATICE
532132004
11
CABLE
532183567
12
SCREW
532750634
13
DESKA
532125162
14
AXLE
532410600
15
AXLE
532406689
16
KNOB
532191938
17
AXLE
532410601
18
AXLE
532406690
19
PIN RETAINING SCREW
532051793
20
SCREW
532085825
21
PROTECTOR
532154147
22
HOOP
532066426
23
DISCHARGE GUARD
532160831
24
MATICE
532145212
25
NUT
532166785
27
TORSION SPRING
532408585
28
ADAPTER
532193707
29
MOWER BLADE
532199379
30
PODLOŽKA
532851074
31
PODLOŽKA
532850263
32
SCREW
532851084
33
BRACKET
873800500
34
BRACKET
532403508
35
BRACKET
532403507
36
WHEEL ADJ BRACKET FRONT
532410594
37
HINGE
532160833
38
DECAL
532182166
39
SPRING
532406428
40
KNOB
532087877
41
BOLT
532150406
43
SPACER
532401629
44
BOLT
532401638
45
WHEEL
532403509
46
MATICE
532083923
47
WHEEL
532403495
48
BOLT
874760514
50
BOLT
532160828
51
PODLOŽKA
532088348
52
O-KROUŽEK
532197480
53
CLIP
532197991
58
BOLT
532751153
59
HANDLE
532164265
60
SPRING
532410595
61
WASHER
532401630
OPERATOR´S MANUAL
532197060
