655 ESC 655 ESC, 96141005200, 2008-07

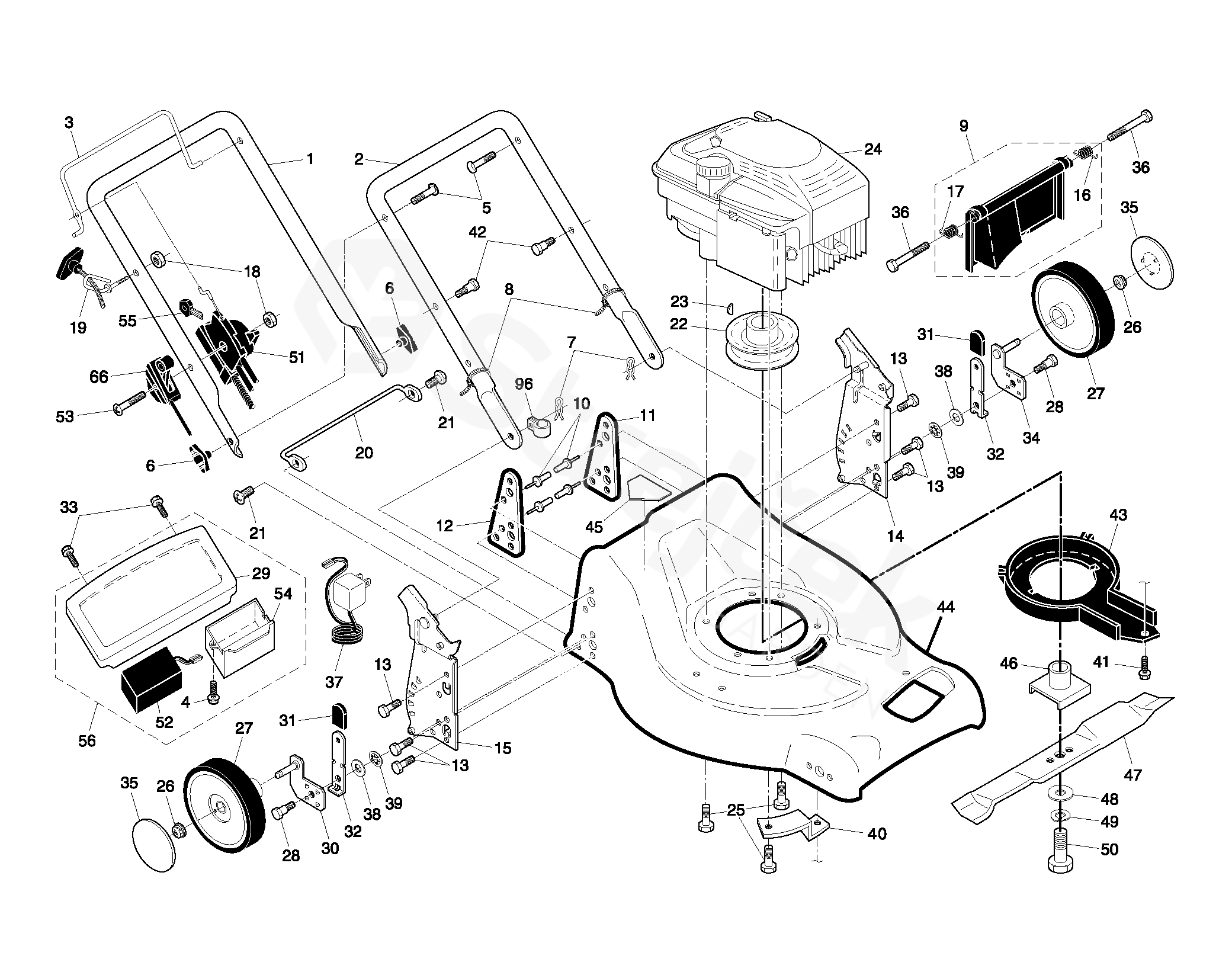

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 655 ESC, 96141005200, 2008-07

1	HANDLE	532192517
2	HANDLE	532196349
3	LOOP	532146771
4	SCREW	817411308
5	HANDLE BOLT	532191574
6	KNOB	532191938
7	PIN RETAINING SCREW	532051793
8	HOOP	532066426
9	REAR DOOR KIT (INCL. KE	532180479
10	NÝT	532128415
11	SUPPORT BRACKET LH	532182538
12	SUPPORT BRACKET RH	532182539
13	SCREW	817060410
14	HANDLE BRACKET	532190154
15	HANDLE BRACKET	532190153
16	SPRING	532180071
17	SPRING	532180072
18	MATICE	532132004
19	HOLDER	532179585
20	FOOT GUARD	532179205
21	SCREW	532054853
22	PULLEY	532184941
23	KEY	532187723
25	BOLT	532150406
26	MATICE	532083923
27	WHEEL & TIRE ASSEMBLY	532167628
28	BOLT	532189312
29	TRIMPLATE ASSEMBLY	532186153
30	AXLE ARM ASSEMBLY, RR	532195435
31	SELECTOR KNOB	532170143
32	SELECT*RPL.PAR 532175060004	532190157
33	SCREW	532141841
34	AXLE ARM ASSEMBLY, REAR	532195436
35	HUB CAP	532180660
36	BOLT	532184193
37	BATTERY CHARGER	532192436
38	WASHER	532176185
39	WASHER	532176235
40	MOUNTING BRACKET, DEBRI	532190939
41	SCREW	532192325
42	SCREW	532083816
43	COVER	532188784
44	LAWN MOWER HOUSING	532194860
45	DECAL	532182166
46	BLADE ADAPTER	532184632
47	MOWER BLADE	532175052
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	CONTROL	532189686
52	BATERIE	532189589
53	SCREW	532144929
54	BOX	532186237
55	KEY	532180331
56	TRIMPLATE, BATTERY & BA	532191252
66	THROTTLE TRIGGER	532182160
96	CLIP	532192770
	DECALC."WARNING"	532182134
