Spare parts > McCULLOCH > LAWN MOWERS: CONSUMER WALK-BEHINDS > 67521 67521, 96141005700, 2008-09 > DRIVE
Back to
DRIVE
67521 67521, 96141005700, 2008-09

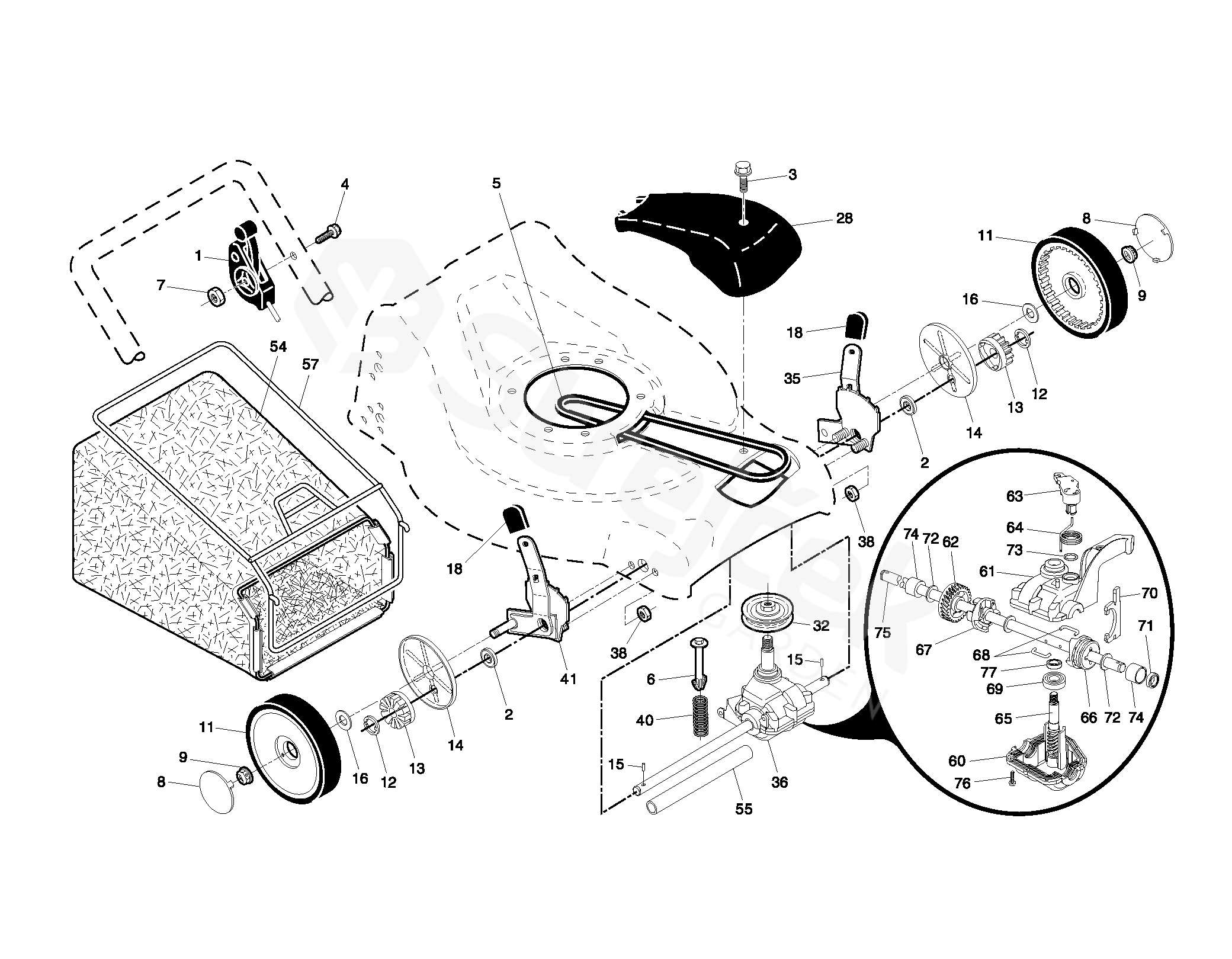

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 67521, 96141005700, 2008-09
1 CONTROL 532184588
2 BEARING 532191039
3 PAN HEAD TAPPING SCREW 532175262
4 SCREW 532158755
5 V-BELT 532175436
6 PIN RETAINING SCREW 532150495
7 MATICE 532191730
8 HUB CAP 532077400
9 MATICE 532145212
11 WHEEL 532180780
12 E-CLIP 812000058
13 PINION 532750003
14 DUST COVER 532189403
15 PAWL, DRIVE 532191017
16 PODLOŽKA 532067725
18 KNOB 532087877
28 DRIVE COVER 532181467
32 OPERATORS MANUAL 532184126
35 ADJUSTER 532195110
36 GEAR CASE 532194935
38 MATICE 873800400
40 PRUŽINA 532137090
41 ADJUSTER 532195107
54 SAC DE RAMASSAGE 532195198
55 DRIVESHAFT COVER 532175739
57 FRAME 532188815
60 CASE 532183497
61 HOUSING 532183498
62 GEAR 532183499
63 LEVER 532183500
64 SPRING 532183501
65 SHAFT 532183502
66 DOG, MOVABLE 532183503
67 DOG, FIXED 532183504
68 WIRE, FORMED 532183505
69 BALL BEARING 532183506
70 FORK 532183507
71 SEAL, OUTPUT SHAFT 532183508
72 PODLOŽKA 532183509
73 SEAL, CASE 532183510
74 BUSHING 532183511
75 SHAFT 532196613
76 SCREW 532183513
77 SEAL, INPUT SHAFT 532183514
