McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
BH55Y21 RH BH55Y21 RH, 96141000100, 2007-06
>

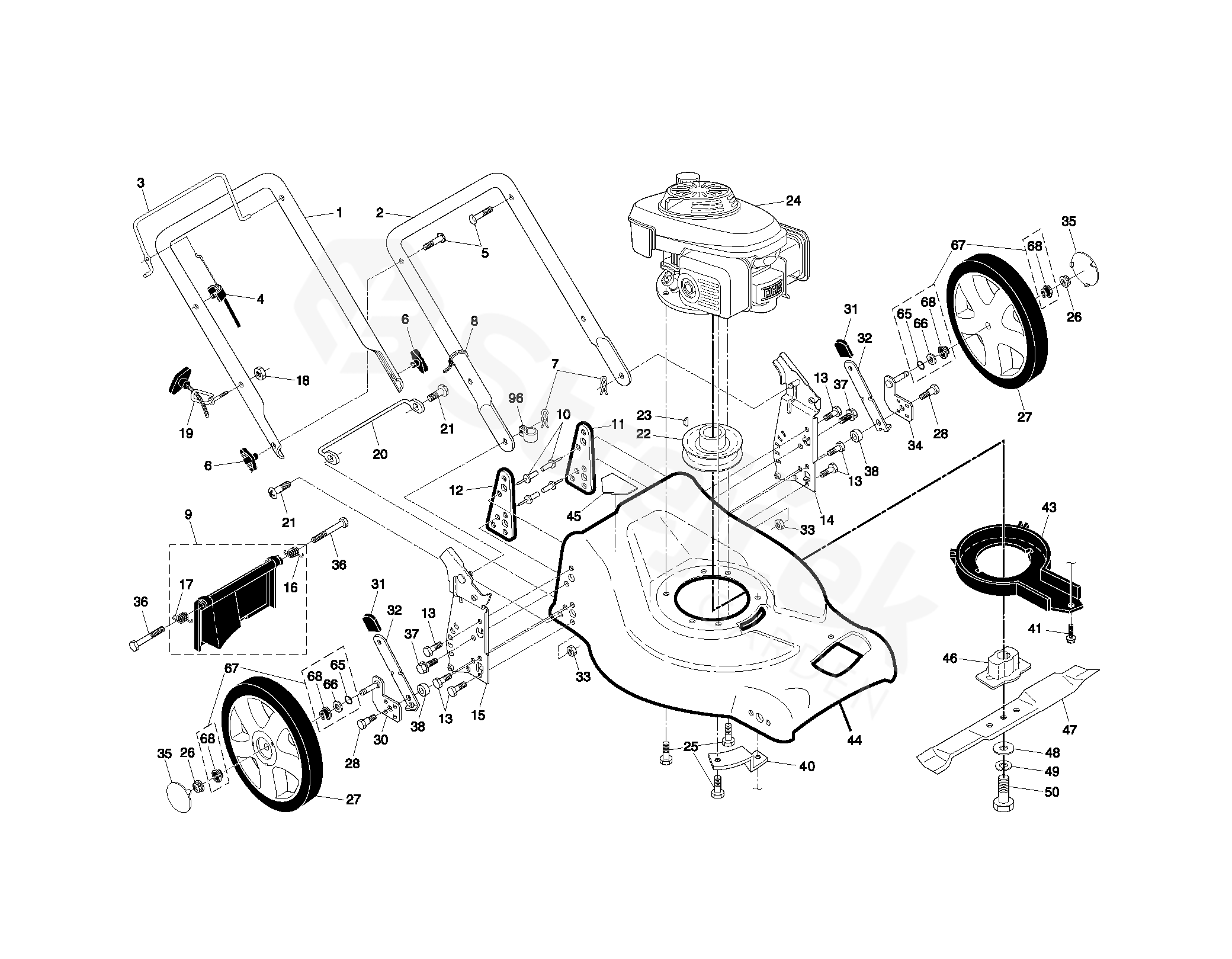

FRAME
Back to
BH55Y21 RH
BH55Y21 RH, 96141000100, 2007-06
FRAME
BH55Y21 RH
BH55Y21 RH, 96141000100, 2007-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BH55Y21 RH, 96141000100, 2007-06
1
HANDLE
532192517
2
HANDLE
532153605
3
LOOP
532146771
4
CABLE
532183567
5
HANDLE BOLT
532191574
6
KNOB
532191938
7
PIN RETAINING SCREW
532051793
8
HOOP
532066426
9
REAR DOOR KIT (INCL. KE
532180479
10
NÝT
532128415
11
SUPPORT BRACKET LH
532182538
12
SUPPORT BRACKET RH
532182539
13
SCREW
817060410
14
HANDLE BRACKET
532182543
15
HANDLE BRACKET
532182545
16
SPRING
532180071
17
SPRING
532180072
18
MATICE
532132004
19
HOLDER
532179585
20
FOOT GUARD
532179205
21
SCREW
532054583
22
PULLEY
532184941
23
KEY
532187723
25
BOLT
532150406
26
MATICE
532083923
27
WHEEL
532180552
28
BOLT
532160828
30
AXLE ARM ASSEMBLY RR
532182541
32
SELECTOR SPRING
532182537
33
BRACKET
873800500
34
AXLE ARM ASSEMBLY LR
532182542
35
HUB CAP
532191853
36
BOLT
532184193
37
SCREW
532150078
38
BOLT
819112206
40
MOUNTING BRACKET, DEBRI
532190939
41
SCREW
532192325
43
COVER
532188784
44
KIT, LAWN MOWER HOUSING
532187507
45
DECAL
532182166
46
BLADE ADAPTER
532184632
47
MOWER BLADE
532165833
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
65
O-RING
532188152
66
PODLOŽKA
532088348
67
KIT, BUSHING
532193498
68
BEARING
532193696
96
CLIP
532192770
DECALC."WARNING"
532182134
