Spare parts > McCULLOCH > LAWN MOWERS: CONSUMER WALK-BEHINDS > EDITION 1XXL EDITION 1XXL, 96141014601, 2008-09 > DRIVE
Back to

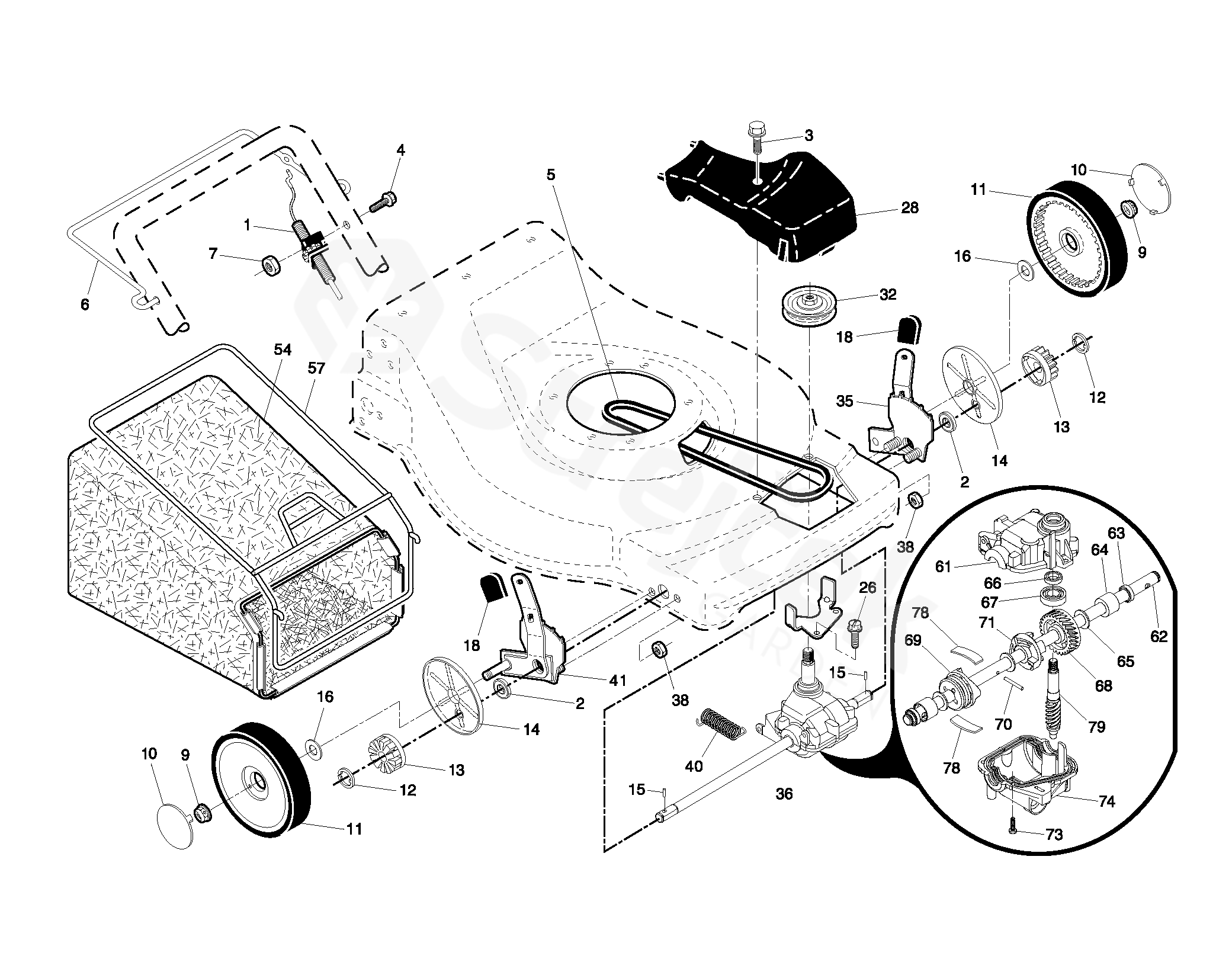

DRIVE
EDITION 1XXL EDITION 1XXL, 96141014601, 2008-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EDITION 1XXL, 96141014601, 2008-09
1 CONTROL 532407816
2 BEARING 532191039
3 PAN HEAD TAPPING SCREW 532175262
4 SCREW 532199687
5 BELT DRIVE 532196857
6 BAR 532198453
7 MATICE 532191730
9 NUT 532409149
10 HUB CAP 532180626
11 WHEEL 532180775
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532191017
16 PODLOŽKA 532067725
18 KNOB 532701037
25 GUIDE COURROIE 532411663
26 SCREW 532163409
28 DRIVE COVER 532196056
32 PULLEY 532194018
35 ADJUSTER 532409108
36 GEARCASE ASSY, COMPLETE 532404834
38 MATICE 873800400
40 PRUŽINA 532406558
41 ADJUSTER 532409109
54 BAG 532410687
57 FRAME 532407454
61 CASE 532410726
62 SHAFT 532410728
63 SEAL, OUTPUT SHAFT 532183508
64 BUSHING 532183511
65 PODLOŽKA 532183509
66 SEAL, INPUT SHAFT 532183514
67 BALL BEARING 532183506
68 GEAR 532410729
69 FIXED DOG CLUTCH 532410732
70 PEN 532410733
71 MOVEABLE DOG CLUTCH 532410730
73 SCREW 532183513
74 CASE 532410734
78 SPRING 532410731
79 SHAFT WORM 532410727
