Spare parts > McCULLOCH > LAWN MOWERS: CONSUMER WALK-BEHINDS > EDITION XXL-R EDITION XXL-R, 96141023202, 2011-06 > DRIVE
Back to

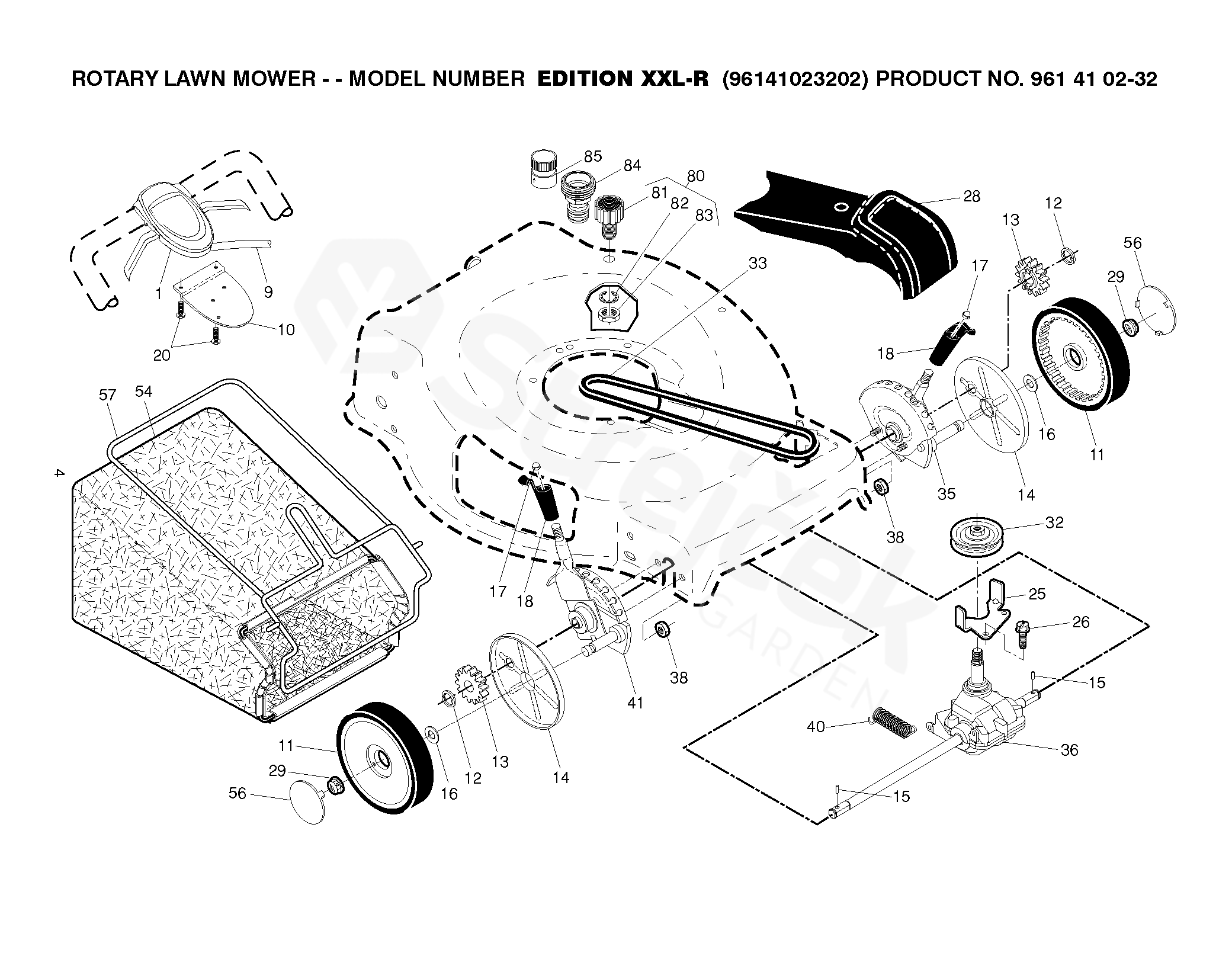

DRIVE
EDITION XXL-R EDITION XXL-R, 96141023202, 2011-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EDITION XXL-R, 96141023202, 2011-06
1 CONTROL
(Includes Cable) 		532435706
9 CABLE 532431649
10 BRACKET 532432790
11 WHEEL 532180769
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 532189403
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
17 NUT 532413808
18 KNOB 532426188
20 SCREW 532181698
25 BRACKET 532431711
26 SCREW 532163409
28 DRIVE COVER
(Includes Mounting Screw and Pushnut) 		532432675
29 NUT 532409149
32 PULLEY 532194018
33 V-BELT 532426609
35 ADJUSTER
(Includes Knob and Pushnut) 		532431125
36 GEARBOX ASSY 532424657
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTER
(Includes Knob and Pushnut) 		532431122
54 GRASSBAG 532431555
56 HUB CAP 532419132
57 GRASSBAG 532419951
80 WATER CONNECTOR 532421114
81 HOSE FITTING 532419735
82 LOCKWASHER 532415585
83 LOCKING NUT 532415586
84 ADAPTER 532432066
85 COUPLING 532416405
