McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>

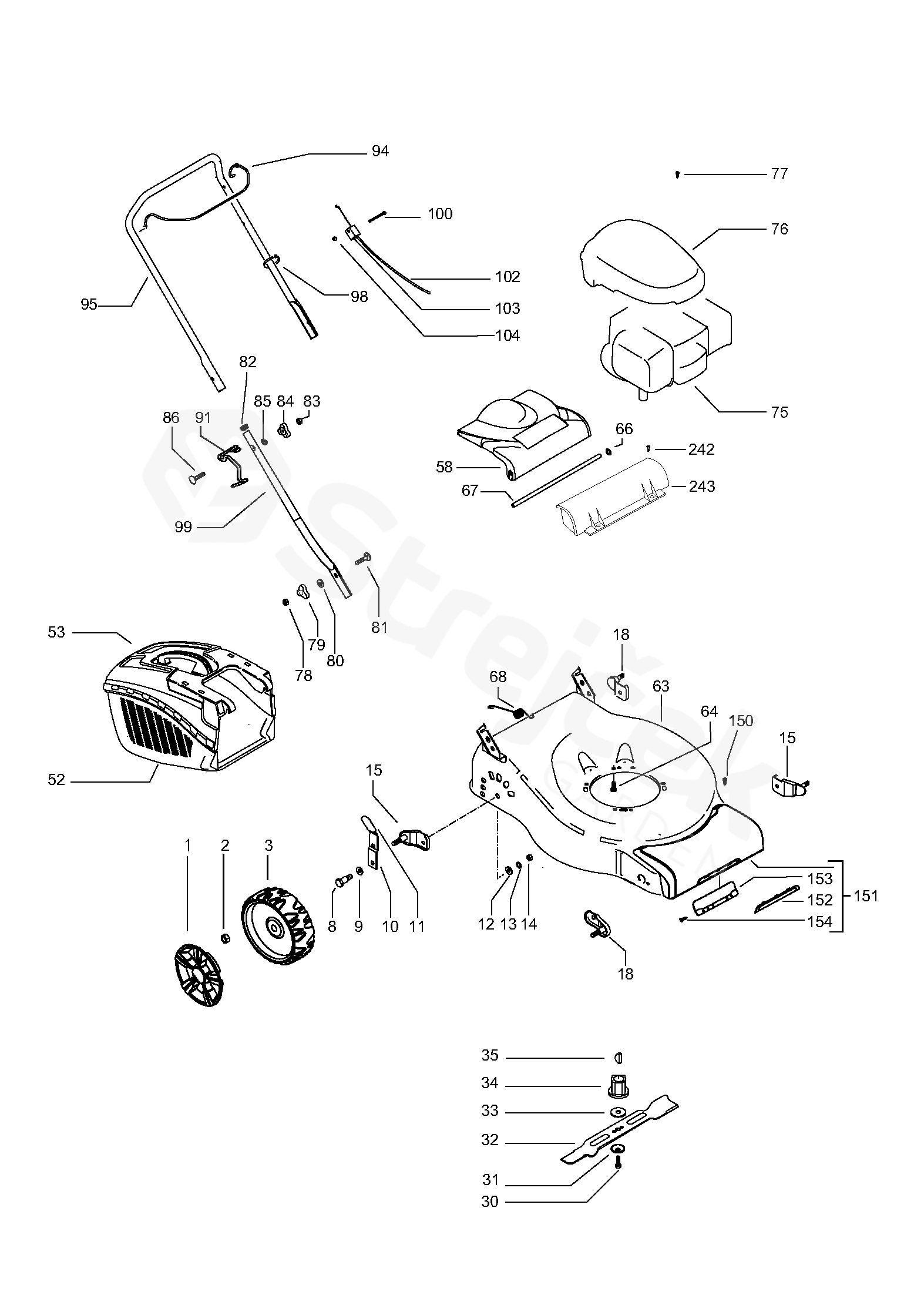

M40-125 M40-125, 96717460105, 2016-12
>
PRODUCT COMPLETE
Back to
M40-125
M40-125, 96717460105, 2016-12
PRODUCT COMPLETE
M40-125
M40-125, 96717460105, 2016-12
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M40-125, 96717460105, 2016-12
1
HUB CAP
d.170
574396301
2
MATICE
504857801
3
WHEEL
d.170
574414904
8
SCREW
M10x26.4
531204912
9
WASHER
588234202
10
LEVER
586932801
11
KNOB
574610501
12
WASHER
531207989
13
PODLOŽKA
531208974
14
NUT
M10x26.4
531207978
15
SUPPORT WHEEL
504851601
18
SUPPORT WHEEL
504851501
30
SCREW
3/8"
531208008
31
WASHER
531207237
32
MOWER BLADE
587159010
33
WASHER
531207243
34
ADAPTER
531207242
35
KEY
505290901
52
GRASSBAG
lower half
574610401
53
GRASSBAG
upper half
574610301
58
HATCH
574610201
63
CHASSIS
575742602
64
BOLT
3/8"
532150406
66
LOCKWASHER
584816903
67
SHAFT
531205060
68
SPRING
531205999
75
TBD
engine, Briggs & Stratton, model number 08P5020005H1
N/A
76
SHROUD
580445601
77
SCREW
532181698
78
NUT
M8
531207982
79
WING NUT
531204923
80
WASHER
531204922
81
SCREW
M8x25
531204921
82
PLUG
531208950
83
NUT
M8
531207982
84
WING NUT
531204923
85
WASHER
531207090
86
SCREW
M8x50
531207089
91
HOOK
504708601
94
HANDLE
504708304
95
HANDLE
upper half
504708001
98
CABLE HOLDER
531205581
99
HANDLE
lower half
531206071
100
SCREW EHHM
580833601
102
CABLE ASSY
582192102
103
BRACKET
531208043
104
HEXAGON LOCKING NUT
581551201
150
SCREW CRPANT
M5x16
576047401
151
FRONT COVER ASSY
575562004
152
COVER
574375201
153
ATTACHMENT PLATE
574721701
154
SCREW ITXPANT
575955701
242
SCREW
M5x8
576136006
243
SEAL
579300901
