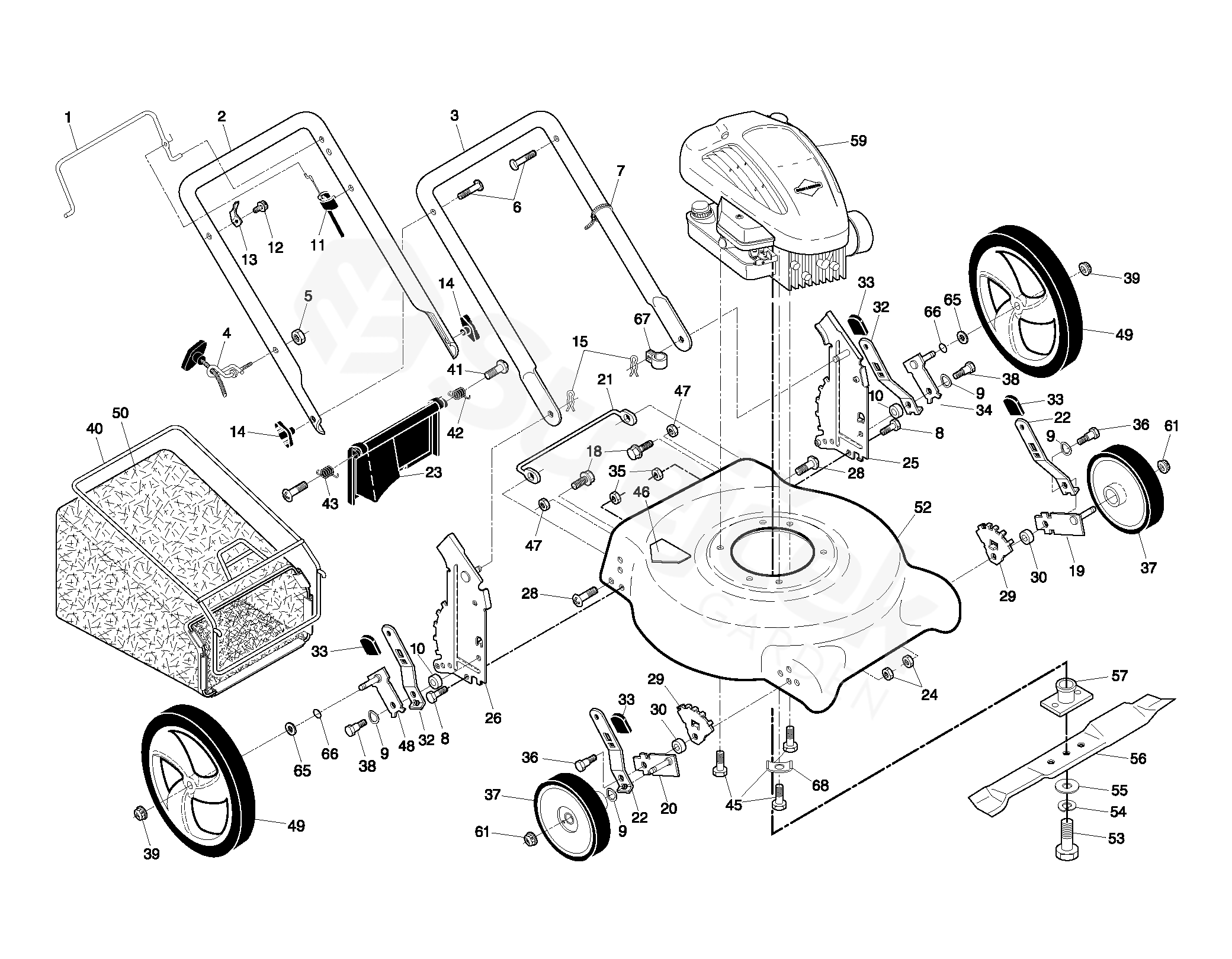

M4053 CM M4053 CM, 96131001901, 2007-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M4053 CM, 96131001901, 2007-04

1	BAIL	532195574
2	HANDLE	532195547
3	HANDLE	532174291
4	GUIDE	532194788
5	MATICE	532132004
6	HANDLE BOLT	532191574
7	HOOP	532066426
8	SCREW	874780512
9	WASHER	532401630
10	SPACER	532401629
11	CABLE	532176556
12	SCREW	532750634
13	BRACKET	532125203
14	KNOB	532191938
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE	532406689
20	AXLE	532406690
21	FOOTGUARD	532169423
22	SPRING	532406428
23	DEFLECTOR	532410603
24	NUT	532166785
25	BRACKET	532410596
26	BRACKET	532410597
28	SCREW	532054583
29	WHEEL ADJ BRACKET FRONT	532410594
30	SPACER	532401629
32	SPRING	532410595
33	KNOB	532087877
34	AXLE	532410600
35	NUT	532166785
36	BOLT	532401638
37	WHEEL & TIRE ASSEMBLY	532197985
38	BOLT	532401638
39	NUT	532401949
40	FRAME	532401808
41	BOLT	532184193
42	SPRING	532405421
43	SPRING	532405423
45	BOLT	532150406
46	DECAL	532182166
47	BOLT	532751153
48	AXLE	532410601
49	WHEEL	532403167
50	GRASSBAG	532402024
52	HOUSING	532409557
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532199377
57	ADAPTER	532193825
61	MATICE	532409148
65	PODLOŽKA	532088348
66	O-KROUŽEK	532197480
67	CLIP	532197991
68	WASHER	532125078
	LABEL WARNING	532182191
