Spare parts - Partlist - M4553 CMHW M4553 CMHW, 96131001403, 2007-05 - PRODUCT COMPLETE

Everything for your machines

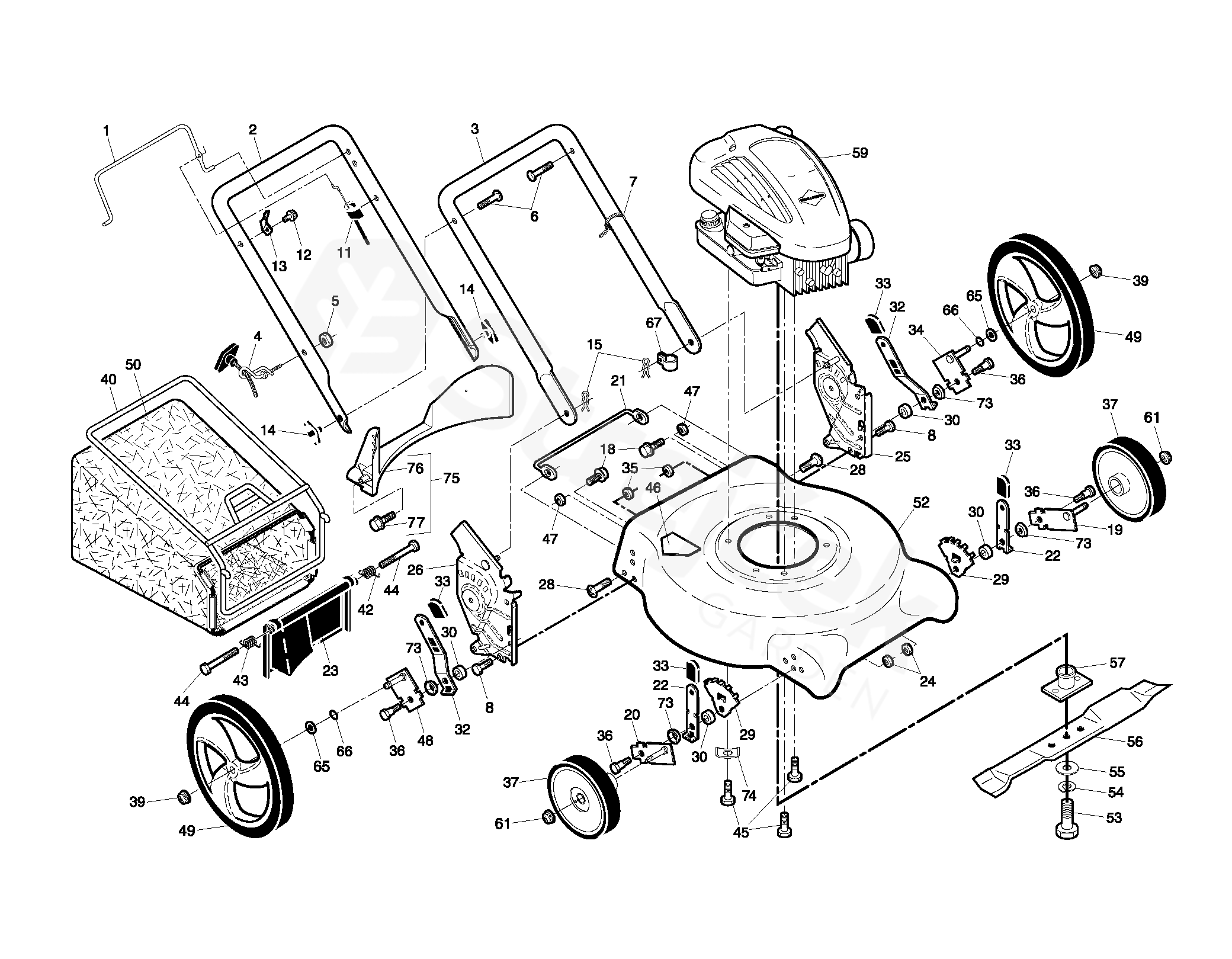

M4553 CMHW M4553 CMHW, 96131001403, 2007-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M4553 CMHW, 96131001403, 2007-05

1	BAIL	532195574
2	HANDLE	532195547
3	HANDLE	532174291
4	GUIDE	532194788
5	MATICE	532132004
6	HANDLE BOLT	532191574
7	HOOP	532066426
8	SCREW	874780512
11	CABLE	532176556
12	SCREW	532750634
13	BRACKET	532125203
14	KNOB	532191938
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE	532406689
20	AXLE	532406690
21	FOOTGUARD	532169423
22	SPRING	532406428
23	DEFLECTOR	532410603
24	NUT	532166785
25	HANDLE BRACKET	532413960
26	HANDLE BRACKET	532413962
28	SCREW	532054583
29	BRACKET	532410694
30	SPACER	532401629
32	SPRING	532410595
33	KNOB	532087877
34	AXLE	532410600
35	NUT	532166785
36	BOLT	532401638
37	WHEEL	532403495
39	NUT	532409149
40	FRAME	532401808
41	BOLT	532184193
42	SPRING	532405421
43	SPRING	532405423
45	BOLT	532150406
46	DECAL	532182166
47	NUT	873751153
48	AXLE	532410601
49	WHEEL	532403509
50	GRASSBAG	532402024
52	KIT	532413900
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532199377
57	ADAPTER	532193825
59	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 Engine, Briggs & Stratton, Model Number 10G902 (Order parts from engine manufacturer)	000000000
61	MATICE	532409148
65	PODLOŽKA	532088348
66	O-KROUŽEK	532197480
67	CLIP	532197991
73	WASHER	532401630
74	WASHER	532125078
75	KIT	532413693
76	BAFFLE.REAR.PLASTIC.21.RD.ECON	532410589
77	SCREW	817411312
	LABEL WARNING	532182191
