McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M46-110 CLASSIC M46-110 CLASSIC, 96762150100, 2016-02
>
PRODUCT COMPLETE
Back to
M46-110 CLASSIC
M46-110 CLASSIC, 96762150100, 2016-02
PRODUCT COMPLETE
M46-110 CLASSIC
M46-110 CLASSIC, 96762150100, 2016-02

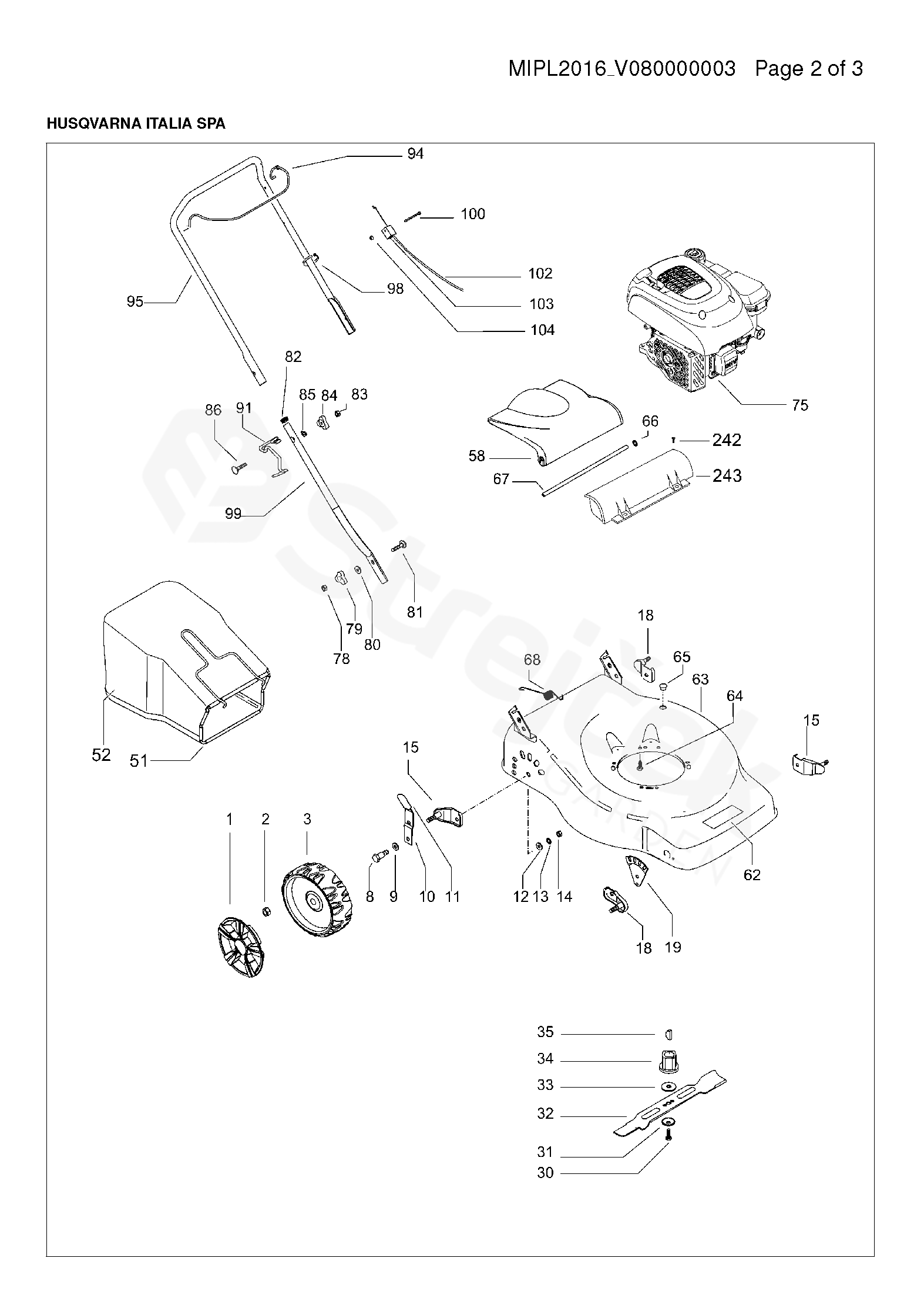

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M46-110 CLASSIC, 96762150100, 2016-02
1
HUB CAP
574396301
2
MATICE
504857801
3
WHEEL
574414904
8
SCREW
531204912
9
WASHER
588234202
10
LEVER
586932801
11
KNOB
574610501
12
WASHER
531207989
13
PODLOŽKA
531208974
14
NUT
531207978
15
SUPPORT WHEEL
504851601
18
SUPPORT WHEEL
504851501
19
TOOL
531212987
30
SCREW
531208008
31
WASHER
531207237
32
MOWER BLADE
581188910
33
WASHER
531207243
34
ADAPTER
531207242
35
KEY
505290901
51
FRAME
531213467
52
COLLECTOR
579816301
58
HATCH
574610201
62
DECAL
581021701
63
COVER
531212477
64
SCREW
531212851
65
PLUG
531205318
66
LOCKWASHER
584816903
67
SHAFT
531205060
68
SPRING
531205999
75
ENGINE ASSY
579820201
78
NUT
531207982
79
WING NUT
531204923
80
WASHER
531204922
81
SCREW
531204921
82
PLUG
531208950
83
NUT
531207982
84
WING NUT
531204923
85
WASHER
531207090
86
SCREW
531207089
91
HOOK
504708601
94
HANDLE
504708304
95
HANDLE
504708001
98
CABLE HOLDER
531205581
99
HANDLE
531206071
100
SCREW EHHM
580833601
102
BRAKE WIRE
531213522
103
BRACKET
531208043
104
HEXAGON LOCKING NUT
581551201
242
SCREW
576136006
243
SEAL
579300901
