McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M46-110 R CLASSIC M46-110 R CLASSIC, 96762160100, 2016-03
>
PRODUCT COMPLETE
Back to
M46-110 R CLASSIC
M46-110 R CLASSIC, 96762160100, 2016-03
PRODUCT COMPLETE

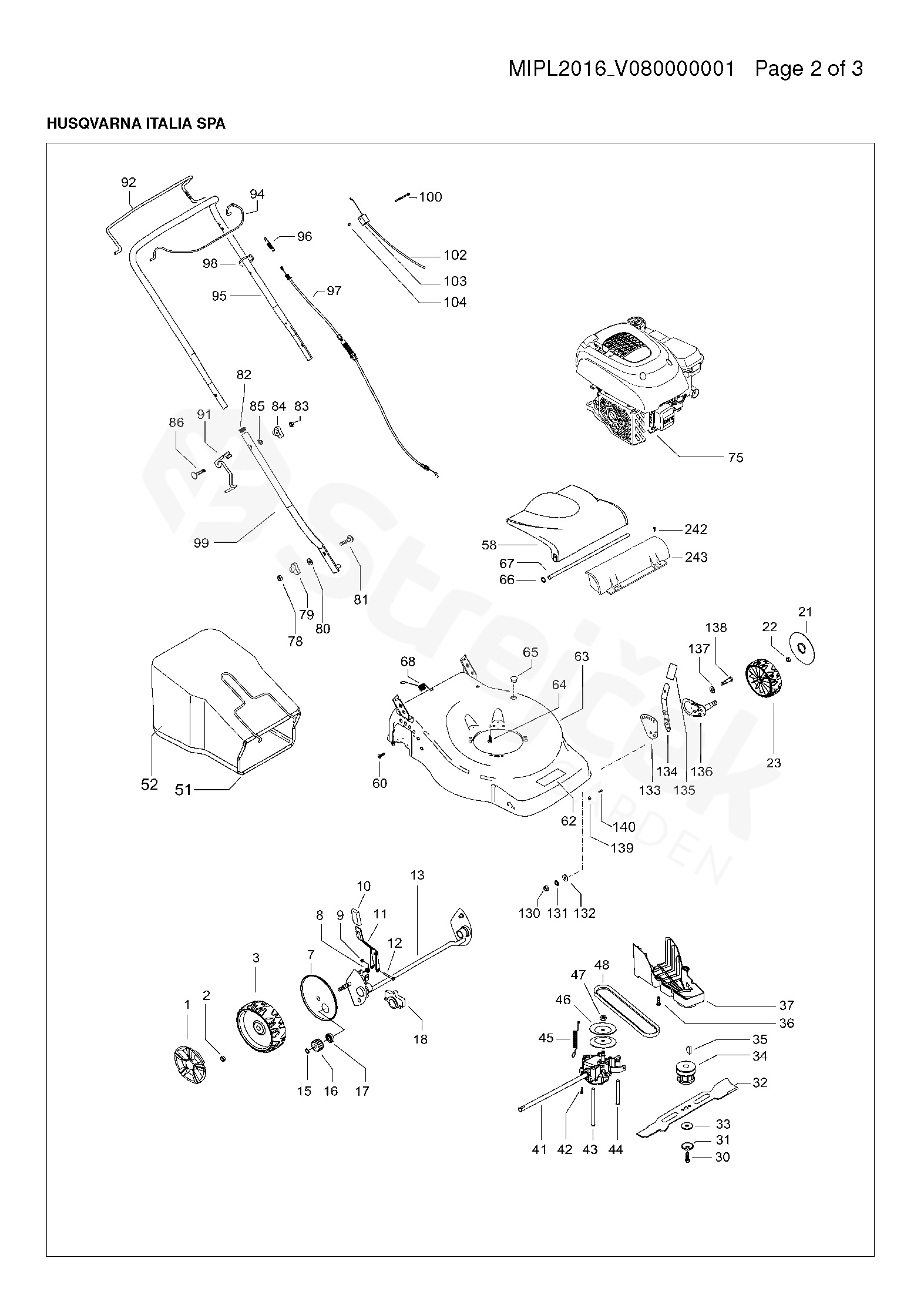

M46-110 R CLASSIC
M46-110 R CLASSIC, 96762160100, 2016-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M46-110 R CLASSIC, 96762160100, 2016-03
1
HUB CAP
diam. 210
574396501
2
MATICE
M8, selflocking, flanged
504857801
3
WHEEL
diam. 210
574415204
7
DUST COVER
504827301
8
SPRING
583951302
9
NUT
M5
531208492
10
KNOB
wheel regulator
574610501
11
LEVER ASSY
wheel regulator
581178601
12
SCREW
M5x45, self threading
538235807
13
REAR AXLE
rear
504800101
15
PODLOŽKA
531208772
16
PASTOREK
544342301
17
BEARING
531208778
18
SUPPORT
rear axle
531205944
21
HUB CAP
diam. 190
574396401
22
MATICE
M8, selflocking, flanged
504857801
23
WHEEL
diam. 190
574415004
30
SCREW
3/8"
531208008
31
WASHER
531207237
32
MOWER BLADE
581188910
33
WASHER
531207243
34
BLADE SUPPORT
581843001
35
KEY
505290901
36
SCREW
5x10
531207856
37
BELT GUARD
544462202
41
GEARBOX
544343203
42
SCREW
4x16, self threading
510037501
43
BELT GUIDE
544934401
44
BELT GUIDE
544934301
45
SPRING
gear box
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
Z28 10X710
504034801
51
FRAME
531213467
52
COLLECTOR
579816301
58
HATCH
574610201
60
SCREW
531206677
62
DECAL
581021701
63
DECK
531213911
64
SCREW
3/8" + splitwasher
531212851
65
PLUG
531205318
66
LOCKWASHER
star lock
584816903
67
SHAFT
safety flap
531205060
68
SPRING
531205999
75
ENGINE ASSY
Rato RV110
579820201
78
NUT
M8
531207982
79
WING NUT
531204923
80
WASHER
531204922
81
SCREW
M8x25
531204921
82
PLUG
531208950
83
NUT
M8
531207982
84
WING NUT
531204923
85
WASHER
531207090
86
SCREW
M8x50
531207089
91
HOOK
starter cable guide
504708601
92
HANDLE
clutch
504708401
94
HANDLE
brake
504708304
95
HANDLE
upper half
504708001
96
SPRING
clutch
580761901
97
CABLE
544908001
98
CABLE HOLDER
531205581
99
HANDLE
lower half
531206071
100
SCREW EHHM
M5x40
580833601
102
BRAKE WIRE
531213522
103
CASING
531212689
104
HEXAGON LOCKING NUT
581551201
130
NUT
M10
531207978
131
PODLOŽKA
531208974
132
WASHER
531207989
133
INDEX PLATE
wheel adj
576555001
134
LEVER
wheel regulator
544452501
135
KNOB
wheel regulator lever
574610501
136
SUPPORT WHEEL
504851401
137
WASHER
588234201
138
SCREW
M10
531204912
139
NUT
M5
531205213
140
SCREW
M5
531207270
242
SCREW
576136006
243
SEAL
579300901
MULCH PLUG Accessory kit - not shown
Accessory kit - not shown
577616014
