Spare parts > McCULLOCH > LAWN MOWERS: CONSUMER WALK-BEHINDS > M56-190WFPX M56-190WFPX, 96121002600, 2014-02 > DRIVE
Back to

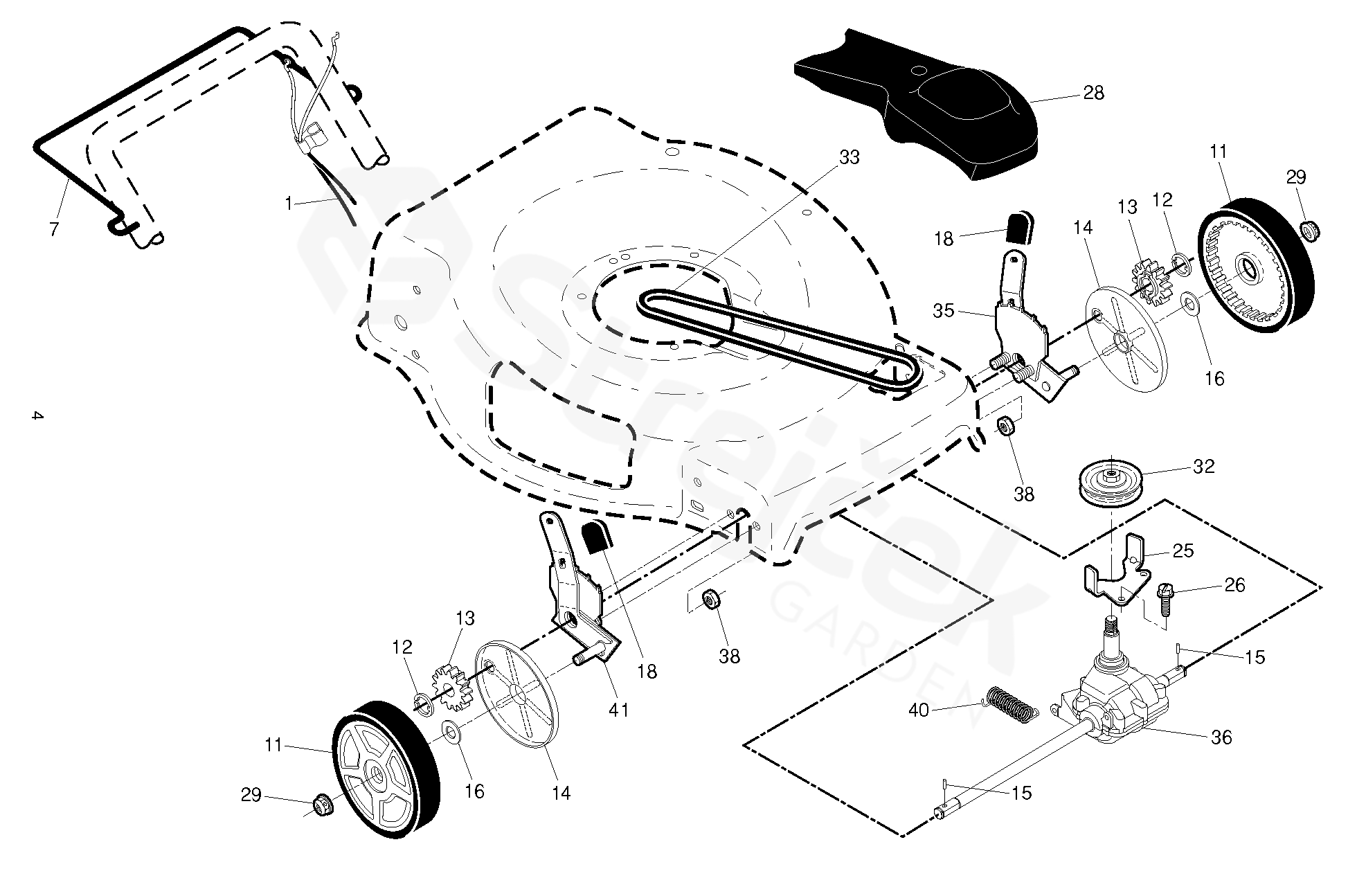

DRIVE
M56-190WFPX M56-190WFPX, 96121002600, 2014-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For M56-190WFPX, 96121002600, 2014-02
1 CABLE 585040701
7 BAIL 585123102
11 WHEEL ASSY 581009205
12 E-CLIP 812000058
13 PASTOREK 532403849
14 DUST COVER 581840401
15 PAWL, DRIVE 532404845
16 PODLOŽKA 532067725
18 KNOB 532087877
25 BRACKET 532431711
26 SCREW 532163409
28 FRONT COVER ASSY 580992001
29 MATICE 532409148
32 PULLEY 532443262
33 BELT 532196853
35 ADJUSTER
INCLUDES BEARING, KEY #17 		581497904
36 GEARBOX 532424741
38 MATICE 532191730
40 PRUŽINA 532406558
41 ADJUSTER
INCLUDES BEARING, KEY #17 		581497903
