McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
M56-675 CMD M56-675 CMD, 96141016600, 2008-03
>

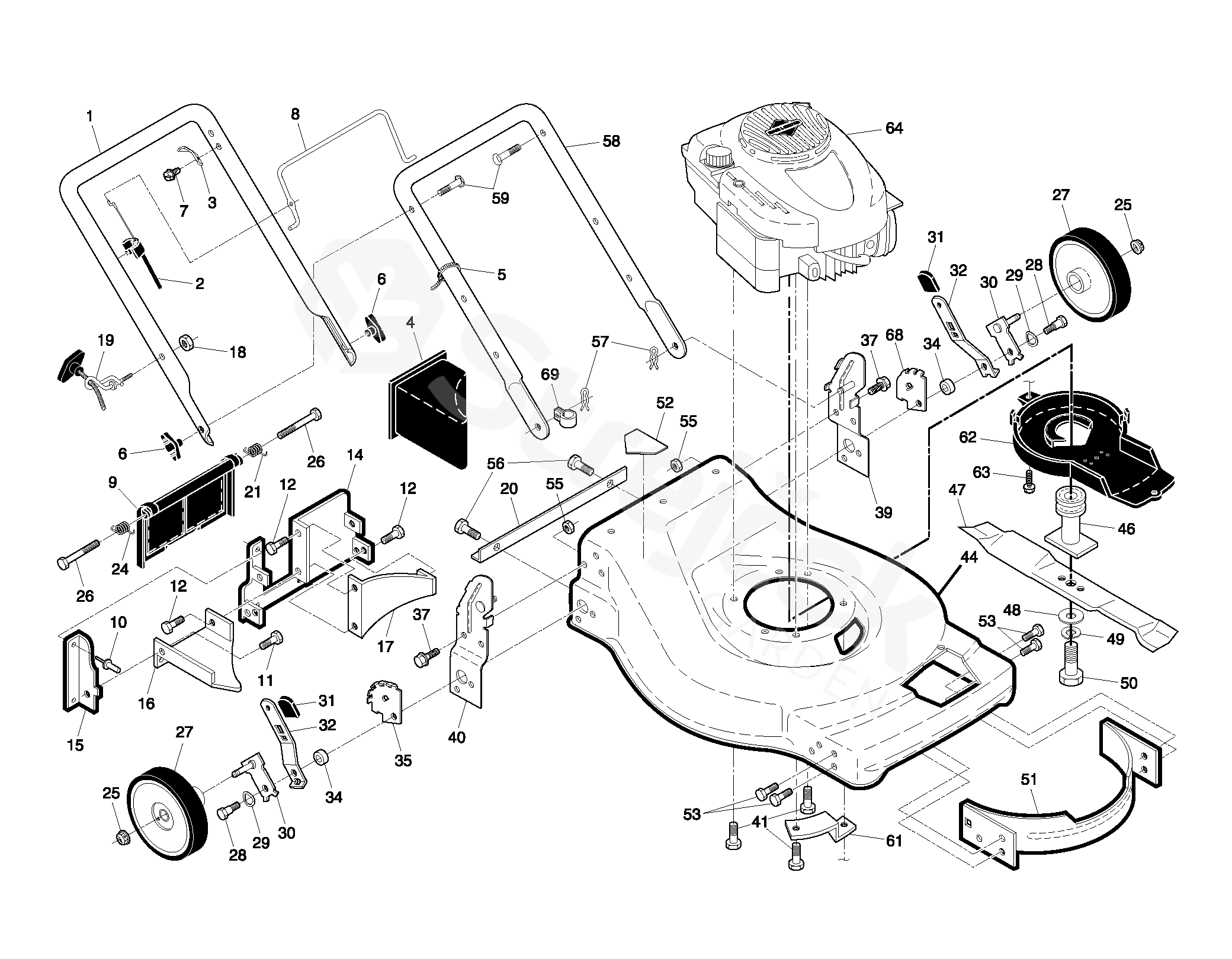

FRAME
Back to
M56-675 CMD
M56-675 CMD, 96141016600, 2008-03
FRAME
M56-675 CMD
M56-675 CMD, 96141016600, 2008-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M56-675 CMD, 96141016600, 2008-03
1
HANDLE
532403298
2
CABLE
532183567
3
DESKA
532125162
4
MULCHER PLUG
532166649
5
HOOP
532066426
6
KNOB
532191938
7
SCREW
532750634
8
CONTROL
532198464
9
DOOR ASSY
532408492
10
NÝT
532128415
11
SCREW
532150050
12
SCREW
532054583
14
PLATE
532198465
15
SIDE BAFFLE
532411334
16
PLATE
532177133
17
PLATE
532148941
18
MATICE
532132004
19
GUIDE
532194788
20
PROTECTOR
532147625
21
SPRING
532405421
24
SPRING
532405423
25
MATICE
532409148
26
BOLT
532184193
27
WHEEL
532403114
28
BOLT
532142748
29
WASHER
532401630
30
AXLE
532407871
31
KNOB
532190069
32
SPRING
532406428
34
SPACER
532401629
35
WHEEL ADJUSTING BRACKET
532410624
37
SCREW
532150078
39
BRKT.ASM.HANDLE.LT
532197028
40
RT HANDLE BRKT
532197027
41
BOLT
532150406
44
CHASSIS
532416022
46
ADAPTER
532194037
47
MOWER BLADE
532199379
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
51
PLATE
532170491
52
DECAL
532182166
53
SCREW
817600406
55
MATICE
873930600
56
SCREW
532146694
57
PIN RETAINING SCREW
532051793
58
HANDLE
532155044
59
HANDLE BOLT
532191574
61
MOUNTING BRACKET, DEBRI
532190939
62
DEBRIS SHIELD
532405842
63
SCREW
532192325
68
WHEEL ADJUSTING BRACKET LH
532410623
69
CLIP
532197991
LABEL WARNING
532182191
