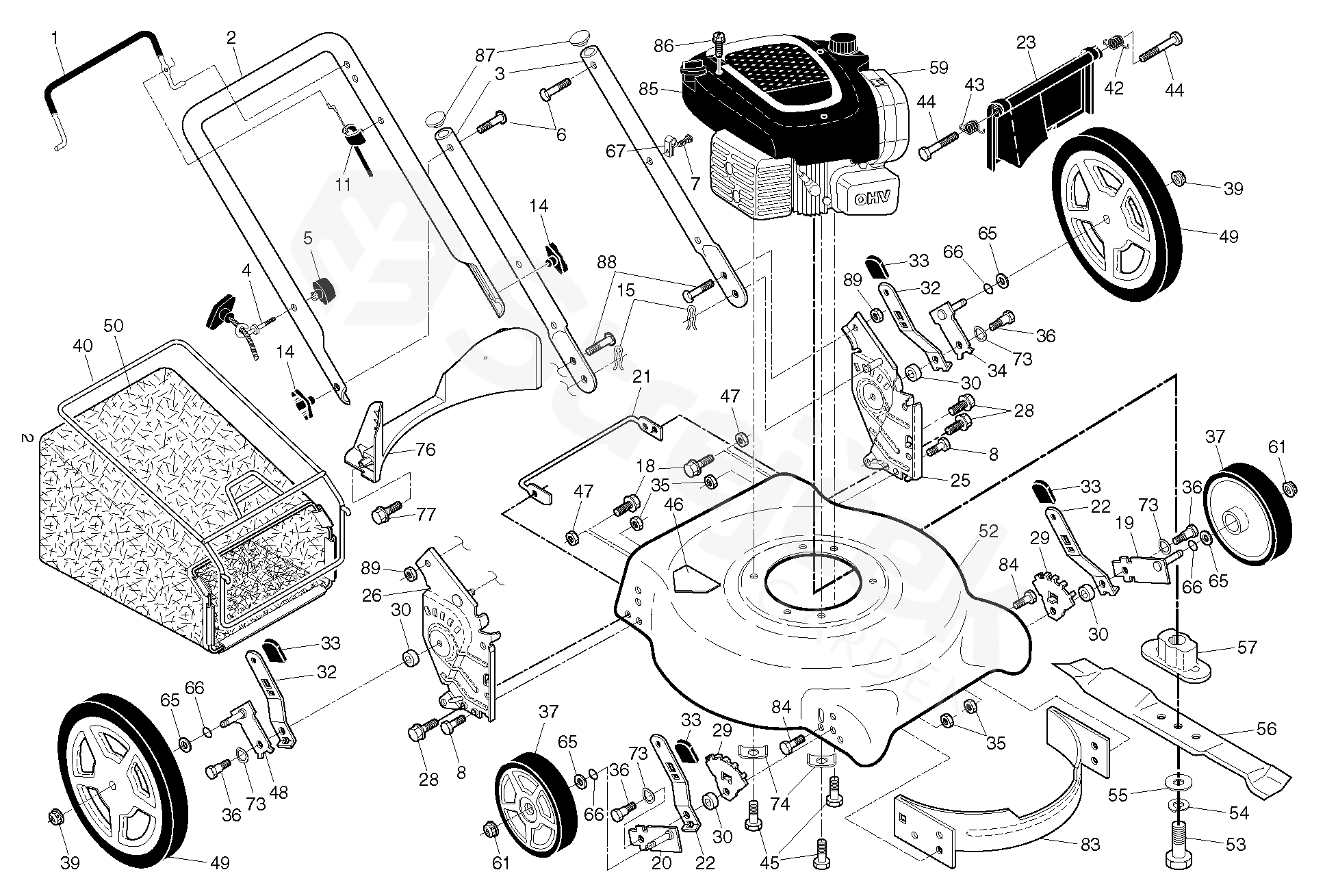

Spare parts - Partlist - M53-140W M53-140W, 96131003305, 2015-09 - FRAME & ENGINE

Everything for your machines

M53-140W M53-140W, 96131003305, 2015-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M53-140W, 96131003305, 2015-09

1	BAIL ARM ASSY	587689303
2	HANDLE	585854802
3	HANDLE	580638602
4	GUIDE	581902101
5	KNOB	581912601
6	HANDLE BOLT	532191574
7	FASTENER	532428124
8	SCREW	874780512
11	CABLE	532408047
14	KNOB	532191938
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE LH	532406689
20	AXLE RH	532406690
21	GUARD	532436119
22	SPRING FRONT	532406428
23	DEFLECTOR	532410603
25	HANDLE SUPPORT ASSY LH LH	588912405
26	HANDLE SUPPORT ASSY RH RH	588912402
28	SCREW	817060410
29	WHEEL ADJ BRACKET FRONT FRONT	532410594
30	SPACER	532401629
32	SPRING REAR	532441559
33	KNOB	532087877
34	ARM	588912602
35	NUT	532426589
36	BOLT	532401638
37	WHEEL ASSY	581009405
39	NUT	532409149
40	FRAME	532411949
42	SPRING LH	532405421
43	SPRING RH	532405423
44	BOLT	532184193
45	BOLT	532150406
46	DECAL	532182166
47	BOLT	532751153
48	ARM	588912602
49	WHEEL	588154803
50	GRASS BAG ASSY	581002103
52	KIT	532441962
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532199377
57	ADAPTER	581547901
59	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 9P602-0062-H1 FOR SERVICE & PARTS 1-800-233-3723	000000000
61	MATICE	532409148
65	PODLOŽKA	532088348
66	O-KROUŽEK	532197480
67	CLIP	532197991
73	WASHER	532401630
74	WASHER	532125078
76	BAFFLE.REAR.PLASTIC.21.RD.ECON	532410589
77	SCREW	817411312
83	BAFFLE	532428501
84	BOLT	817000510
85	SHROUD	580445601
86	SCREW	532181698
87	PLUG	532437516
88	BOLT	586212501
89	MATICE	873970500
	BAG NOT SHOWN NOT SHOWN	581276301
