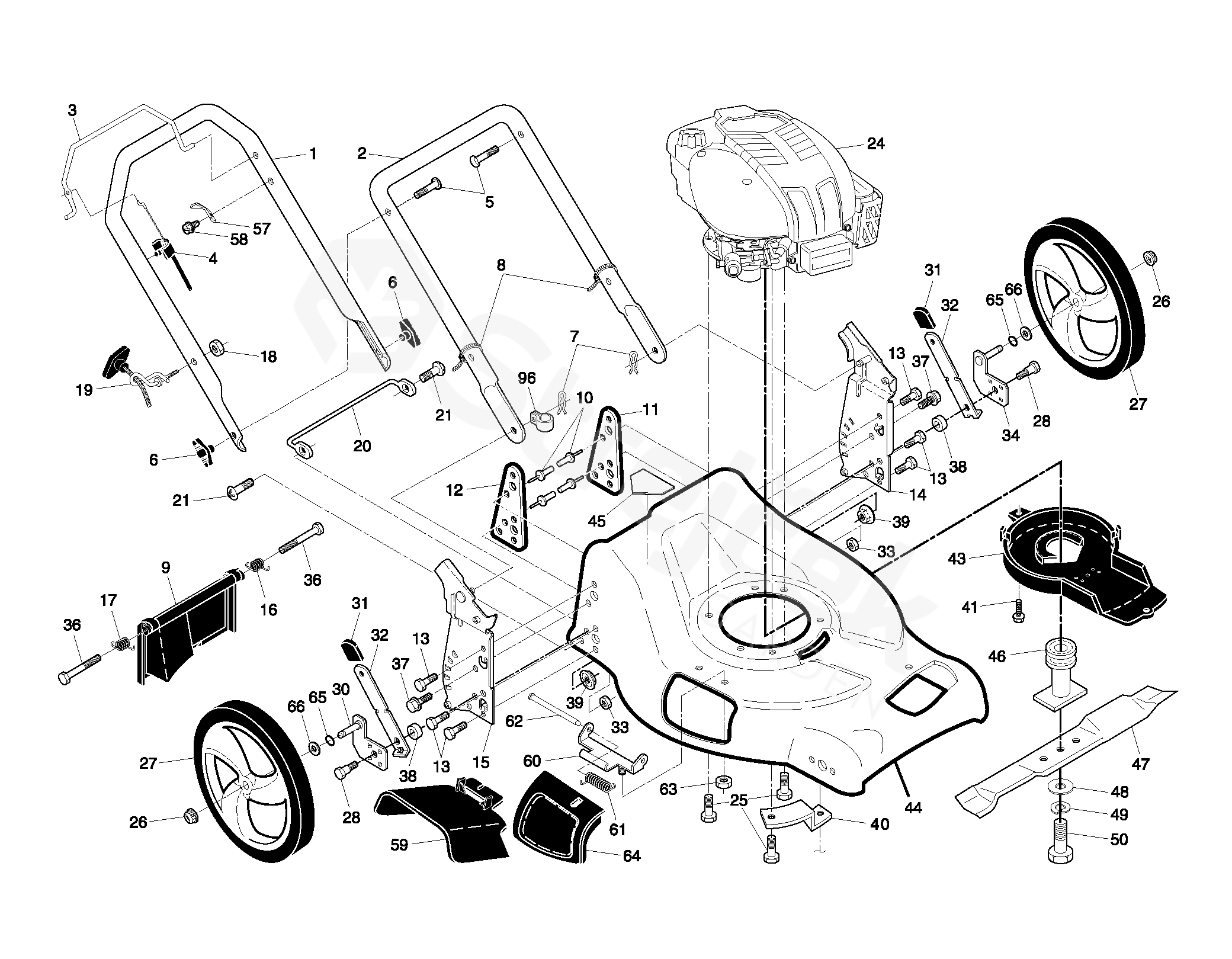

M7053 D M7053 D, 96141015000, 2008-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M7053 D, 96141015000, 2008-08

1	HANDLE	532402937
2	HANDLE	532153605
3	CONTROL BAR	532189903
4	CABLE	532183567
5	HANDLE BOLT	532191574
6	KNOB	532191938
7	PIN RETAINING SCREW	532051793
8	HOOP	532066426
9	DEFLECTOR	532406985
10	NÝT	532128415
11	SUPPORT BRACKET LH	532406573
12	SUPPORT BRACKET RH	532406574
13	SCREW	817060410
14	HANDLE BRACKET	532182543
15	HANDLE BRACKET	532182545
16	PRUŽINA	532405417
17	PRUŽINA	532405418
18	MATICE	532132004
19	GUIDE	532194788
20	PROTECTION	532410536
21	SCREW	532054583
25	BOLT	532150406
26	MATICE	532145212
27	WHEEL	532403509
28	BOLT	532160828
29	MOUNTING BRACKET, DEBRI	532190939
30	BRACKET	532402571
31	KNOB	532087877
32	SELECT*RPL.PAR 532175060004	532190157
33	BRACKET	873800500
34	BRACKET	532402572
36	BOLT	532184193
37	SCREW	874780512
38	BOLT	819112206
39	NUT	532198541
41	SCREW	532192325
43	BELT COVER	532405845
44	CHASSIS	532409265
45	DECAL	532182166
46	ADAPTER	532404633
47	MOWER BLADE	532199377
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
59	CLIPPING DEFLECTOR	532175071
60	HINGE	532175735
61	HINGE	532193000
62	ROD	532175650
63	MATICE	873800400
64	PLUG	532175066
65	O-KROUŽEK	532197480
66	PODLOŽKA	532088348
96	CLIP	532197991
	DECALC."WARNING"	532182134
