Spare parts > McCULLOCH > LAWN MOWERS: CONSUMER WALK-BEHINDS > M53-160 CMD M53-160 CMD, 96141010707, 2010-06 > FRAME
Back to

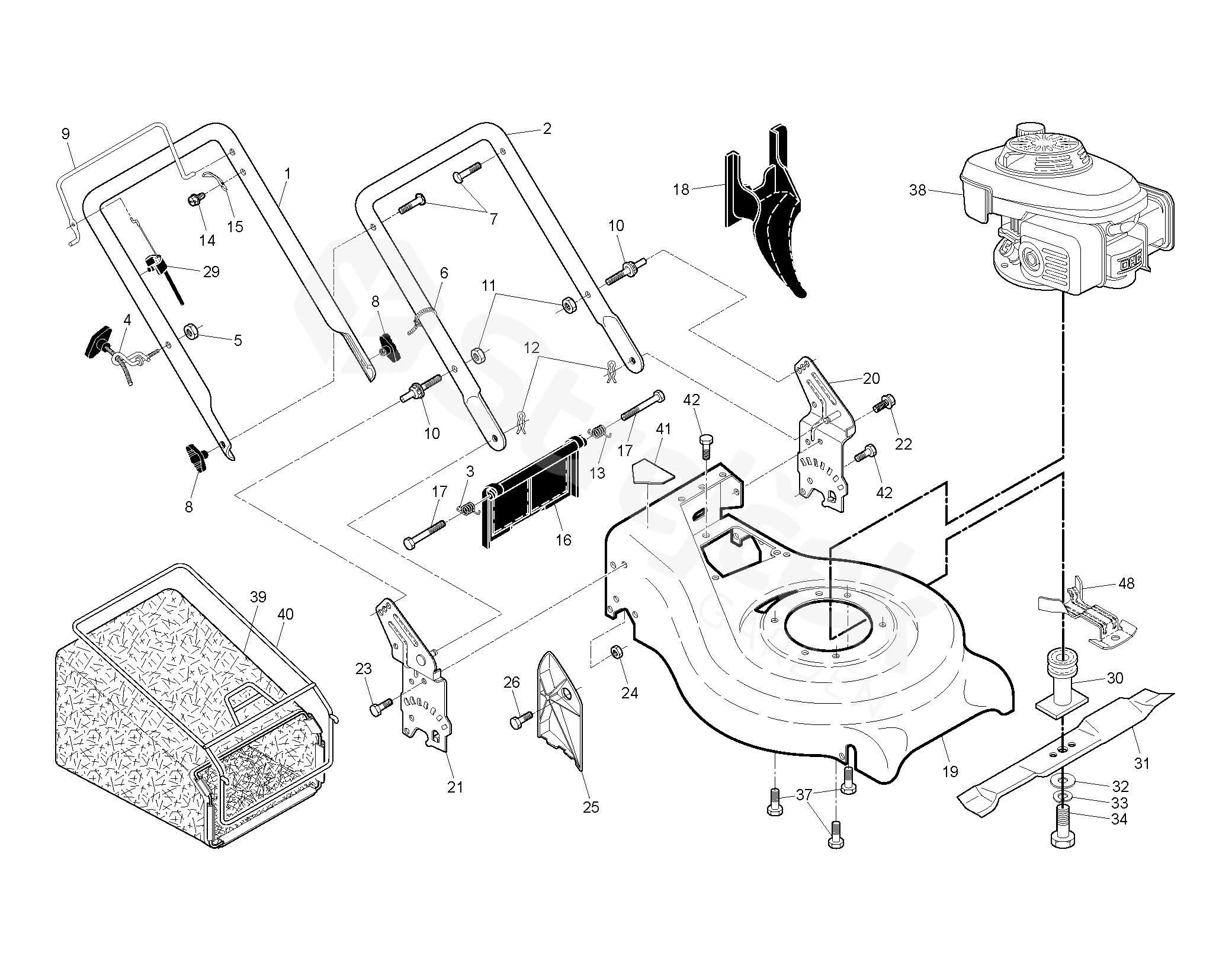

FRAME
M53-160 CMD M53-160 CMD, 96141010707, 2010-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For M53-160 CMD, 96141010707, 2010-06
1 HANDLE UPPER 532427975
2 HANDLE 532196005
3 SPRING 532405416
4 GUIDE 532194788
5 MATICE 532132004
6 HOOP 532066426
7 HANDLE BOLT 532191574
8 KNOB 532087692
9 BAR 532427739
10 BOLT 532188821
11 BOLT 532751153
12 PIN RETAINING SCREW 532051793
13 SPRING 532405415
14 SCREW 532750634
15 DESKA 532125162
16 DEFLECTOR 532408888
17 BOLT 532184193
18 PLUG 532198170
19 KIT 532409692
20 BRACKET 532403296
21 BRACKET 532403297
22 BOLT 532428867
23 BOLT 532163183
24 BRACKET 873800500
25 PLATE 532161333
26 SCREW 532163409
29 CABLE 532191221
30 ADAPTER 532421176
31 MOWER BLADE 532199377
32 PODLOŽKA 532851074
33 PODLOŽKA 532850263
34 SCREW 532851084
37 BOLT 532150406
39 GBAG.93231916S.BLK.MCC*SUBS/2* 532410682
40 FRAME 532411951
41 DECAL 532182166
42 SCREW 817060410
48 KEEPER 532429001
DECALC."WARNING" 532182134
