McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>
MC55Y21 RA MC55Y21 RA, 96141002803, 2007-01
>

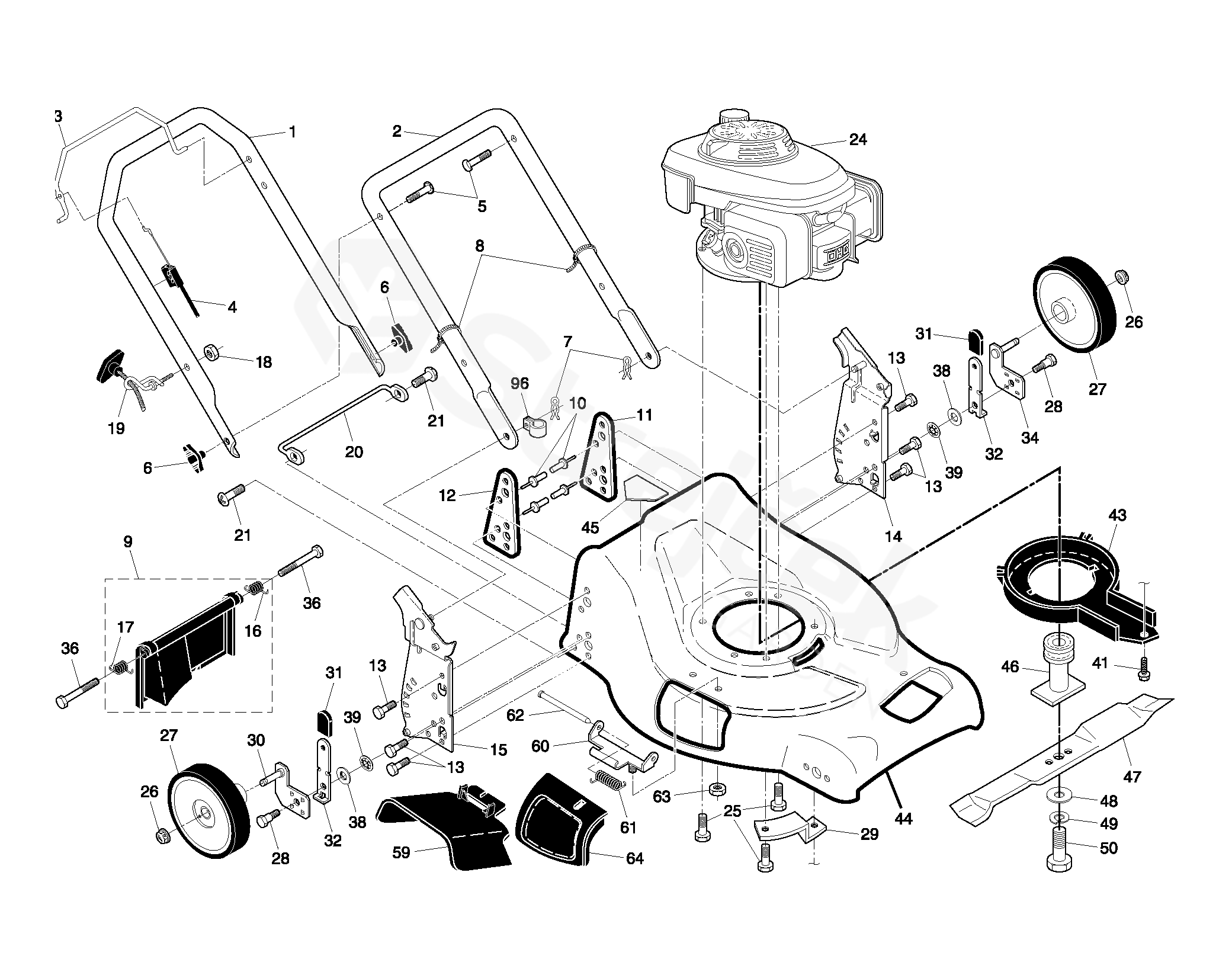

FRAME
Back to
MC55Y21 RA
MC55Y21 RA, 96141002803, 2007-01
FRAME
MC55Y21 RA
MC55Y21 RA, 96141002803, 2007-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MC55Y21 RA, 96141002803, 2007-01
1
HANDLE
532402937
2
HANDLE
532153605
3
CONTROL BAR
532189903
4
CABLE
532183567
5
HANDLE BOLT
532191574
6
KNOB
532191938
7
PIN RETAINING SCREW
532051793
8
HOOP
532066426
9
REAR DOOR KIT (INCL. KE
532180479
10
NÝT
532128415
11
SUPPORT BRACKET LH
532182538
12
SUPPORT BRACKET RH
532182539
13
SCREW
817060410
14
HANDLE BRACKET
532190154
15
HANDLE BRACKET
532190153
16
SPRING
532180071
17
SPRING
532180072
18
MATICE
532132004
19
GUIDE
532194788
20
FOOT GUARD
532179205
21
SCREW
532054583
25
BOLT
532150406
26
MATICE
532083923
27
WHEEL
532198087
28
BOLT
532189312
29
MOUNTING BRACKET, DEBRI
532190939
30
AXLE ARM ASSEMBLY, RR
532195435
31
KNOB
532087877
32
SELECT*RPL.PAR 532175060004
532190157
34
AXLE ARM ASSEMBLY, REAR
532195436
36
BOLT
532184193
38
WASHER
532176185
39
WASHER
532176235
41
SCREW
532192325
43
COVER
532188784
45
DECAL
532182166
46
ADAPTER
532404633
47
MOWER BLADE
532199377
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
59
CLIPPING DEFLECTOR
532175071
60
HINGE
532175735
61
HINGE
532193000
62
ROD
532175650
63
MATICE
873800400
64
PLUG
532175066
96
CLIP
532197991
