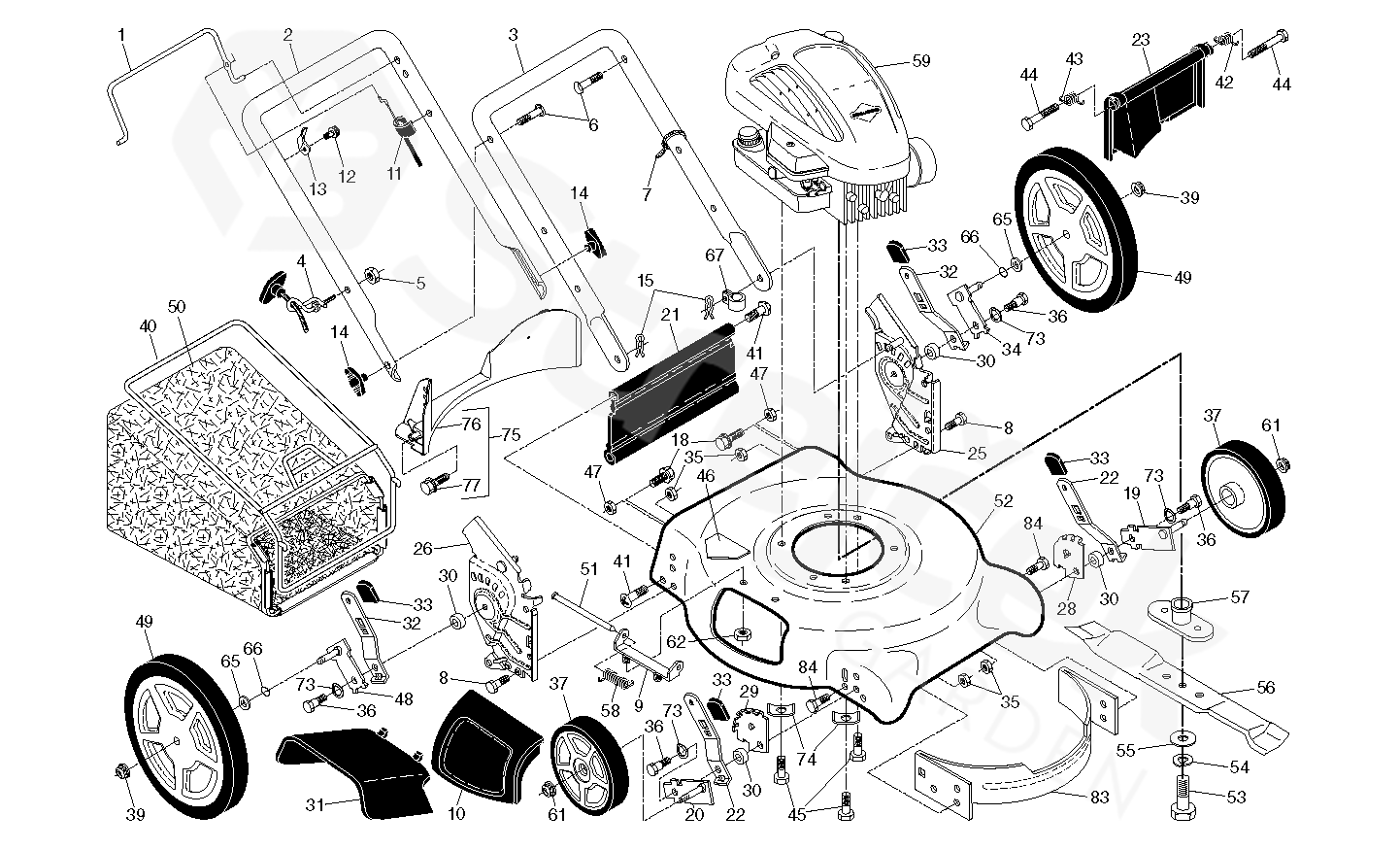

Spare parts - Partlist - MC625 R MC625 R, 96132006501, 2011-01 - FRAME & ENGINE

Everything for your machines

MC625 R MC625 R, 96132006501, 2011-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MC625 R, 96132006501, 2011-01

1	BAIL	532436338
2	HANDLE	532195547
3	HANDLE	532174291
4	GUIDE	532194788
5	MATICE	532132004
6	HANDLE BOLT	532191574
7	HOOP	532066426
8	SCREW	874780512
9	BRACKET	532154132
10	DOOR	532165754
11	CABLE	532183281
12	SCREW	532750634
13	BRACKET	532430034
14	KNOB	532191938
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE	532406689
20	AXLE	532406690
21	KIT SKIRT 21 DOMED W/LIP	532418655
22	SPRING	532406428
23	DEFLECTOR INCLUDES # 46	532410603
25	HANDLE BRACKET	532413960
26	HANDLE BRACKET	532413962
28	BRACKET	532414441
29	BRACKET	532414440
30	SPACER	532401629
31	DEFLECTOR	532165760
32	SPRING	532410595
33	KNOB	532436348
34	AXLE	532410600
35	NUT	532426589
36	BOLT	532401638
37	WHEEL	532430501
39	NUT	532409149
40	FRAME	532411949
41	SCREW	532088652
42	SPRING	532405421
43	SPRING	532405423
44	BOLT	532184193
45	BOLT	532150406
46	DECAL	532404763
47	BOLT	532751153
48	AXLE	532410601
49	WHEEL	532430500
50	GBAG.27510416S.BLK.PPRSUBS/2	532411060
51	ROD	532147286
52	HOUSING INCLUDES # 46 INCLUDES # 46	532441969
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532406712
57	BLADE ADAPTOR USA 7/8"	532850977
58	SPRING	532152124
59	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 10L802-1260-F1 FOR SERVICE & PARTS 1-800-233-3723	000000000
61	MATICE	532409148
62	MATICE	873800400
65	PODLOŽKA	532088348
66	O-KROUŽEK	532197480
67	CLIP	532197991
73	WASHER	532401630
74	WASHER	532125078
75	KIT INCLUDES 3 SCREWS	532413693
76	BAFFLE.REAR.PLASTIC.21.RD.ECON	532410589
77	SCREW	817411312
83	BAFFLE	532428501
84	BOLT	817000510
	DECAL NOT SHOWN	532404764
