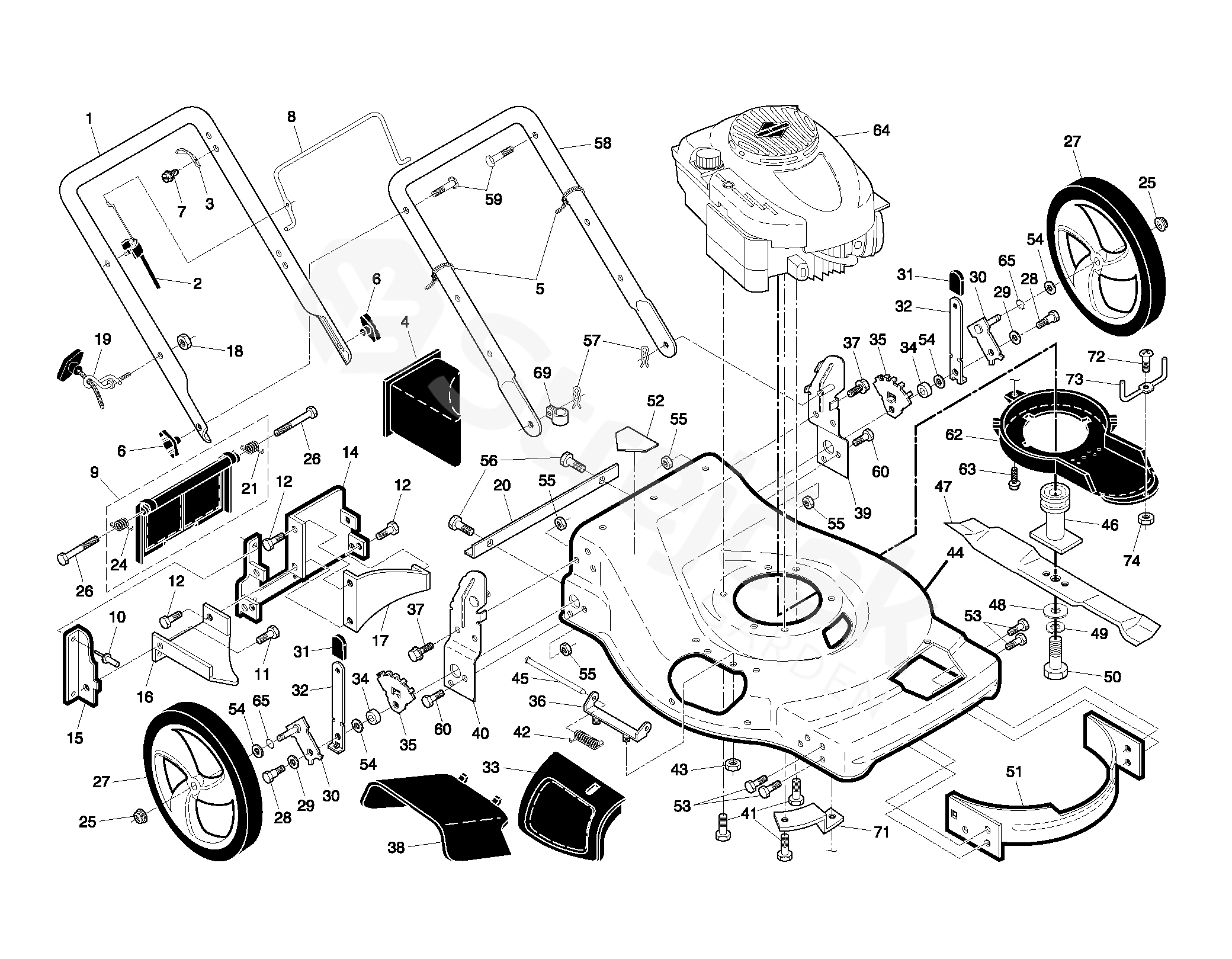

PM6556 D PM6556 D, 96141011600, 2007-04

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PM6556 D, 96141011600, 2007-04

1	HANDLE	532198459
2	CABLE	532183567
3	DESKA	532125162
4	MULCHER PLUG	532166649
5	HOOP	532066426
6	KNOB	532191938
7	SCREW	532750634
8	CONTROL	532198464
9	KIT, REAR DOOR (INCLUDE	532193679
10	NÝT	532128415
11	SCREW	532150050
12	SCREW	532054583
14	PLATE	532198465
15	PARTITION	532138860
16	PLATE	532177133
17	PLATE	532148941
18	MATICE	532132004
19	GUIDE	532194788
20	PROTECTOR	532147625
21	SPRING	532170938
24	SPRING	532170939
25	MATICE	532145212
26	BOLT	532184193
27	WHEEL	532402595
28	BOLT	532142748
29	WASHER	532061651
30	SHAFT	532196021
31	KNOB	532190069
32	CONTROL	532198456
33	MULCHER DOOR	532196053
34	SPACER	532146630
35	SEGMENT	532155047
36	HINGE	532175735
37	SCREW	532150078
38	DEFLECTOR	532403073
39	BRKT.ASM.HND	532197150
40	BRKT.ASM.HND	532197151
41	BOLT	532150406
42	HINGE	532193000
43	MATICE	873800400
44	HOUSING	532402162
45	ROD	532175650
46	MOWER BLADE	532199379
47	MOWER BLADE	532141114
48	PODLOŽKA	532851074
49	PODLOŽKA	532850263
50	SCREW	532851084
51	PLATE	532170491
52	DECAL	532182166
53	SCREW	817600406
54	PODLOŽKA	532088348
55	LOCKNUT 3/8-16 RL508A/B	532751592
56	SCREW	532146694
57	PIN RETAINING SCREW	532051793
58	HANDLE	532155044
59	HANDLE BOLT	532191574
60	BOLT	874760612
62	PROTECTOR	532199314
63	SCREW	532192325
65	O-KROUŽEK	532197480
69	CLIP	532197991
71	MOUNTING BRACKET, DEBRI	532190939
72	SCREW	532182227
73	BELT GUIDE	532197162
74	NUT	532182228
	BED.RM PM6556D	532402963
