M53-501 CMW M53-501 CMW, 96131003000, 2011-11

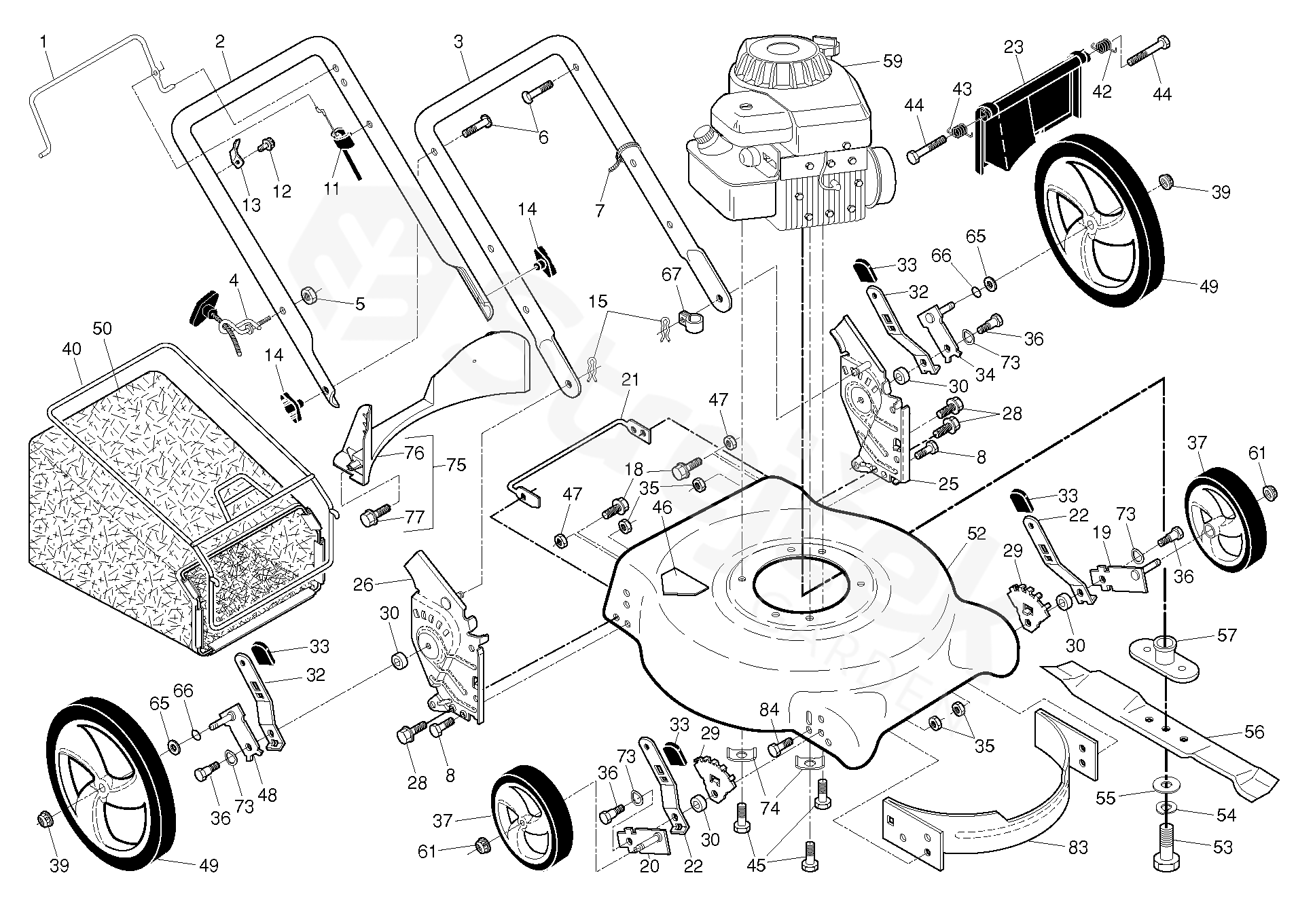

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M53-501 CMW, 96131003000, 2011-11

1	CONTROL	532196025
2	HANDLE	532196026
3	HANDLE	532434514
4	GUIDE	532194788
5	MATICE	532132004
6	HANDLE BOLT	532191574
7	HOOP	532066426
8	SCREW	874780512
11	CONTROL	532162778
12	SCREW	532178848
13	BRACKET	532430034
14	KNOB	532191938
15	PIN RETAINING SCREW	532051793
18	SCREW	817600406
19	AXLE LH	532406689
20	AXLE RH	532406690
21	GUARD	532436119
22	SPRING	532406428
23	DEFLECTOR	532410603
25	BRACKET LH LH	532446799
26	BRACKET RH RH	532446802
28	SCREW	817060410
29	WHEEL ADJ BRACKET FRONT	532410594
30	SPACER	532401629
32	SPRING	532410595
33	KNOB	532087877
34	AXLE LH	532410600
35	NUT	532426589
36	BOLT	532401638
37	WHEEL	532403495
39	NUT	532409149
40	FRAME	532411949
42	SPRING LH	532405421
43	SPRING RH	532405423
44	BOLT	532184193
45	BOLT	532150406
46	DECAL	532182166
47	BOLT	532751153
48	AXLE RH	532410601
49	WHEEL ASSY	532432749
50	GRASSBAG	532402024
52	KIT	532441962
53	SCREW	532851084
54	PODLOŽKA	532850263
55	PODLOŽKA	532851074
56	MOWER BLADE	532199377
57	BLADE ADAPTOR USA 7/8"	532850977
59	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 B&S 9P602-0005-H1 FOR SERVICE & PARTS 1-800-233-3723	000000000
61	MATICE	532409148
65	PODLOŽKA	532088348
66	O-KROUŽEK	532197480
67	CLIP	532197991
73	WASHER	532401630
74	WASHER	532125078
75	KIT	532413693
76	BAFFLE.REAR.PLASTIC.21.RD.ECON	532410589
77	SCREW	817411312
83	BAFFLE	532428501
84	BOLT	817000510
	LABEL WARNING NOT SHOWN	532182191
