McCULLOCH
>
SNOW BLOWERS/THROWERS
>
MSB121E MSB 121E, 96181000803, 2012-06
>

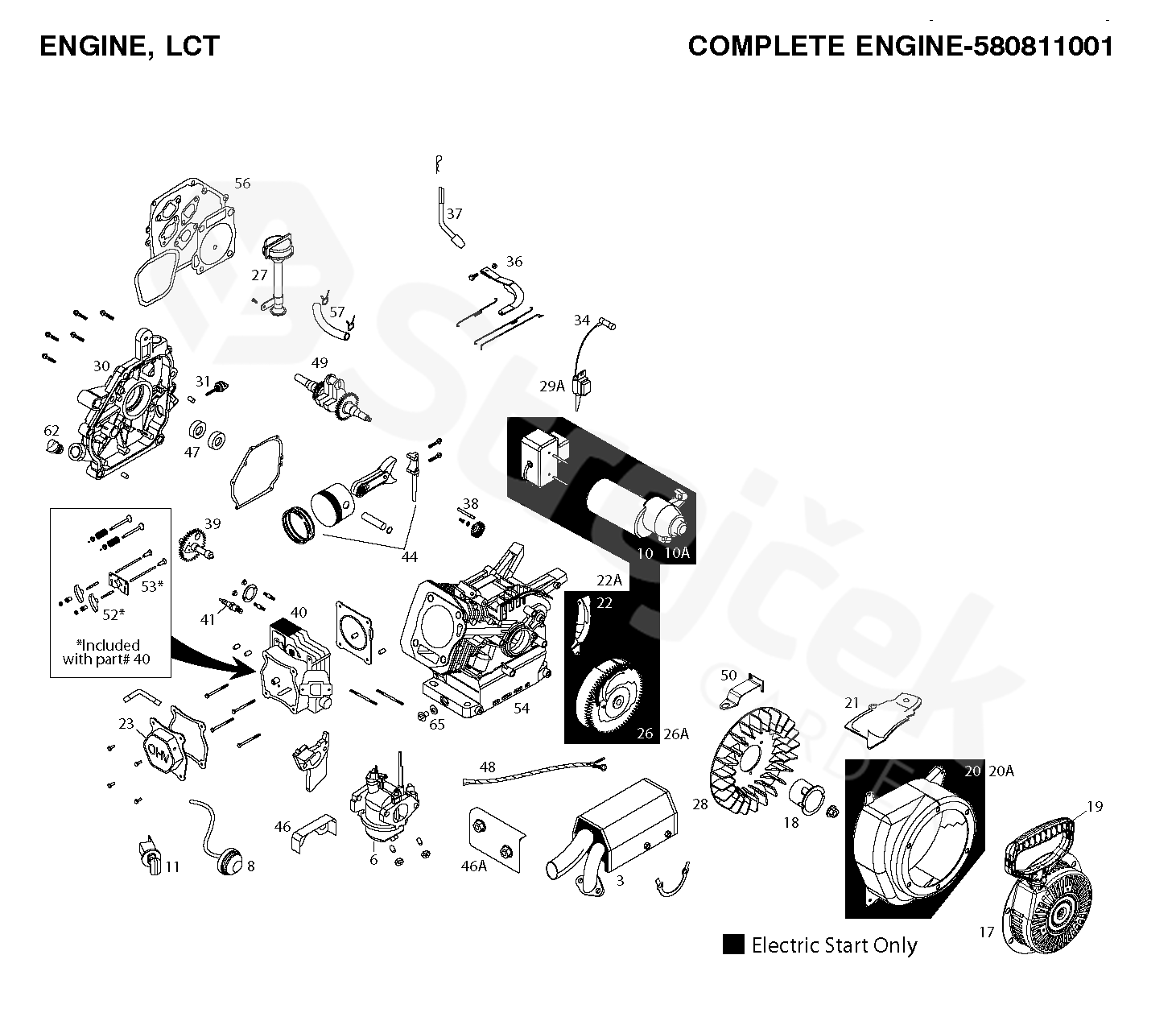

ENGINE
Back to
MSB121E
MSB 121E, 96181000803, 2012-06
ENGINE
MSB121E
MSB 121E, 96181000803, 2012-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MSB 121E, 96181000803, 2012-06
3
MUFFLER ASSY
532444277
6
CARBURETOR
532437122
8
BULB
532437123
10
STARTER ASSY
532437124
11
KEY START ASSY
532424954
17
RECOIL
532436967
18
CUP
532436968
19
SNOW STARTER CHIP
532424968
20
BLOW.HSG ASSY ELEC
532424971
21
SHIELD FLYWHEEL SYS
532424973
22
SHLD ELEC START FLYWHEEL
532424975
23
VALVE COVER SERVICE KIT
532420580
26
FLYWHEEL ASSY
532429235
27
TRUBKA
532444091
28
FLYWHEEL
532420586
30
CRANKCASE
532420606
31
DIPSTICK
532420961
34
BOOT
532436966
36
GOVERNOR ARM SERVICE KIT
532420601
37
GOVERNOR
532420602
38
GEAR
532429646
39
CAMSHAFT
532420584
40
CYLINDER HEAD
532420578
41
SPARK PLUG
532424939
44
PÍST KOMPL.
532420582
46
VAPOR SHIELD
532429260
47
SEAL KIT
532429599
48
HARNESS
532444276
49
CRANKSHAFT
532429600
50
SPEED CONTROL BRACKET
532429259
52
ROCKER ARM KIT
532429691
53
PUSH ROD SERVICE KIT
532420579
54
CYLINDER
532436567
56
GASKET KIT
532429601
57
HOSE KIT
532438014
62
NON REMOVABLE PLUG
532429598
65
OIL PLUG
532435495
10A
STARTER
532437125
20A
BLOWER HOUSING, ELECTRIC,BLACK
532429230
22A
SHIELD. FLYWHEEL - MANUAL START
532429596
26A
FLYWHEEL
532420585
29A
IGNITION COIL
532443934
46A
KRYT
532444275
