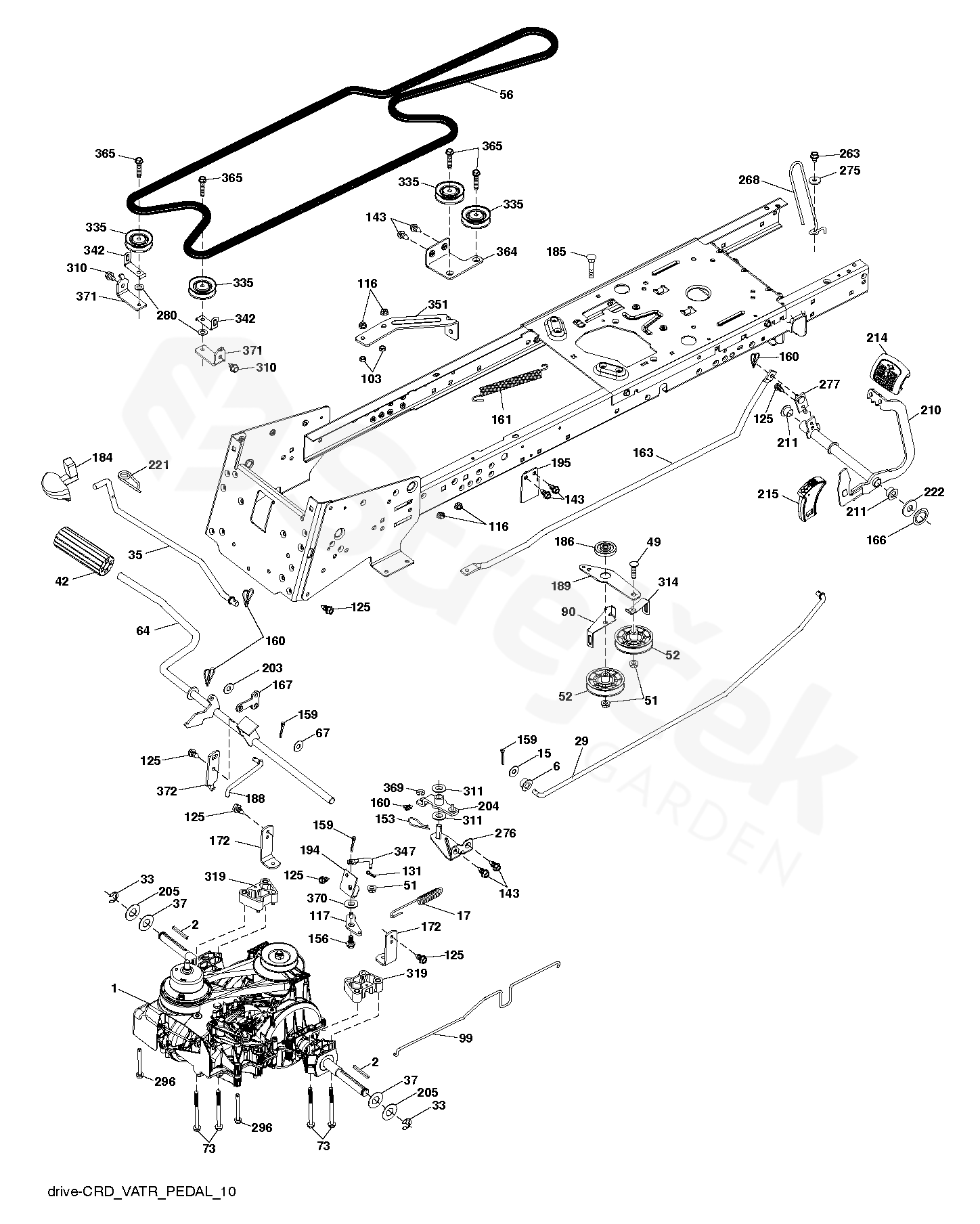

M125-97TC M125-97TC, 96051006000, 2012-11

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M125-97TC, 96051006000, 2012-11

1	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 TRANSMISSION GENTRANS VATR (580486401) (Order parts from transaxle manufacturer)	000000000
2	KEY	532123583
6	BUSHING	532124208
15	PODLOŽKA	819131316
17	SPRING	580325201
29	ROD	581187401
33	RETAINER RING	812000001
35	ROD	532401031
37	PODLOŽKA	532188967
42	PEDAL RUBBER	532124872
49	BOLT	872110614
51	MATICE	873900600
52	PULLEY	532194326
56	BELT	532446991
64	SHAFT	532448353
67	PODLOŽKA	819131312
73	BOLT	580830401
90	KEEPER	532443605
99	ROD	581280901
103	NUT	873350500
116	MATICE	873900500
117	BELL CRANK	580382901
125	SCREW	817000512
131	SPLIT PIN	876020308
143	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
153	CLIP	532124961
156	BOLT	580369001
159	SPLIT PIN	876020412
160	KOLÍČEK	532169484
161	PRUŽINA	532105709
163	ROD	581187301
166	MATICE	532429164
167	LATCH	532405257
172	STRAP	532448276
184	BRAKE	532441407
185	BOLT	872110622
186	ROZPĚRKA	532194321
188	LINK	532194323
189	BELLCRANK	532433611
194	BRACKET	580324901
195	BRACKET	580456901
203	PODLOŽKA	819111116
204	CONTROL	585217601
205	PODLOŽKA	532121748
210	PEDAL	532448270
211	BEARING	532120183
214	PAD	532421263
215	PAD	532448254
221	RETAINER SPRING	532403187
222	PODLOŽKA	879212010
263	SCREW	817000612
268	PROTECTOR	532182402
275	WASHER	819131614
276	BRACKET	584996701
277	LINK	532448500
280	WASHER	819111012
296	SCREW	532420471
310	SCREW	817490608
311	NUT	584072001
314	SPACER	580457401
319	SPACER	580457401
335	PULLEY	532199534
342	KEEPER	580961001
347	ROD	580325101
351	BRACKET	532436998
364	BRACKET	532443032
365	SCREW	817490520
369	CLIP	581577401
370	WASHER	878121632
371	BRACKET	580960701
372	ARM	581475201
