Spare parts > McCULLOCH > TRACTORS/RIDE MOWERS > M105-85F M105-85F, 967186801, 2013-01 > 85CM CUTTING DECK
Back to

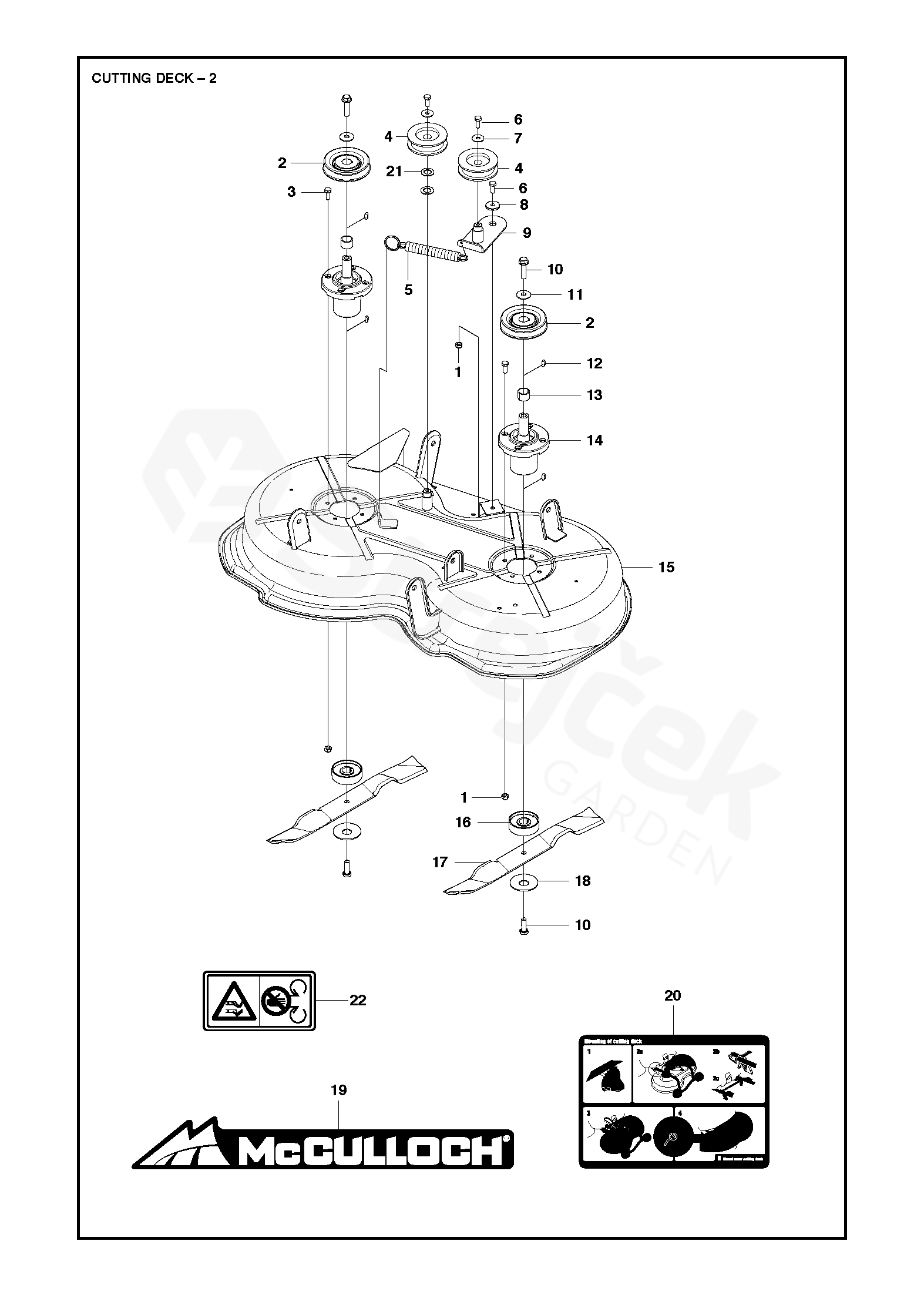

85CM CUTTING DECK
M105-85F M105-85F, 967186801, 2013-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For M105-85F, 967186801, 2013-01
1 LOCK NUT 732211801
2 PULLEY 574460701
3 SCREW EHHM 725245171
4 BELT TENSIONER WHEEL 506793202
5 SPRING 584298801
6 SCREW EHHM 725245371
7 PODLOŽKA 734116441
8 PODLOŽKA 734117441
9 BELT TENSIONER 573969501
10 SCREW EHHFM 506675402
11 PODLOŽKA 734117771
12 PARALELNÍ KLÍN 506533501
13 TUBE 573966501
14 BEARING HOUSING ASSY 573968601
15 CUTTING DECK 581061102
16 ADAPTER 581249701
17 BLADE 581083501
18 KNIFE PLATE 506792303
19 DECAL 581135401
20 DECAL 581166201
21 WASHER 581709501
22 DECAL 574510001
