Spare parts
>
McCULLOCH
>
TRACTORS/RIDE MOWERS
>
M200107H M200107H, 96041014100, 2010-03
>

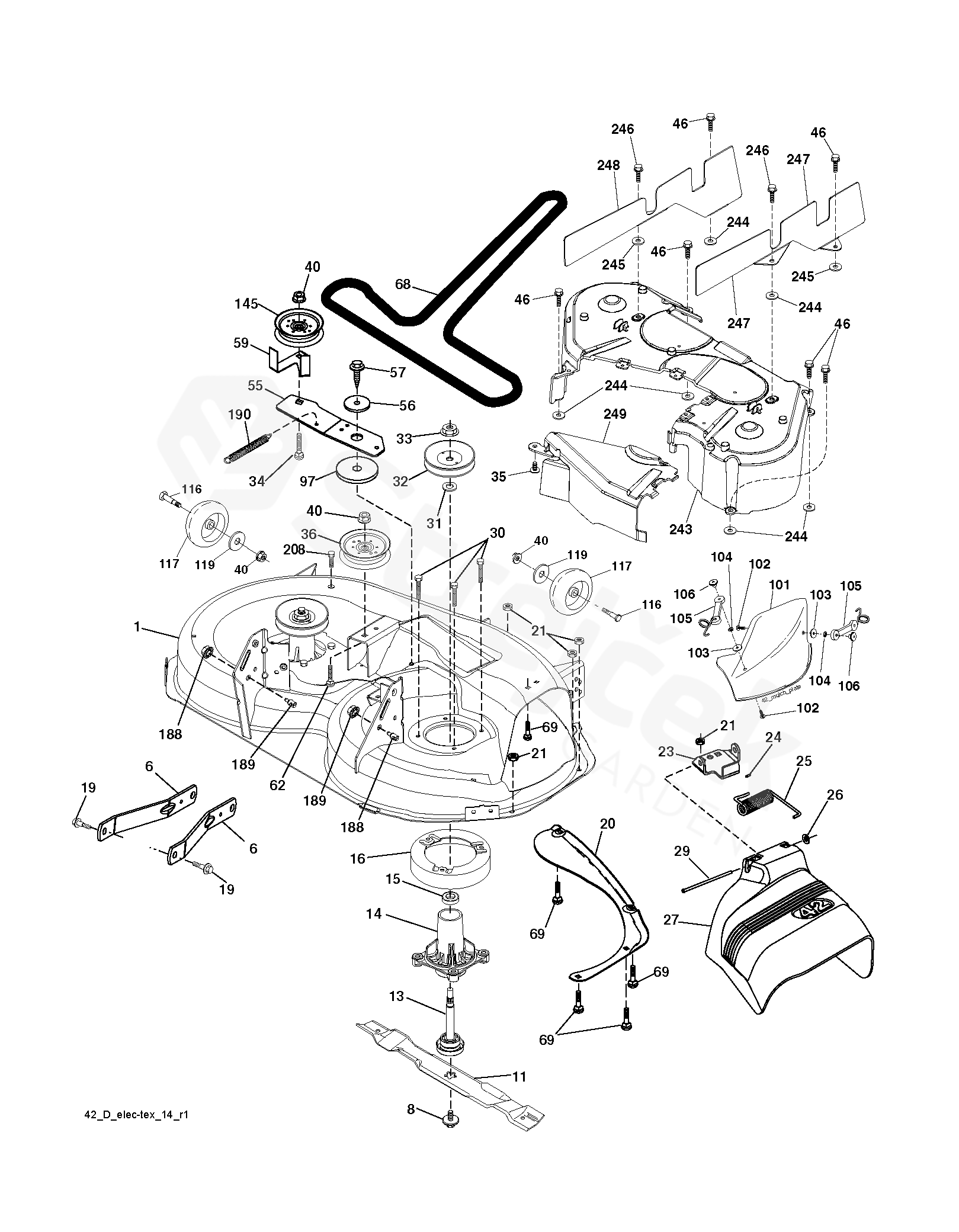

MOWER DECK / CUTTING DECK
Back to
M200107H
M200107H, 96041014100, 2010-03
MOWER DECK / CUTTING DECK
M200107H
M200107H, 96041014100, 2010-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M200107H, 96041014100, 2010-03
1
HOUSING
532196495
6
ARM
532195186
8
SCREW
532193003
11
RIDE ON BLADE
532134149
13
SHAFT ASSY
532192872
14
BEARING HOUSING
532187281
15
BEARING
532110485
16
STRIPPER. MANDREL.BLACK
532174493
19
BOLT
532196539
20
KOLEJNICE
532159770
21
MATICE
873680500
23
HINGE
532192557
24
HUB CAP
532105304
25
TORSION SPRING
532197026
26
MATICE
532110452
27
NONAME
532411485
29
HRÍDEL
532131491
30
SCREW
532173984
31
PODLOŽKA
532187690
32
PULLEY
532153535
33
MATICE
532400234
34
BOLT
872110616
35
XMAS TREE FASTNER
532133835
36
PULLEY
532193197
40
MATICE
873900600
46
SCREW
532137729
55
ARM
532197249
56
ROZPĚRKA
532199092
57
SCREW
817000616
59
GUARD
532141043
62
BOLT
872110612
68
BELT
532144959
69
BOLT
872140505
97
PODLOŽKA
532178515
101
COVER
532193107
102
SCREW
871081010
103
WASHER
819061216
104
WASHER
810071000
105
LATCH
532160793
106
NUT
532125004
116
BOLT
532193406
117
KOLO
532174873
119
PODLOŽKA
819132012
145
PULLEY
532197379
188
ŠROUB
532195161
189
MATICE
873900500
190
PRUŽINA
532197251
208
SCREW
817670608
243
COVER
532406508
244
MATICE
532423062
245
WASHER
532423063
246
SCREW
817670508
247
SHIELD
532421668
248
SHIELD
532421669
249
COVER
532406514
SPINDLE
532192870
