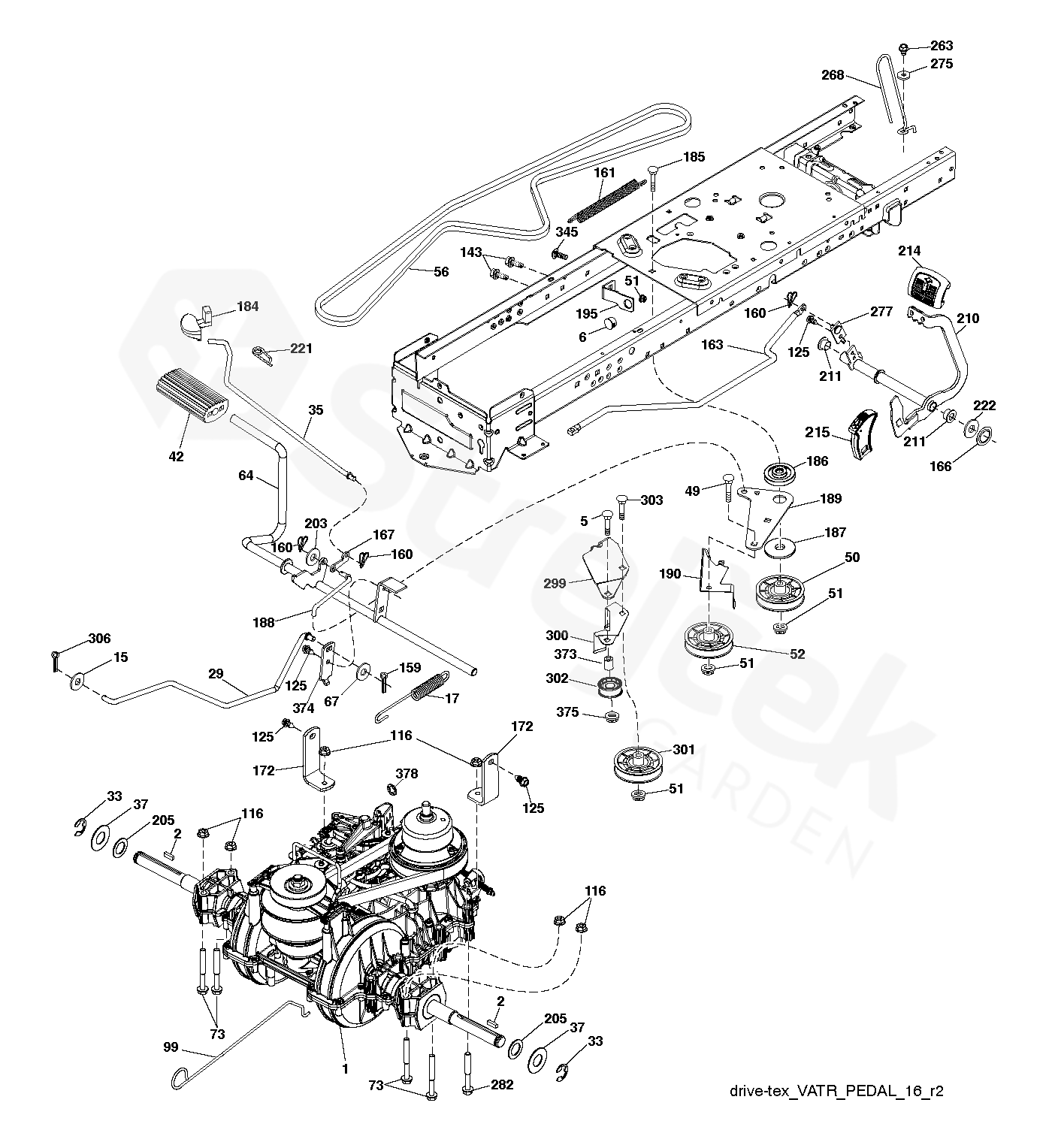

Spare parts - Partlist - M125107T M125-107T, 96041033500, 2013-06 - DRIVE

Everything for your machines

M125107T M125-107T, 96041033500, 2013-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For M125-107T, 96041033500, 2013-06

1	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 TRANSAXLE GENTRANS MODEL (580486201)	000000000
2	KEY	532123583
5	BOLT	874760636
6	BUSHING	532124028
15	PODLOŽKA	819131316
17	SPRING	584954001
29	ROD	584823101
33	RETAINER RING	812000001
35	ROD	532401031
37	PODLOŽKA	532188967
42	PEDAL RUBBER	532124872
49	BOLT	872110614
50	PULLEY	532194327
51	MATICE	873900600
52	PULLEY	532194326
56	BELT	581603801
64	SHAFT	532448353
67	PODLOŽKA	819131312
73	BOLT	874490544
99	ROD	532435935
116	MATICE	873900500
125	SCREW	817000512
143	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
159	SPLIT PIN	876020412
160	KOLÍČEK	532169484
161	PRUŽINA	532105709
163	ROD	583971301
166	MATICE	532429164
167	LATCH	532405257
172	STRAP	583974201
184	BRAKE	532441407
185	BOLT	872110622
186	ROZPĚRKA	532194321
187	PODLOŽKA	819133210
188	LINK	532194323
189	DESKA	532194317
190	BELT GUIDE	532194318
195	BRACKET	581504601
203	PODLOŽKA	819111116
205	PODLOŽKA	532121748
210	PEDAL	532448270
211	BEARING	532120183
214	PAD	532421263
215	PAD	532448254
221	RETAINER SPRING	532403187
222	PODLOŽKA	879212010
263	SCREW	817000612
268	PROTECTOR	532182402
275	WASHER	819131614
277	LINK	532448500
282	BOLT	874490548
299	BRACKET	532415683
300	IDLER	532415681
301	IDLER	532415680
302	PULLEY	581420501
303	BOLT	872110618
306	SPLIT PIN	876020416
345	BOLT	872110606
373	SPACER	581461801
374	ARM	581475201
375	MATICE	873680600
378	MATICE	584287701
