Spare parts > McCULLOCH > TRIMMERS/EDGERS > TRIM MAC SL TRIM MAC SL, 2010-04 > SHAFT & HANDLE
Back to

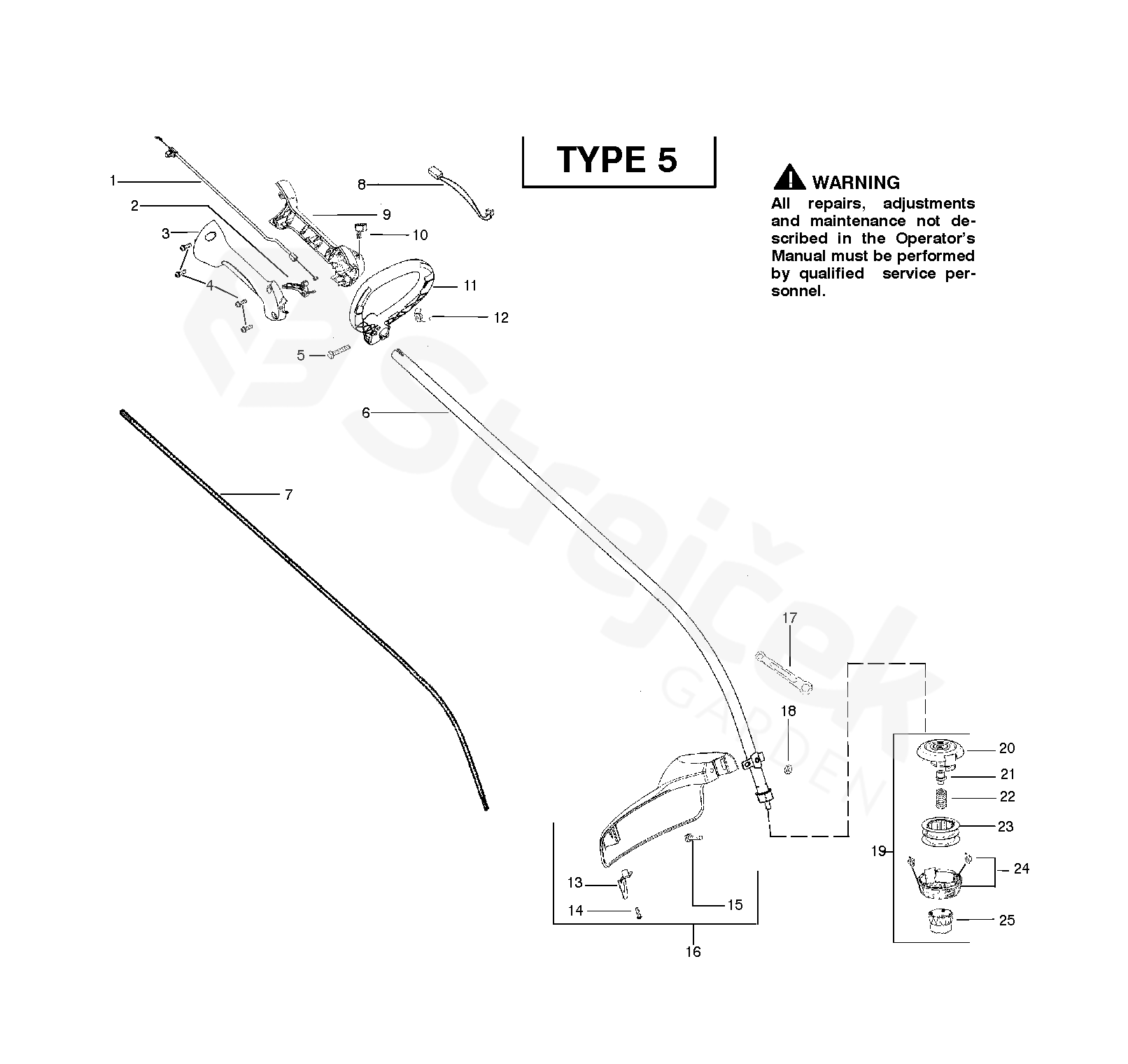

SHAFT & HANDLE
TRIM MAC SL TRIM MAC SL, 2010-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TRIM MAC SL, 2010-04
1 ASSEMBLY 530057991
2 THROTTLE 530049107
3 THROTTLE HSG. (RIGHT) 530057582
4 SCREW 530015880
5 SCREW 530015821
7 DRIVE SHAFT 530096275
8 ASSY THROTTLE WIRE 530054183
9 HANDLE 530059952
10 SWITCH 530069572
11 HANDLE ASSY 530058580
12 KŘÍDLOVÁ MATICE 530016152
13 KIT - LIMITER-LINE 545081862
14 SCREW 530015966
15 SCREW 530015820
16 KIT 530071972
17 WRENCH 530056401
18 MATICE Nut - Blower tube 530015197
19 TRIMMER HEAD 537419205
20 HOUSING 537419303
21 ADAPTER 537419901
22 SPRING 537338801
23 SPOOL 545080801
24 EYELET 545003365
25 KNOB 537419601
DRIVE SHAFT ASSY 545024807
