Spare parts > Partner > BRUSHCUTTERS/CLEARING SAWS > SST250, SST250 + SST250, SST250 +, 952715460, 952715700, 2010-03 > SHAFT & HANDLE
Back to

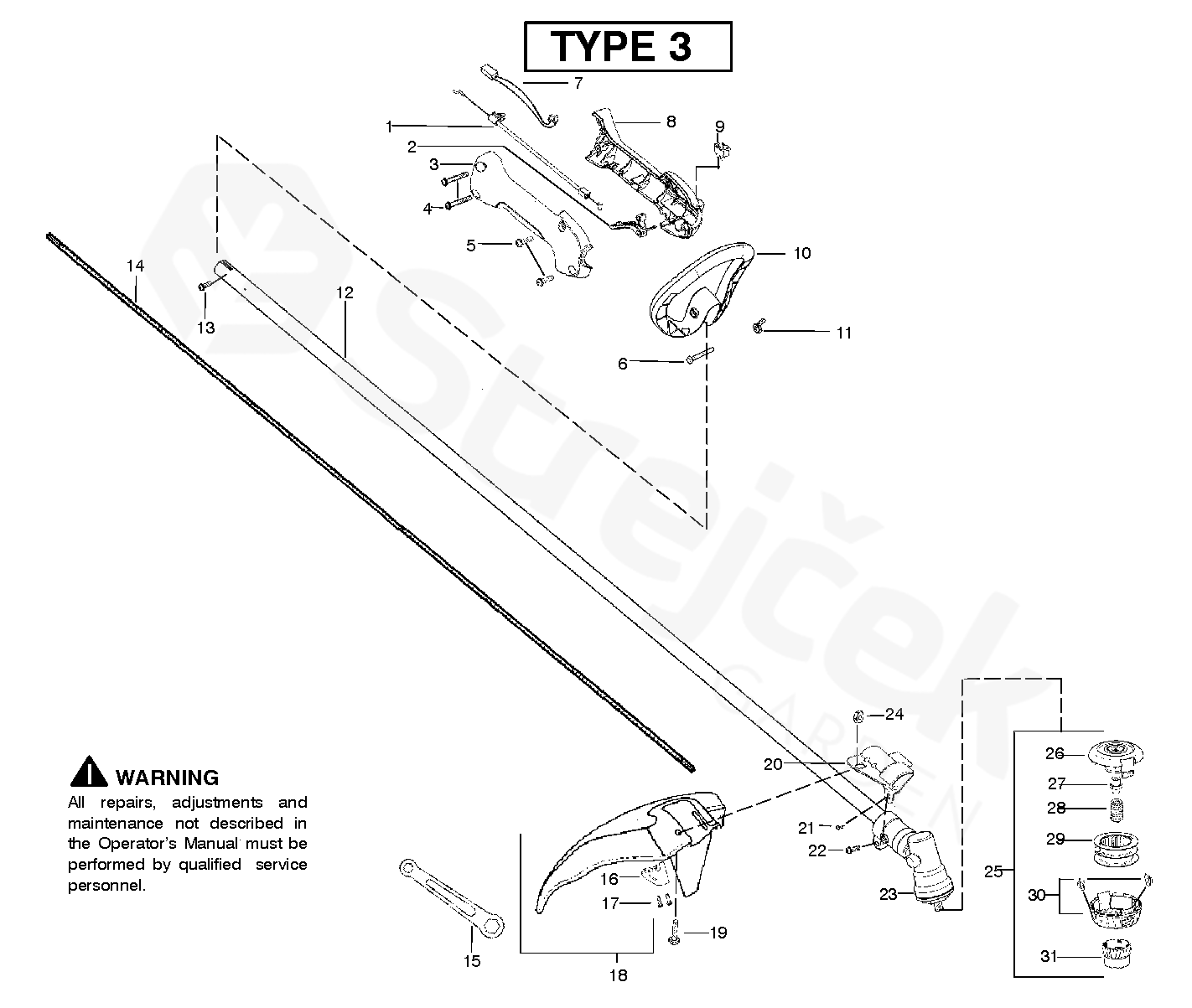

SHAFT & HANDLE
SST250, SST250 + SST250, SST250 +, 952715460, 952715700, 2010-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SST250, SST250 +, 952715460, 952715700, 2010-03
1 ASSEMBLY 530057566
2 THROTTLE 530049107
3 HOUSING 530057541
4 SCREW 530016406
5 SCREW 530015814
6 BOLT 530015786
7 ASSY SWITCH WIRE 545058801
8 HSG THROTTLE LH EURO 530059760
9 SWITCH 530069572
10 ASSEMBLY
(Incl 6,11) 		530058583
11 KŘÍDLOVÁ MATICE 530016152
12 DRIVE SHAFT 545006029
13 SCREW 530015805
14 SHAFT--- FLEX 530096169
15 WRENCH 530056401
16 HADIČKA 530052286
17 SCREW 530015814
18 KIT
(Incl16,17) 		530071997
19 SCREW 530015820
20 BRACKET 545150701
21 SCREW 530015775
22 SCREW 530016014
23 BEVEL GEAR 530096099
24 MATICE Nut - Blower tube 530015197
25 TRIMMER HEAD
( Incl 26,27,28,29,30,31) 		537419207
26 HOUSING 537419302
27 ADAPTER 537419801
28 SPRING 537338801
29 SPOOL 545080801
30 EYELET 545003365
31 KNOB 537419601
LABEL 530150729
