Spare parts > Partner > CHAIN SAWS > 350 350, 952801902, 952801915, 2008-05 > ENGINE
Back to
ENGINE
350 350, 952801902, 952801915, 2008-05

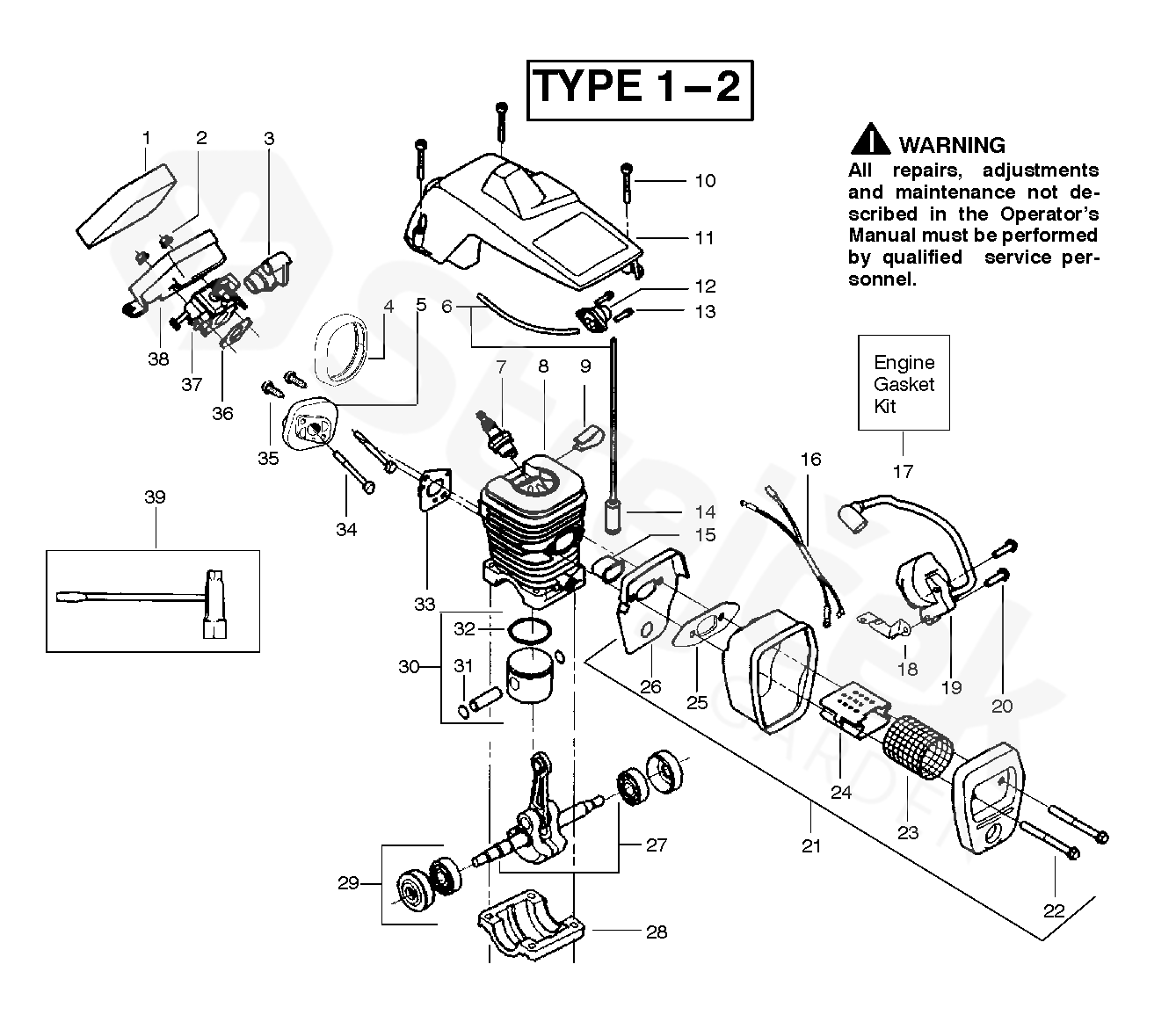

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 350, 952801902, 952801915, 2008-05
1 AIR FILTER 530037793
2 MATICE 530016101
3 SLEEVE 530049244
4 SEALING 530054144
5 PARTITION 530049700
6 HOSE 530069247
7 SPARK PLUG 952030150
8 CYLINDER 530069606
9 CLAMP 530016136
10 SCREW 530016153
11 ADAPTER 530071310
12 PRIMER 530047213
13 SCREW 530015780
14 FILTER 530095646
15 DEFLECTOR 530037652
16 ASSEMBLY 530052296
17 GASKET
(Incl. 25, 33 & 36) 		530069608
18 PLATE 530047442
19 IGNITION MODULE 530039198
20 SCREW 530015814
21 MUFFLER
(Incl. 22---26) 		530047207
22 BOLT 530016132
23 SCREEN 530036103
24 FLAME PROTECTION 530037813
25 GASKET 530069608
26 PLATE 530049870
27 CRANKSHAFT 530047062
28 COVER 530037935
29 BEARING 530056363
30 PISTON
(Incl. 31 & 32) 		530069604
31 LOCKING RING 530015697
32 PISTON RING 530029805
33 GASKET 530069608
34 SCREW 530016187
35 SCREW 530016386
36 GASKET 530069608
38 HOLDER 530037804
39 KLÍČ 530031135
LABEL 530056654
