CHAIN SAWS
>
351, 370, 390, 420 351, 370, 390, 420, 952801732, 952801802, 952801741, 2008-05
>

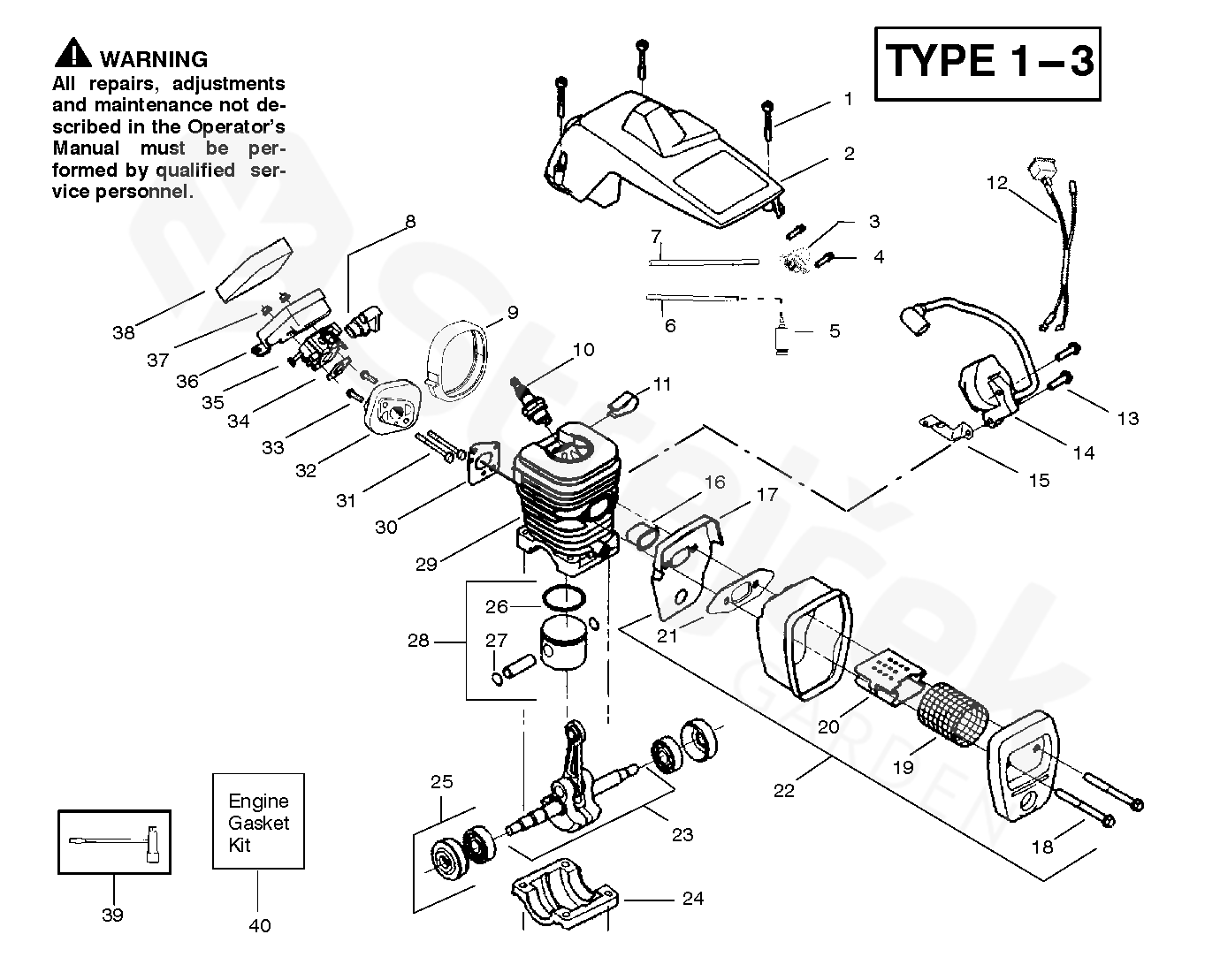

ENGINE
Back to
351, 370, 390, 420
351, 370, 390, 420, 952801732, 952801802, 952801741, 2008-05
ENGINE
351, 370, 390, 420
351, 370, 390, 420, 952801732, 952801802, 952801741, 2008-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
351, 370, 390, 420, 952801732, 952801802, 952801741, 2008-05
1
SCREW
530016153
2
ADAPTER
530071310
3
PRIMER
530047213
4
SCREW
530015780
5
FILTER
530095646
6
HOSE
530069247
7
KIT
530069216
8
SLEEVE
530035526
9
SEALING
530054144
10
SPARK PLUG
952030150
11
CLAMP
530016136
12
CABLE ASSY
530049117
13
SCREW
530015814
14
IGNITION MODULE
530039167
15
PLATE
530047442
16
DEFLECTOR
530037652
17
PLATE
530049870
18
BOLT
530016132
19
SCREEN
530036103
20
FLAME PROTECTION
530037813
21
GASKET
530069608
22
MUFFLER
(Incl. 17--21)
530047207
23
CRANKSHAFT
530047062
24
COVER
530037935
25
BEARING
530056363
26
PISTON RING
530029805
27
LOCKING RING
530015697
28
PISTON
(incl. 26--27)
530069604
29
CYLINDER
530069606
30
GASKET
530069608
31
SCREW
530016187
32
PARTITION
530049700
33
SCREW
530016386
34
GASKET
530069608
36
HOUSING
530047604
37
MATICE
530016101
38
AIR FILTER
530037793
39
KLÍČ
530031135
40
GASKET
(incl. 34,30,21)
530069608
DECAL
530054781
