CHAIN SAWS
>

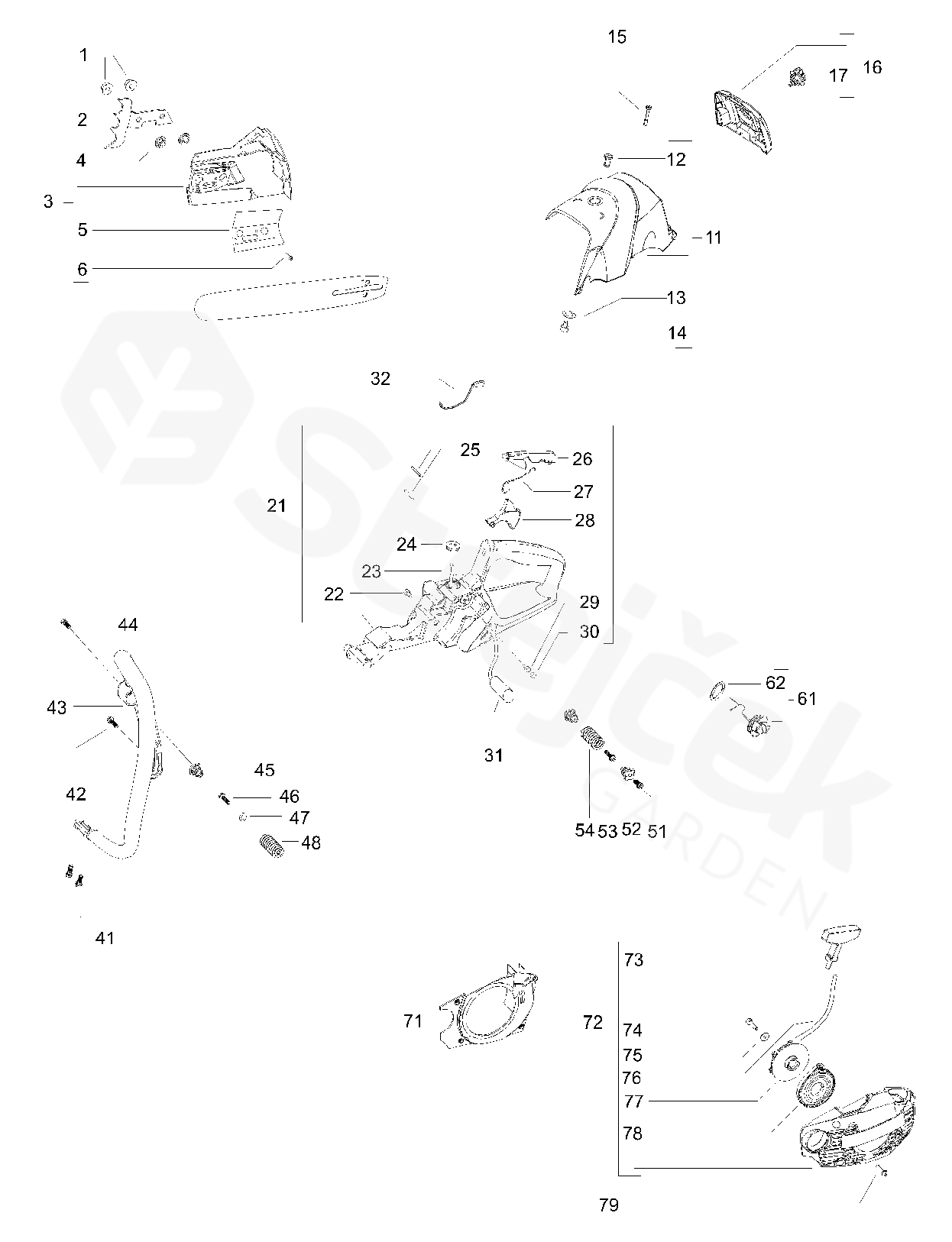

Formula 60 Plus Formula 60 Plus, 966053701, 966053702, 2009-03
>
ACCESSORIES
Back to
Formula 60 Plus
Formula 60 Plus, 966053701, 966053702, 2009-03
ACCESSORIES
Formula 60 Plus
Formula 60 Plus, 966053701, 966053702, 2009-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Formula 60 Plus, 966053701, 966053702, 2009-03
1
NUT
538227762
2
SPIKE
538243964
3
CLUTCH COVER ASSY
538243111
4
BUSHING
538241912
5
PLATE
538240360
6
SCREW
538228554
11
CYLINDER COVER ASSY
538243938
12
NUT
503227001
13
WASHER
538236936
14
SUPPORT
538240272
15
SCREW
538243903
16
AIR FILTER COVER
538243940
17
KNOB
538243765
21
REAR HANDLE ASSY
538249707
22
GROMMET
538243340
23
FUEL HOSE
538242965
24
GROMMET
538235675
25
PEN
538243234
26
SAFETY LEVER
538243100
27
TRIGGER SPRING
538243103
28
THROTTLE TRIGGER
538243099
29
VALVE VERNAY VT 312-110
538235658
30
SINTERED 8X4
538235735
31
FILTER
503443201
32
THROTTLE SLIDE ASSY CS010
538243532
41
SCREW IHSCT
503218816
42
SCREW IHSCFT
503217520
43
FRONT HANDLE
538243101
44
SCREW IHSCT
503218816
45
ANTIVIBE
538243133
46
SCREW
538240845
47
WASHER
538235248
48
ABSORBER
538243339
51
SCREW IHSCT
503218816
52
SPRING GUIDE
538243885
53
SCREW IHSCT
503217432
54
SPRING
538243887
61
FUEL/OIL CAP ASSY
538243137
62
O-RING
538235510
71
AIR CONDUCTOR
538243105
72
STARTER ASSY
538250159
73
GRIP
538235043
74
SCREW
538229791
75
WASHER
538227259
76
STARTER CORD
505305125
77
STARTER PULLEY
506016401
78
SPRING CASSETTE ASSY
501763101
79
SCREW
538243520
