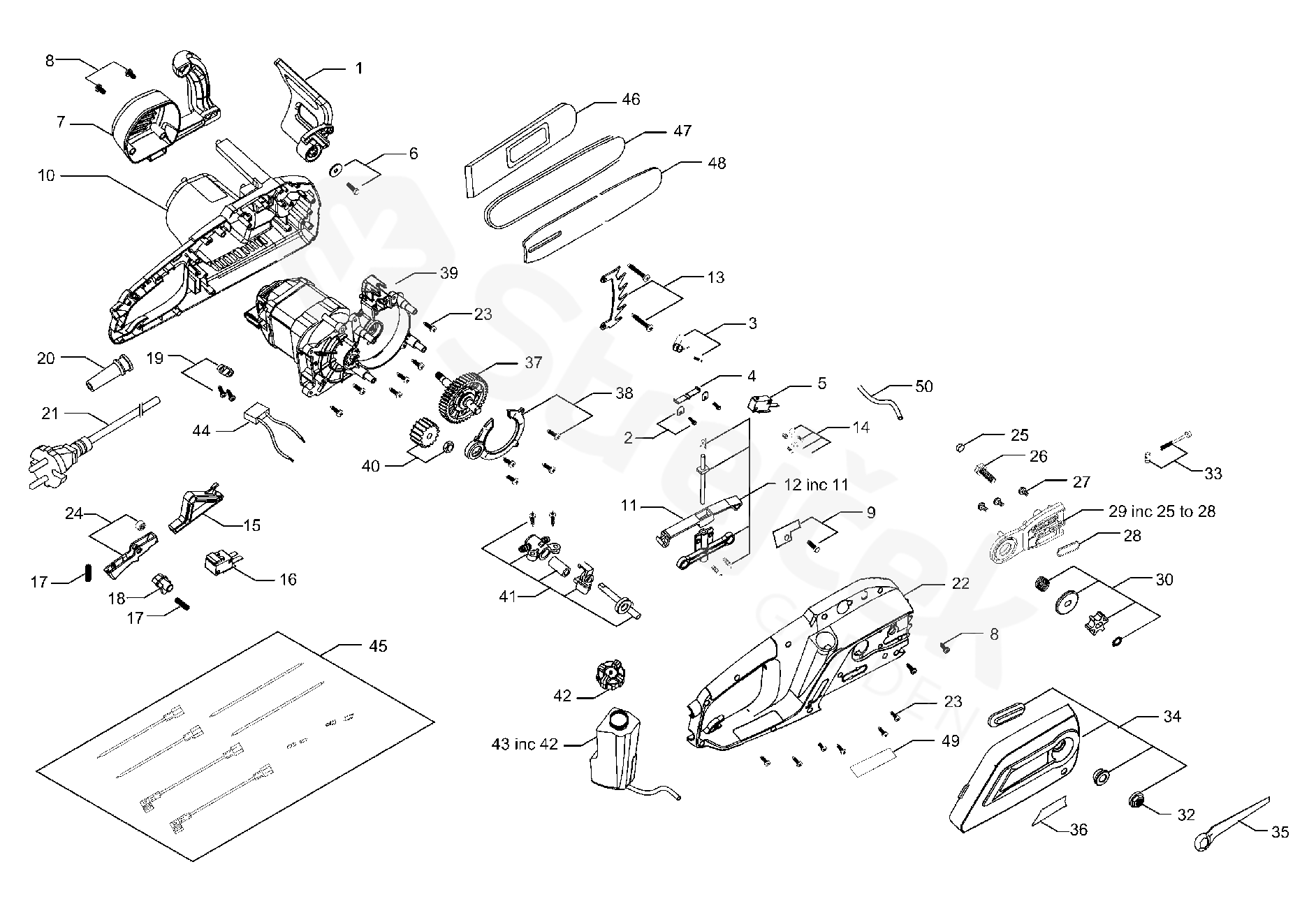

P516, P518, P520 P516, P518, P520, 964830101, 964830502, 964830601, 2008-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P516, P518, P520, 964830101, 964830502, 964830601, 2008-09

1	BRAKE	505472101
2	FIXING PLATE	574843601
3	SPRING	505466801
4	SPRING PLATE	505469301
5	MICRO SWITCH	505469401
6	WASHER	505466901
7	COVER	505469501
8	SCREW Qty 9	505467001
9	FIXING PLATE	574843501
10	CLAMSHELL	522655901
11	SWITCH	505469801
12	SWITCH Inc 11	505467101
13	BUMPER	505467201
14	NOZZLE	505467301
15	ARM	505470101
16	SWITCH	505470201
17	SPRING	505467401
18	BUTTON	505470301
19	KIT	505560801
20	SLEEVE	505470401
21	CORD	505105801
22	CLAMSHELL	522655801
23	SCREW KIT	574843901
24	SWITCH	505467601
25	RUBBER PLUG	505472201
26	SCREW	574843101
27	SCREW Qty 6	505470901
28	SEAL	505558901
29	PLATE	505467701
30	SPRING	505559001
32	CHAIN	505558401
33	SCREW	505533601
34	COVER	505533401
35	SPANNER	505558301
36	KIT LABEL	522656001
37	SHAFT	505471501
38	GEARBOX	505468301
39	MOTOR ASSY	505471701
40	WORM GEAR	505471801
41	PUMP	505468401
42	HUB CAP	505471901
43	BOTTLE	505468501
44	CAPACITOR	505529901
45	CABLE	505468701
46	SCABBARD PLAIN	530047513
47	SAW CHAIN	531024122
48	BAR	531024226
49	LABEL WARNING	505533701
50	TUBE	574843801
