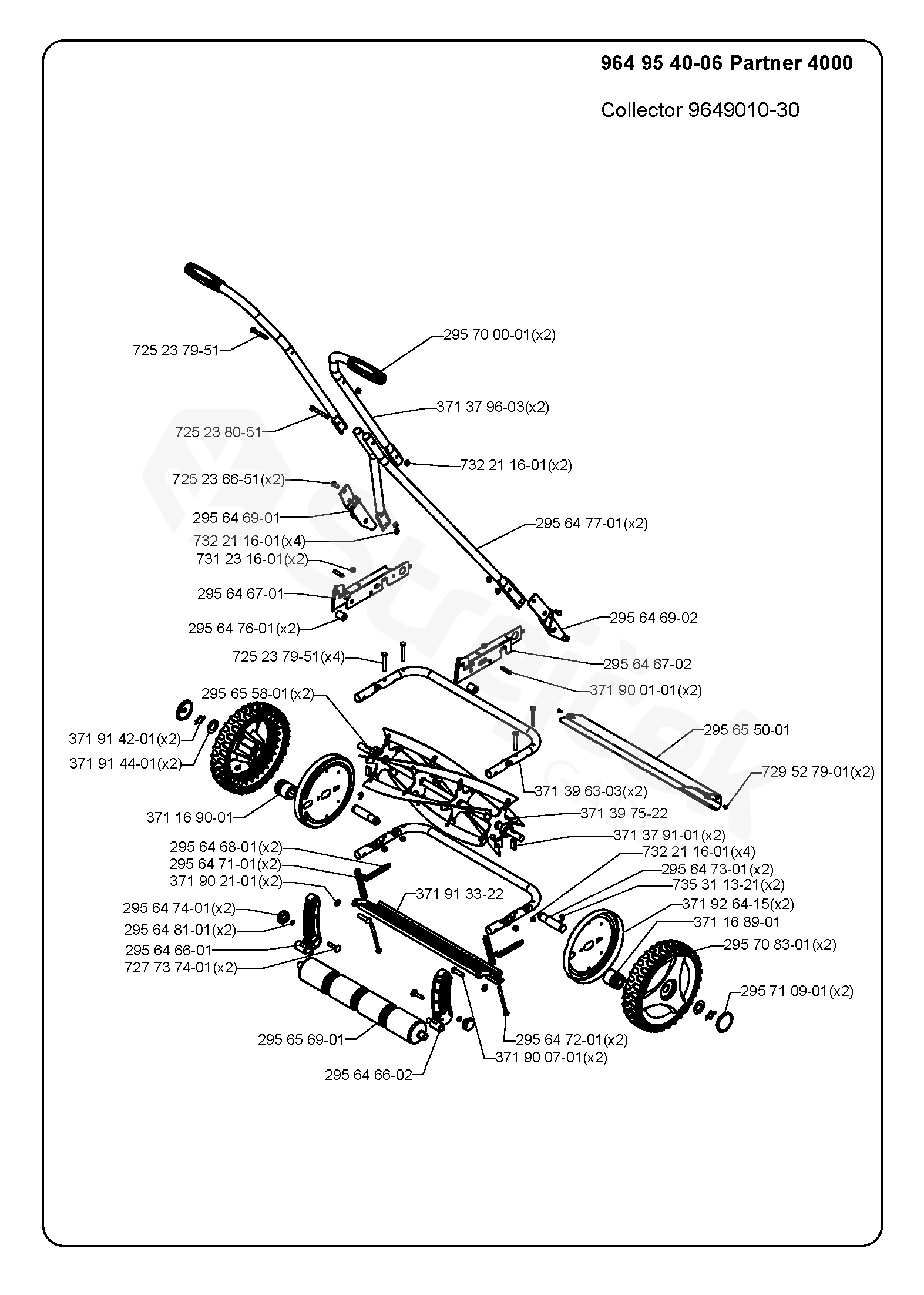

LAWN MOWERS: CONSUMER WALK-BEHINDS
>
4000 4000, 964954006, 2008-08
>
PRODUCT COMPLETE
Back to
4000
4000, 964954006, 2008-08
PRODUCT COMPLETE
4000
4000, 964954006, 2008-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
4000, 964954006, 2008-08
295646601
ROLL HOLDER LEFT
295646601
295646602
ROLL HOLDER RIGHT
295646602
295646701
BRACKET
295646701
295646702
BRACKET
295646702
295646801
TENSION SPRING
295646801
295646901
LINKAGE LEVER LEFT CPL.
295646901
295646902
LINKAGE LEVER RIGHT CPL.
295646902
295647101
SPRING
295647101
295647201
ADJUSTMENT SCREW
295647201
295647301
SHAFT
295647301
295647401
KNOB
295647401
295647601
SPACER
295647601
295647701
HANDLE
295647701
295648101
SLIDE DISC
295648101
295655001
PROTECTOR
295655001
295655801
BEARING
295655801
295656901
ROLLER
295656901
295700001
G-400520 SPARE PART
295700001
295708301
DRIVE WHEEL. CPL.
295708301
295710901
HUB CAP
295710901
371168901
PINION RIGHT
371168901
371169001
PINION LEFT
371169001
371379101
SLIDE LOCK
371379101
371379603
HANDLE
371379603
371396303
LOOP
371396303
371397522
MOWER BLADE
371397522
371900101
CLAMPING SLEEVE
371900101
371900701
BOLT
371900701
371902101
LOCKING DISC
371902101
371913322
BLADE
371913322
371914201
CLIP
371914201
371914401
DISC
371914401
371926415
SHIELD
371926415
725236651
HEXAGONAL SCREW M6X12
725236651
725237951
SCREW EHHM
725237951
725238051
SCREW EHHM
725238051
727737401
COACH BOLT M6X30
727737401
729527901
SCREW CRPANT
729527901
731231601
HEXAGON NUT
731231601
732211601
LOCK NUT
732211601
735311321
E-CLIP
735311321
