Spare parts > Partner > LAWN MOWERS: CONSUMER WALK-BEHINDS > 4546 Bio 4546 Bio, 964561203, 2009-06 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

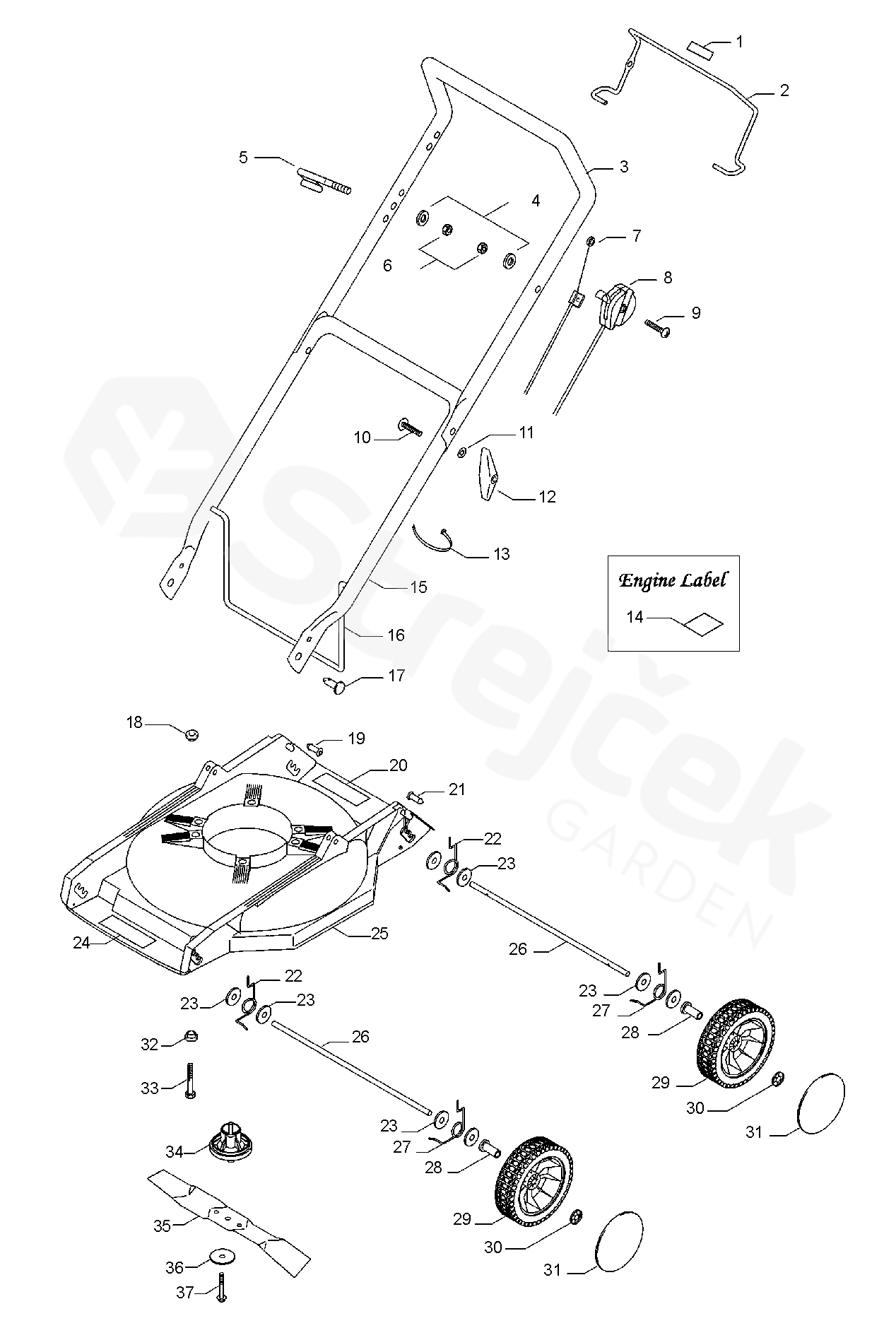

4546 Bio 4546 Bio, 964561203, 2009-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 4546 Bio, 964561203, 2009-06
1 DECAL 513953200
2 LOOP 511927567
3 HANDLE 512819103
4 WASHER 514026600
5 HOLDER 513076300
6 NUT 514718000
7 BRAKE CABLE 513110000
8 THROTTLE CABLE 513109900
9 SCREW EHHM 725238151
10 BOLT 514994501
11 WASHER 514026603
12 WING NUT 512793167
13 BAND 513084200
14 DECAL 513974800
15 HANDLE 516443411
16 HANDLE 512808200
17 BOLT 516843211
18 SPACING SLEEVE 513102600
19 HUB CAP 516849111
20 DECAL 513998700
21 HUB CAP 516852111
22 SPRING 513104500
23 WASHER 516442801
24 LABEL 513102700
25 DECK 510694069
26 SHAFT 513102800
27 SPRING 513104501
28 BUSHING 513906000
29 WHEEL 512828300
30 STARLOCK 514903100
31 HUB CAP 512799369
32 BUSH DECK INSULATOR 510770000
33 BOLT 514916700
34 ADAPTER 512794200
35 BLADE 516443800
36 WASHER 515796001
37 SCREW 515123930
