LAWN MOWERS: CONSUMER WALK-BEHINDS
>
P56-675SMDW P56-675SMDW, 96121000908, 2010-12
>

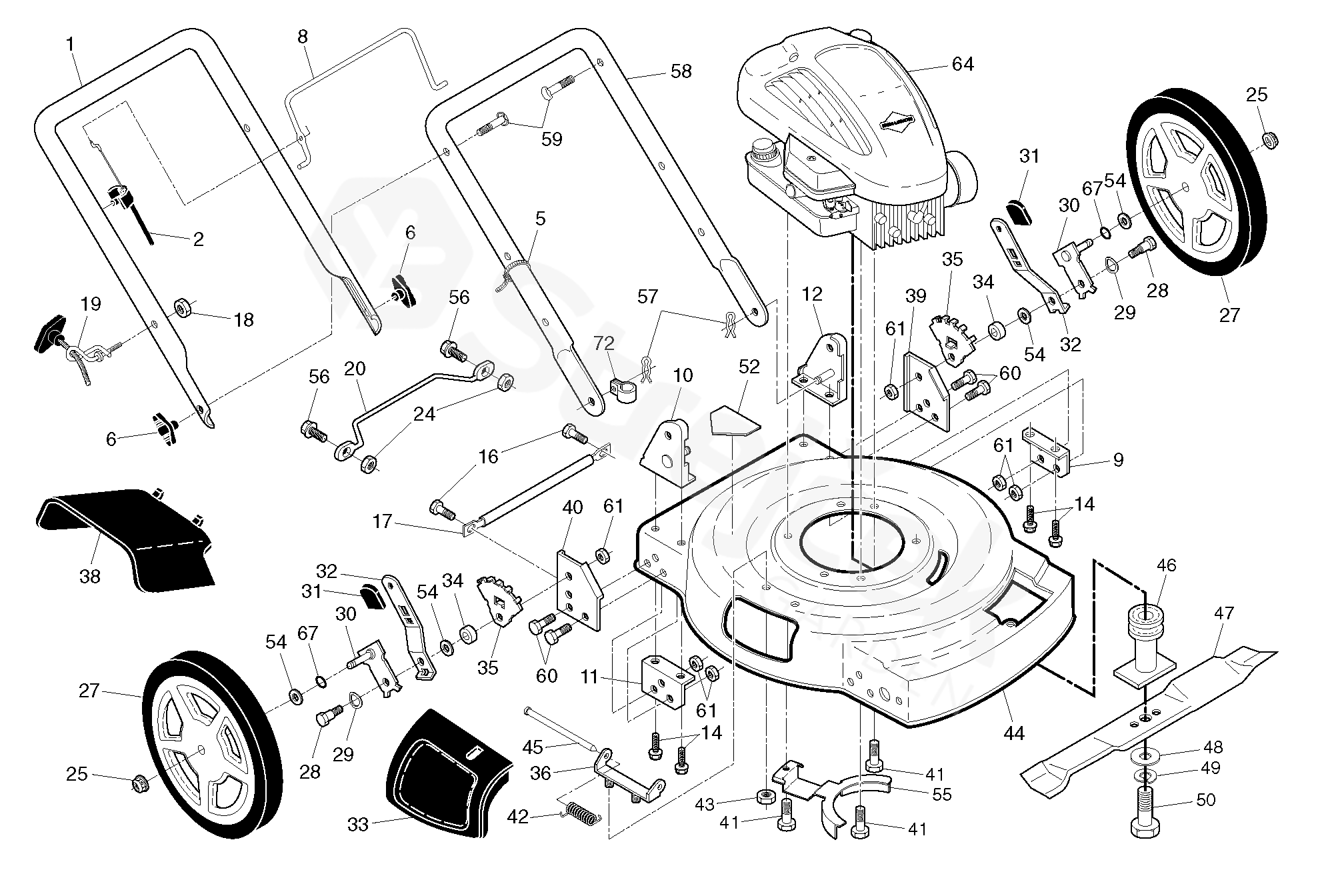

FRAME
Back to
P56-675SMDW
P56-675SMDW, 96121000908, 2010-12
FRAME
P56-675SMDW
P56-675SMDW, 96121000908, 2010-12
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
P56-675SMDW, 96121000908, 2010-12
1
HANDLE
532177698
2
CABLE
532183567
5
HOOP
532066426
6
KNOB
532191938
8
LOOP
532146771
9
BRACKET
LH
532195800
10
BRACKET
RH
532170975
11
BRACKET
RH
532195799
12
BRACKET
LH
532170977
14
SCREW
532149741
16
SCREW
817060410
17
SUPPORT ROD
532177141
18
MATICE
532132004
19
GUIDE
532194788
20
GUARD
532431995
24
NUT
532069180
25
NUT
532409149
27
WHEEL
532433118
28
BOLT
532174719
29
WASHER
532401630
30
AXLE
532406582
31
KNOB
532087877
32
SPRING
532406428
33
GUARD
532151889
34
SPACER
532401629
35
BRACKET
532410807
36
BRACKET
532154132
38
DEFL ECTOR, DISCHARGE
532176509
39
BRACKET
LH
532403382
40
BRACKET
RH
532403381
41
BOLT
532150406
42
SPRING
532152124
43
MATICE
873800400
44
HOUSING
532410012
45
ROD
532147286
46
ADAPTER
532421176
47
MOWER BLADE
532199379
48
PODLOŽKA
532851074
49
PODLOŽKA
532850263
50
SCREW
532851084
52
DECAL
532182166
54
PODLOŽKA
532088348
55
KEEPER
532429001
56
SCREW
871191012
57
PIN RETAINING SCREW
532051793
58
HANDLE
532155044
59
HANDLE BOLT
532191574
60
BOLT
874760612
61
MATICE
873930600
64
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
B&S 126T02-1229-EA FOR SERVICE & PARTS 1-800-233-3723
000000000
67
O-KROUŽEK
532197480
72
CLIP
532197991
DECALC."WARNING"
NOT SHOWN
532182134
