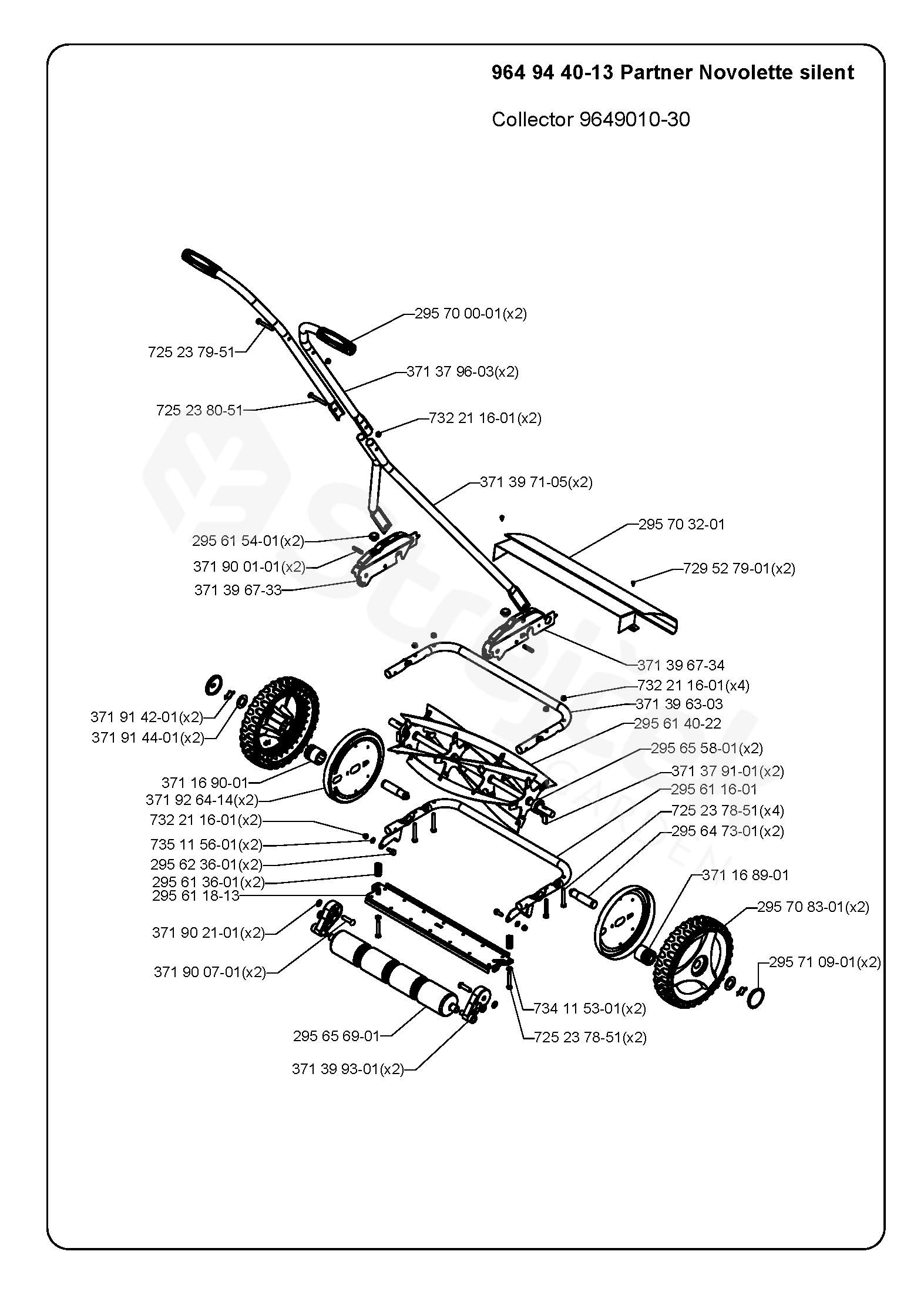

Novolette silent Novolette silent, 964944013, 2008-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Novolette silent, 964944013, 2008-08

295611601	LOOP	295611601
295611813	BLADE	295611813
295613601	SPRING	295613601
295614022	MOWER BLADE	295614022
295615401	PLUG	295615401
295623601	SCREW	295623601
295647301	SHAFT	295647301
295655801	BEARING	295655801
295656901	ROLLER	295656901
295700001	G-400520 SPARE PART	295700001
295703201	G-480560 SPARE PART	295703201
295708301	DRIVE WHEEL. CPL.	295708301
295710901	HUB CAP	295710901
371168901	PINION RIGHT	371168901
371169001	PINION LEFT	371169001
371379101	SLIDE LOCK	371379101
371379603	HANDLE	371379603
371396303	LOOP	371396303
371396733	BRACKET	371396733
371396734	BRACKET	371396734
371397105	HANDLE	371397105
371399301	ROLLER HOLDER	371399301
371900101	CLAMPING SLEEVE	371900101
371900701	BOLT	371900701
371902101	LOCKING DISC	371902101
371914201	CLIP	371914201
371914401	DISC	371914401
371926414	PROTECTOR	371926414
725237851	SCREW EHHM	725237851
725237951	SCREW EHHM	725237951
725238051	SCREW EHHM	725238051
729527901	SCREW CRPANT	729527901
732211601	LOCK NUT	732211601
734115301	WASHER	734115301
735115601	WASHER	735115601
